SECTION 7
HIGH PRESSURE WATER
Nov 2002
p. 7-17
05126826
7.3.4 HP Cylinder
1. At a workbench, use the seal removal tool to prevent scratching the
cylinder bore sealing surface. Use a pulling action to remove the sealing
head HP seal.
2. Remove the bore liner. Use a plastic-faced hammer and the seal removal
tool to drive out the plunger HP seal and follower. Be careful not to
scratch the bore of the cylinder or damage the cylinder threads.
3. Clean sealing areas of HP cylinder inside diameter and inspect cylinder
for rings, scratches, pits, residue build-up and other potential leak
paths. Seal material or residue can build up forming a ring, and running
a fingernail across it, will cause it to appear as a surface flaw. It is
usually necessary to clean the area before performing an inspection.
4. Use 600 grit wet/dry sandpaper to polish HP cylinder inside diameter
where the seal will locate. Polish only in a circumferential motion. Do
not polish or drag the sandpaper along the length of the cylinder. Hold
the sandpaper on the end of your finger, and move in a cylindrical wiping
motion in the bore of the HP cylinder. Wipe residue from cylinder inside
diameter and re-inspect for surface defects.
NOTE
The HP cylinder ends often show a “step” between inner and outer sleeves
where the inner sleeve extends beyond the outer by a small amount. This is
normal and does not indicate a flaw in the cylinder.

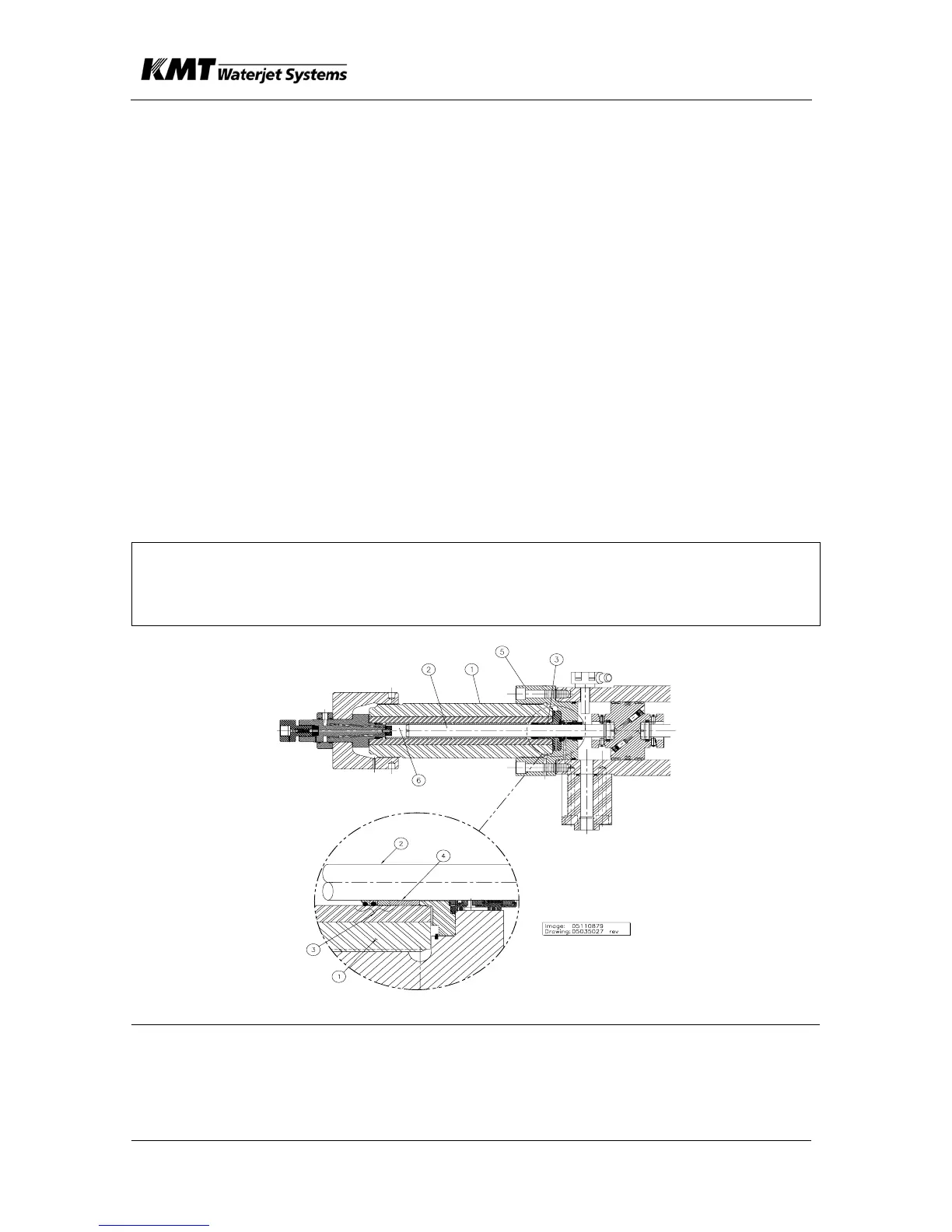

Item Description
(1) Cylinder Body (5) Cylinder Head
(2) Plunger (6) Liner
(3) Plunger Seal Follower
