SECTION 3

OPERATION

July 2003

p 3-10

05132519

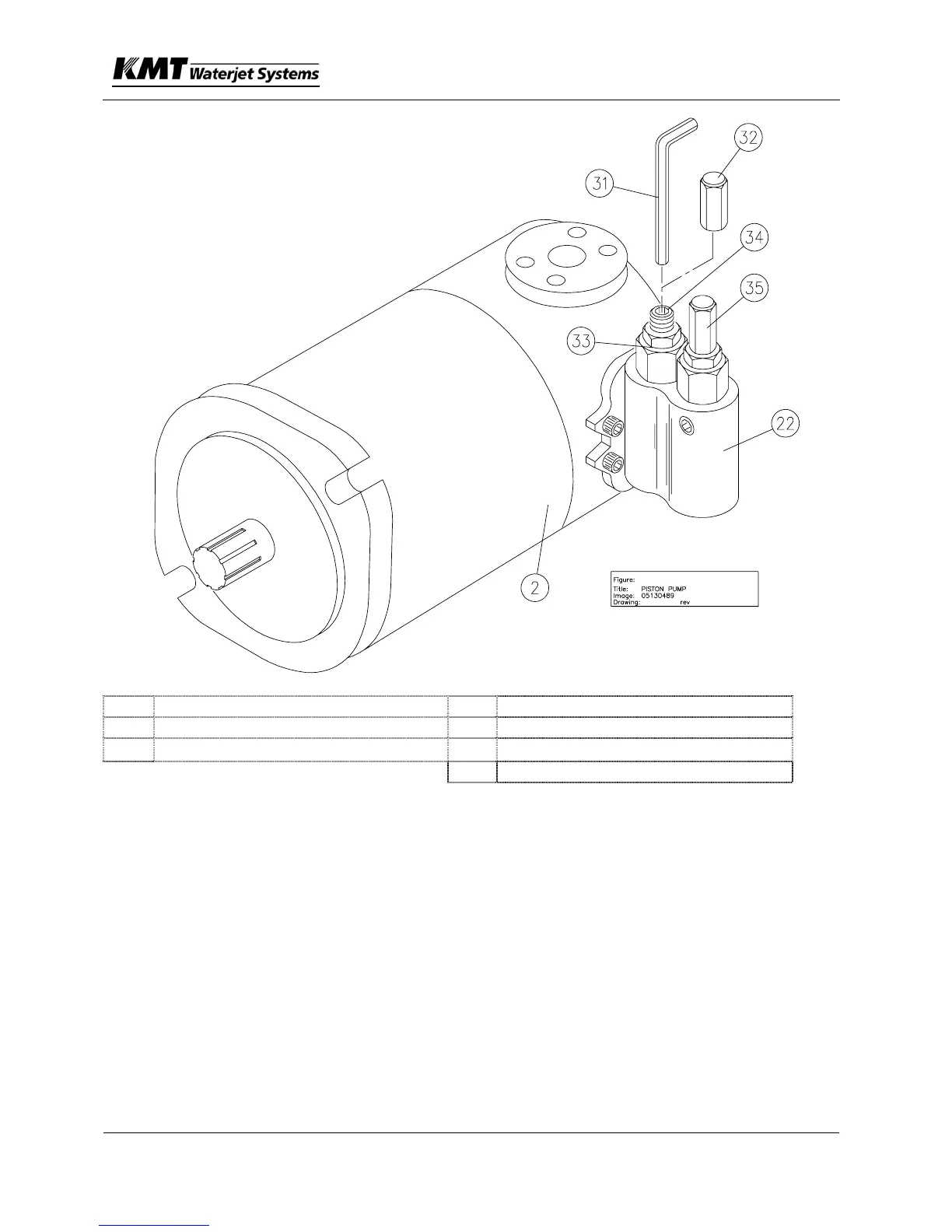

2 Piston Pump 32 Cap Nut

22 Compensator 33 Jam Nut

31 Allen Wrench (3mm) 34 Adjustment Screw

35 Outer Adjustment Screw

3.3.4 Hydraulic Pump Pressure Compensator Adjustment Procedure

 Locate hydraulic pump compensator adjustment screw

 Note that main adjustment screw is INBOARD, while outboard adjustment

screw is used for pump internal case drain pressure.

 Use a 3mm Allen wrench to increase (clockwise) or decrease (counter-

clockwise) pump compensator pressure.

 View a HP water pressure gage while adjusting the pump compensator.

 Increase pressure slowly, while the pump is supplying HP water to a nozzle

orifice.

 Verify the static HP water setting by blocking flow to the HP water nozzle(s)

either with the electrically- operated shutoff valve or by closing a suitable

hand- operated shutoff valve.
