KMT Streamline SL-IV User Manual

SECTION 9
HYDRAULIC SYSTEM
Nov 2002
p. 9-2
05130471
• Pressure adjustment control – allows for infinite pressure settings
though out the entire pressure range for flexibility.

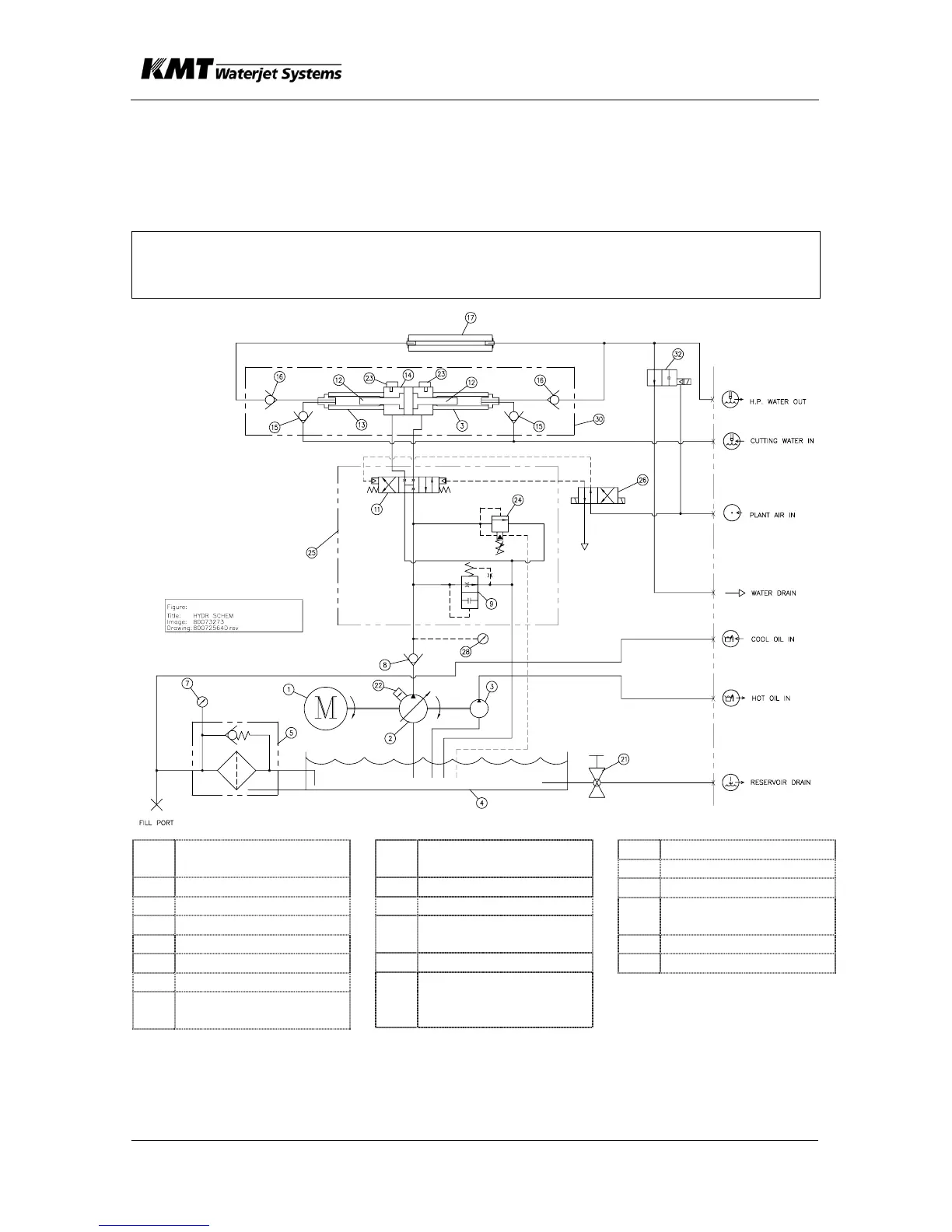

9.1.2 Components
Following are the hydraulic system components:
NOTE
The main pump is direct-mounted to the motor. The main pump pressure
control is adjusted at the pump compensator.
1 Electric Motor, 15
hp
2 Piston Pump
3 Gear Pump
4 Hydraulic Reservoir
5 Filter Housing
7 Pressure Gage
8 Check Valve
9 Unloading Valve--
Startup
11 Hyd Directional
Control Valve
12 Plunger
13 HP Cylinder
14 Hyd Cylinder-
Intensifier
17 HP Attenuator
22 Pressure
Compensator
Control
23 Proximity Switch
24 Main Relief Valve
25 Hydraulic Manifold
26 Solenoid Valve,
Pneumatic
28 Pressure Gage
30 Intensifier Assembly
