SECTION 3
OPERATION
July 2003
p 3-3
05132519

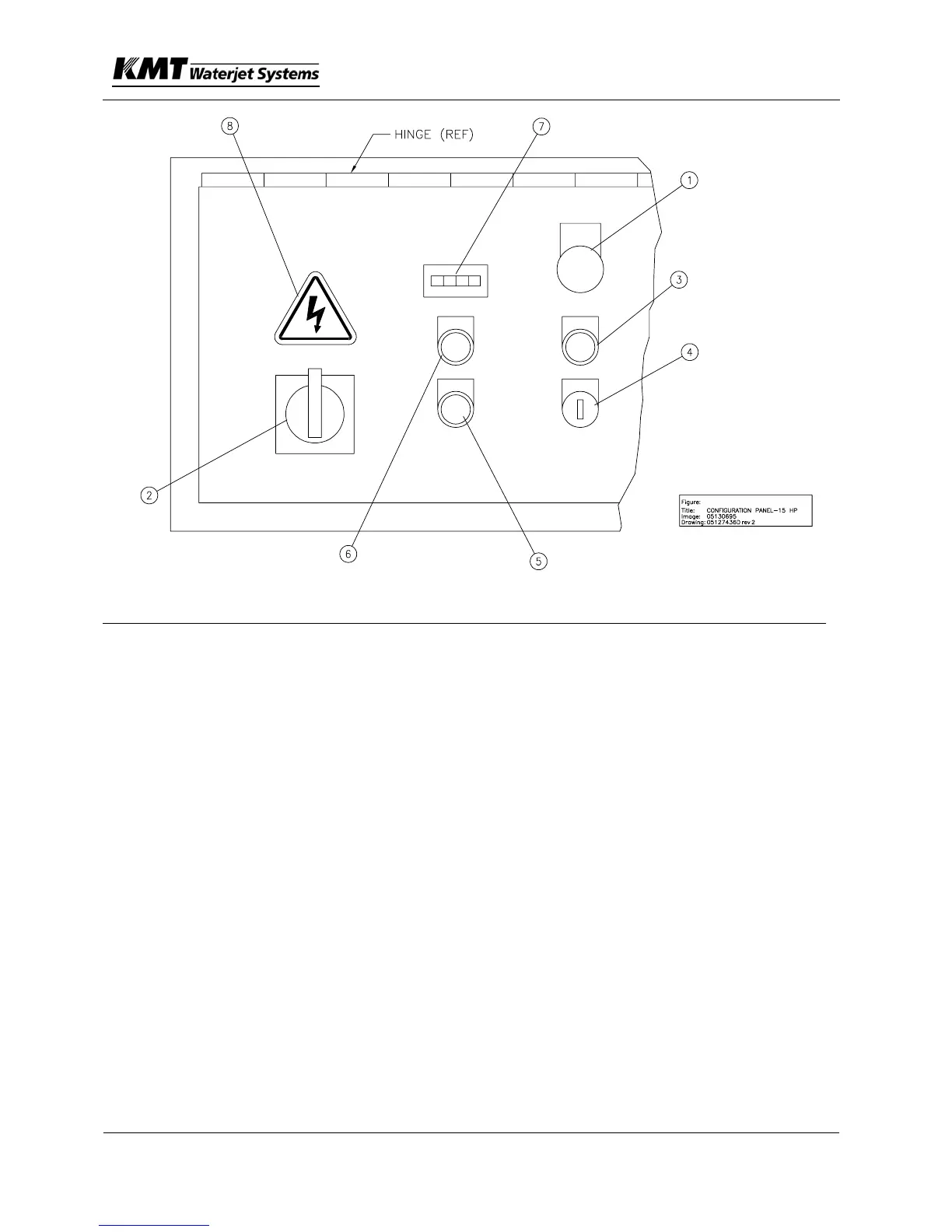

Item Description
1 Palmbutton – Emergency Stop
2 Handle – Electrical Disconnect
3 Pushbutton – (Control Power On—White Light)
4 Selector Switch-Local/Remote Control
5 Pushbutton – (Stop Pump/ Fault--Red Light)
6 Pushbutton – (Start Pump--Green Light)
7 Hourmeter
8 Decal—Shock Hazard
