SECTION 7

HIGH PRESSURE WATER

Nov 2002

p. 7-11

05126826

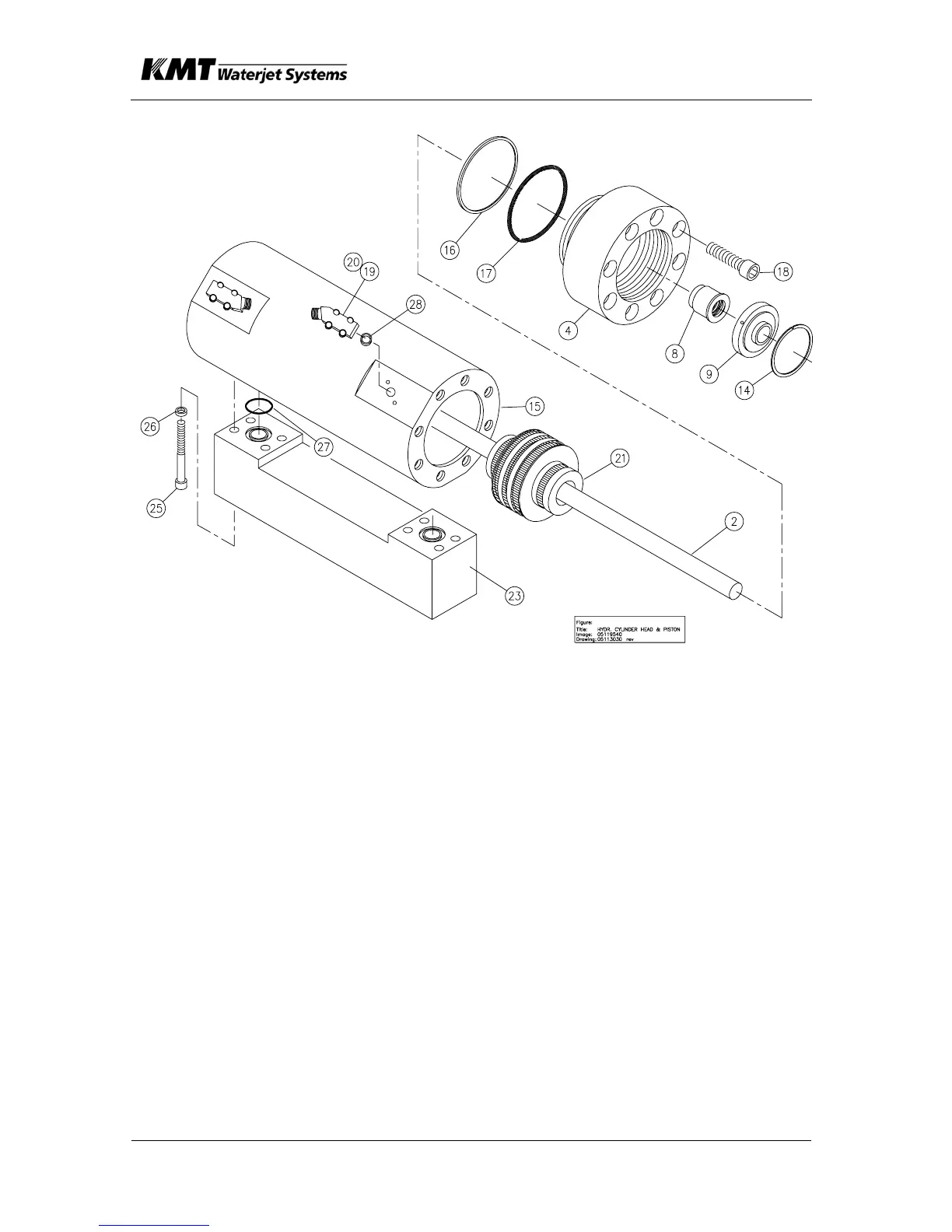

Item Description

(2) Plunger (4) Cylinder Head

(8) Hyd Cartridge, Plunger Seal Assy (9) Bushing Retainer Flange

(14) Retaining Ring (15) Hydraulic Cylinder

(16) O-ring (17) Backup Ring

(18) Cap Screw (19) Proximity Switch

(20) Cap Screw (21) Hyd Piston Assy

(23) Manifold (25) Cap Screw

(26) Lockwasher (27) O-ring

(28) Spacer
