SECTION 9
HYDRAULIC SYSTEM
Dec 2002
p. 9-5

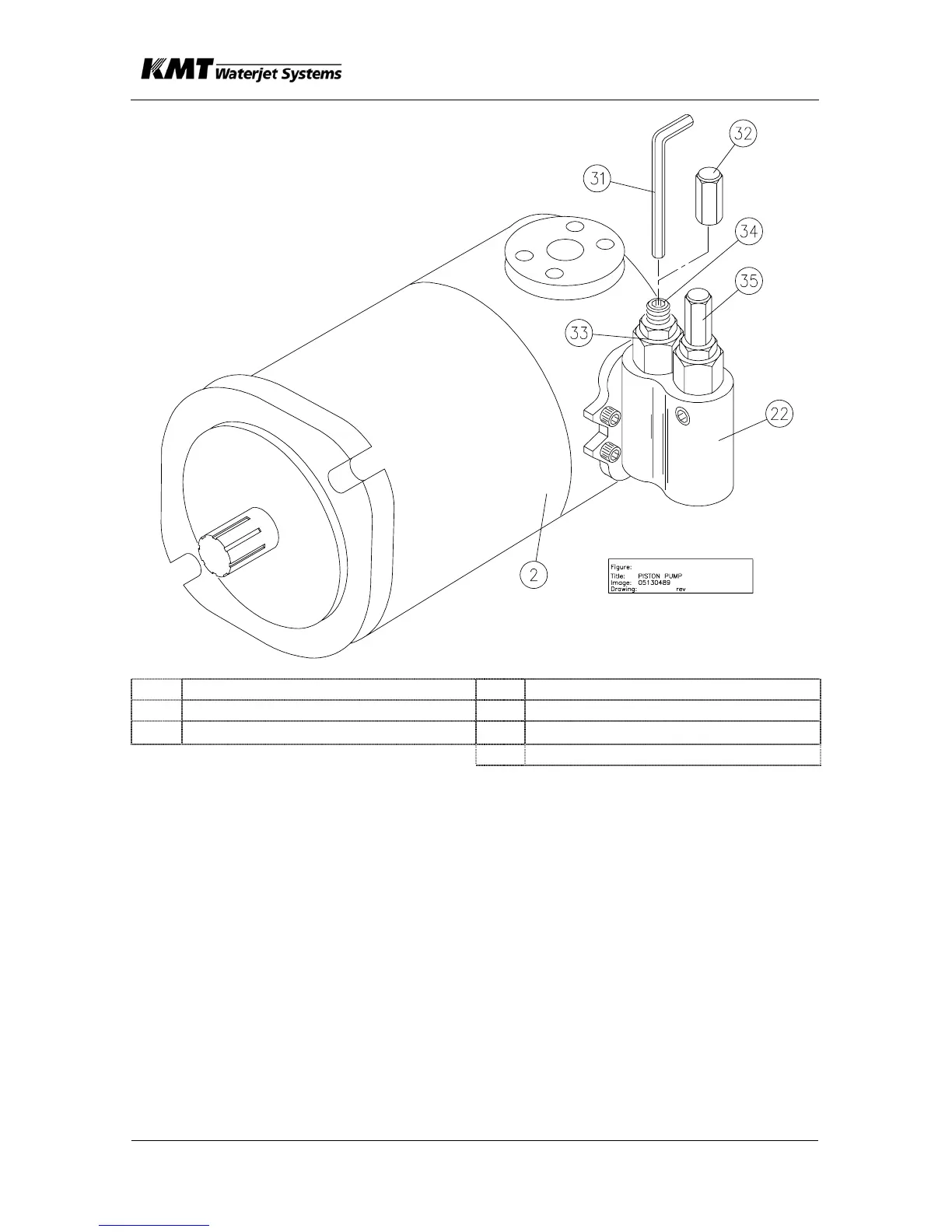

05130471
2 Piston Pump 32 Cap Nut
22 Compensator 33 Jam Nut
31 Allen Wrench (3mm) 34 Adjustment Screw
35 Outer Adjustment Screw
The hydraulic system components that require periodic maintenance are
the motor and the pump compensator. The motor needs to be serviced
every 5000 hours of use. The operating pressure settings of the manifold
need to be checked daily and adjusted if necessary.
Recommended Tools: Manual Grease Gun
Open End Wrench 14mm (9/16”)
Rags
Parts: Bearing Grease, SRI #2 or equivalent
