SECTION 10

RECIRCULATION SYSTEM

Jan 2003

p. 10-4

05130497

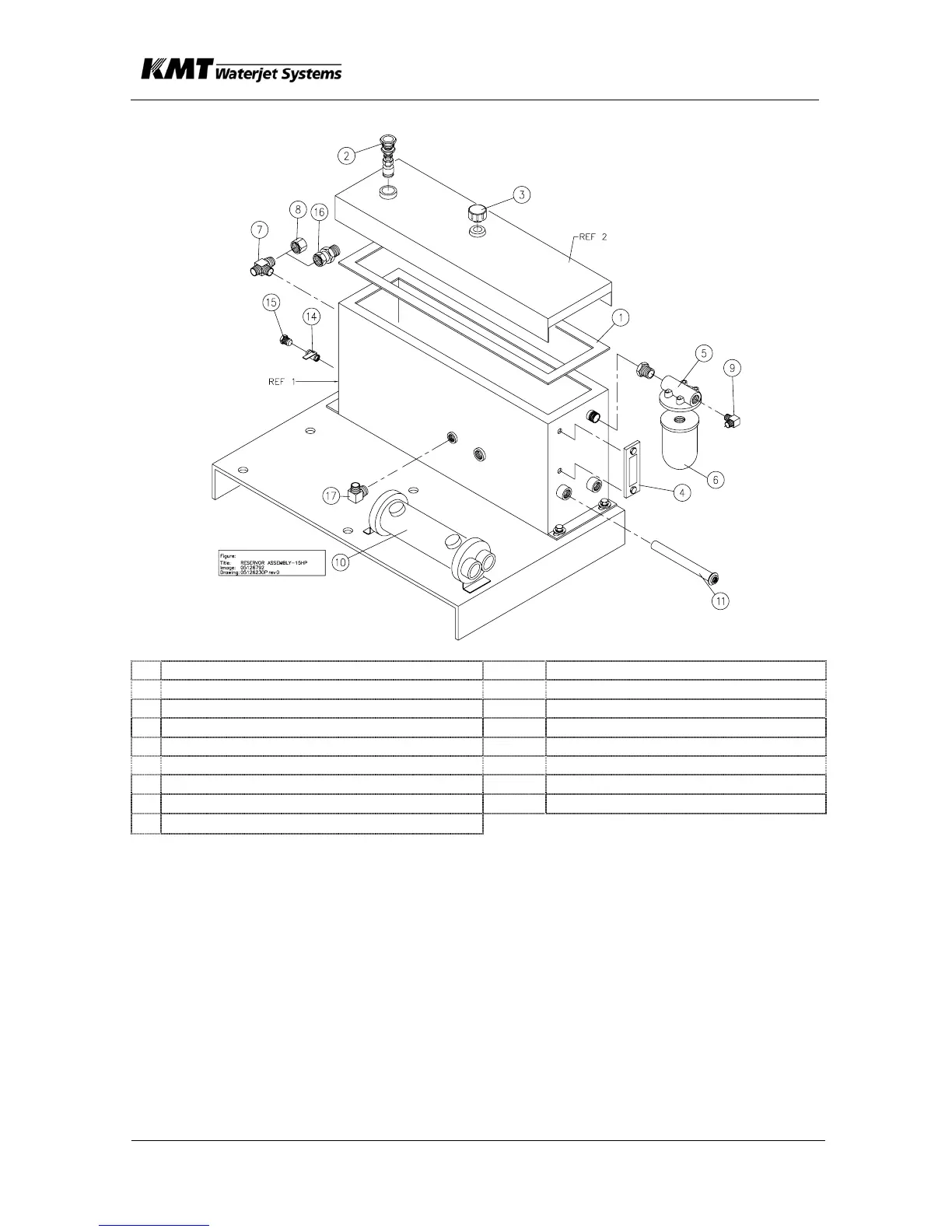

1 Gasket, Hydraulic Reservoir Cover 10 Heat Exchanger

2 Sensor, Oil Temperature and Low Level 11 Well, Temperature Sensor Bulb

3 Breather, Air 14 Drain Valve

4 Sight Gage (with thermometer) 15 Plug

5 Filter Head 16 Adapter, Fill Port

6 Filter Element 17 Elbow

7 Tee Fitting, Fill Port Ref. 1 Reservoir Tank

8 Cap, Fill Port Ref. 2 Reservoir Cover

9 Elbow

Oil Reservoir

The oil reservoir is equipped with the following:

• Visual temperature and level indicator

• Air breather and filter that prevents dirt from being sucked into the

reservoir whenever the oil level drops, then allows air to escape when

the level rises

• Drain valve, and

• Fill components.

The fill components consists of the Oil Filter Head, Fill Port, and the Fill

Port Cap.
