KMW 1220 - PARKING STAND PROCEDURES; Positioning Parking Stands

36

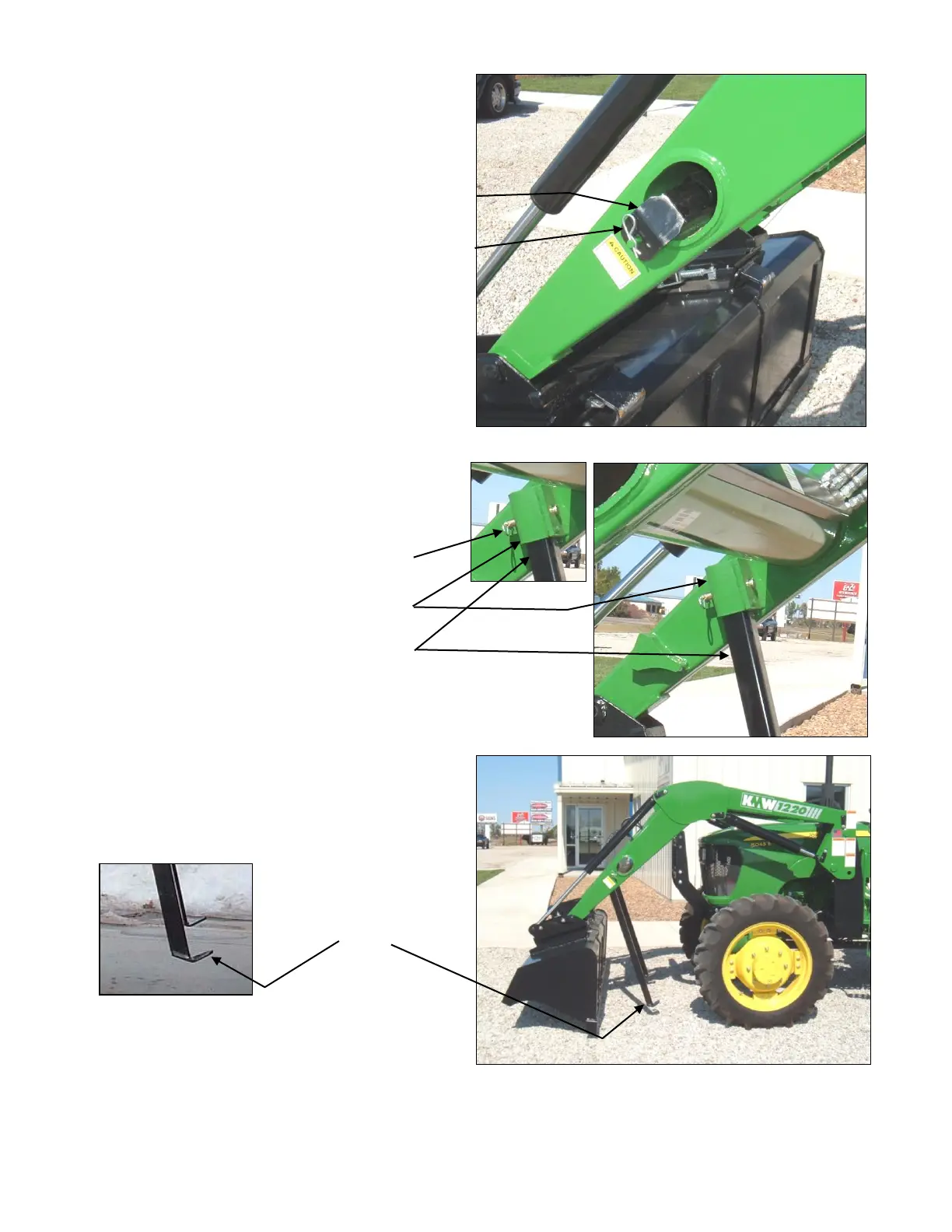

10.1.4. Remove parking stands from storage positions
in the boom crosstubes. Return hairpin cotters to
storage positions.
Parking Stand
in Storage Position
Hairpin Cotter
in Storage Position
10.1.5. Position parking stands in attaching brackets
on inside of each boom arm. Secure using clevis pins
and hairpin cotters.
Clevis Pin and Hairpin Cotter
in Park Position.
Attaching Bracket.
Parking Stand
in Park Position.
10.1.6. Make sure long end of parking stand is located
toward rear end of tractor. Photo shows parking
stands in park position and loader ready to be
dismounted.
Parking Stands in
Park Position
with long end of stands
positioned rearward
