A-61316 September 2004 5-3
Replacing the
projection lamp
Use the following procedure to replace the projection lamp whenever a
reduction in brightness on the screen is detected or the lamp burns out.
If the projection lamp burns out during a print operation, the L2 code will
appear and the print job will stop. A blank piece of paper may be output
depending upon the stage of the job. Once the system detects the
projection lamp has burnt out, the scan job will be cancelled. If the system
is operating in the Cycle Print mode, the scanning operation will stop.
WARNING: Do not touch the projection lamp with your bare hand
immediately after the machine has been turned off. Allow
sufficient time (30 minutes is recommended) for the bulb
to cool BEFORE attempting to change the lamp.
1. Turn the scanner off and unplug the power cord.

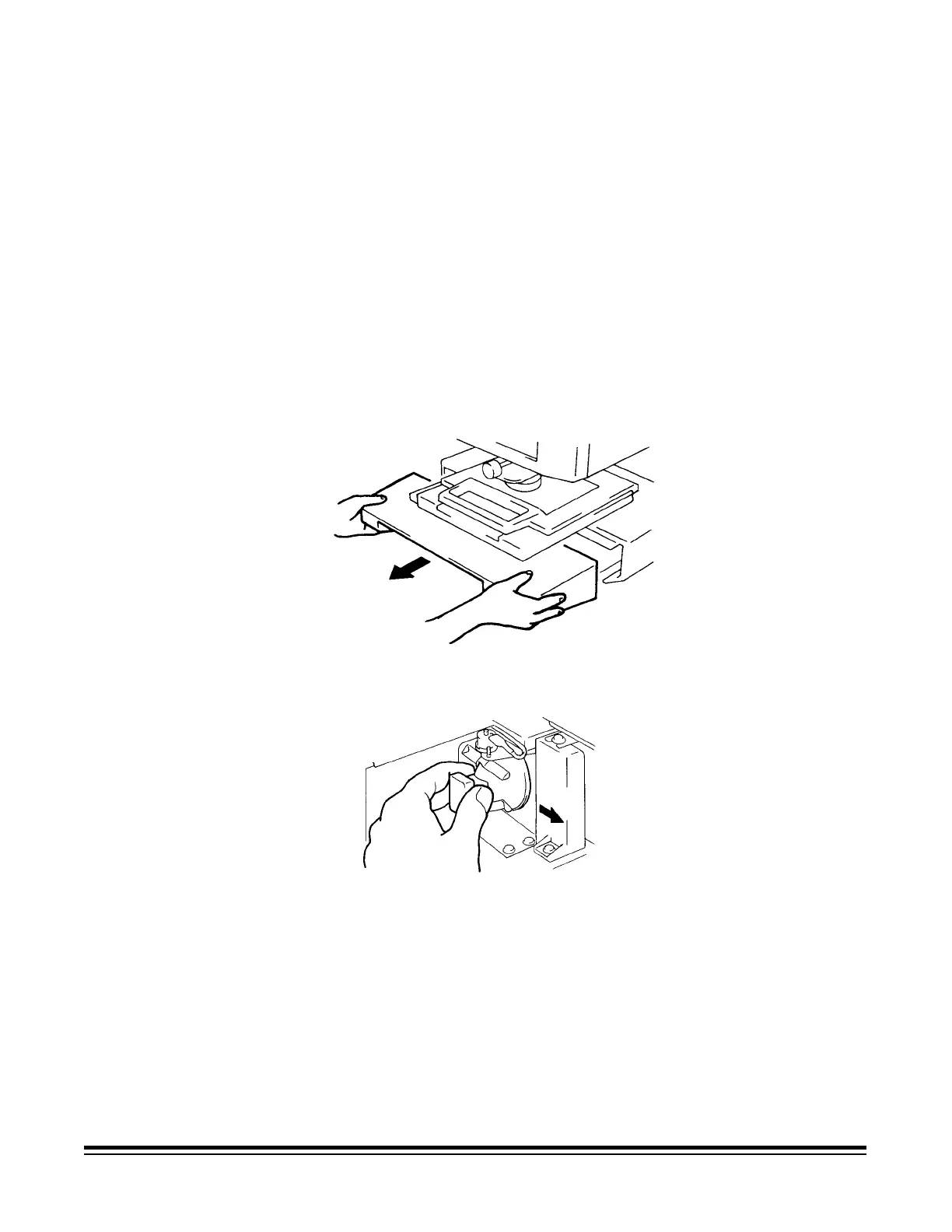

2. Slide the projection unit out of the scanner.
3. Remove the projection lamp from the lamp holder.
To Next Page
