A-61635 December 2010 4-87

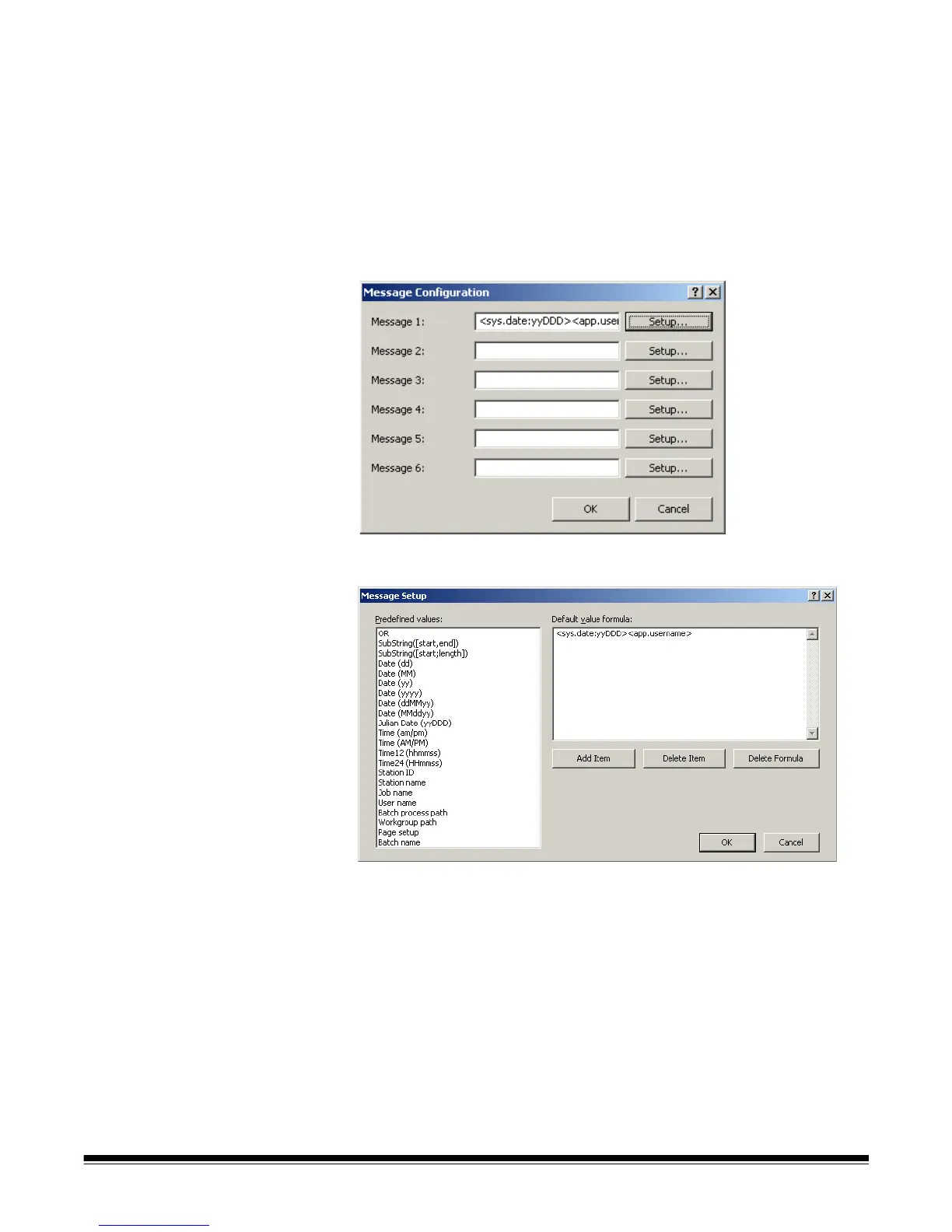

Message Configuration — displays the Message Configuration dialog box.
This dialog box allows you to specify custom text to be included in your print
string. A maximum of 20 characters is allowed. You can have up to six unique
messages per string. The Printer option in the TWAIN Datasource must be
enabled and configured before configuring custom messages in Kodak
Capture Pro Software.
NOTE: The printer configuration that you set up in Capture Pro Software will
override any printer configuration setup in the TWAIN Datasource.
1. Click Message Configuration. The Message Configuration dialog box will
be displayed.
2. Click Setup for each message you want to configure. The Message Setup
dialog box will be displayed
3. Select a value from the Predefined values list and click Add Item.
4. Click OK when finished.
NOTE: Click Delete Item to remove the last value in the formula, or Delete
Formula to delete the entire formula.
