A-61635 December 2010 6-9
Scanning an image
for bar code setup
Kodak Capture Pro Software allows you to separate pages and documents on
your scanner with pages containing bar codes. It also allows you to create
attachments to your documents using these bar code separators.
Before you can use bar codes as separators, you must:
• Scan an image containing the bar codes into Capture Pro Software.
• Draw and select the bar code zones.
• Set up your job for bar code zone separation.
Kodak Capture Pro Software allows you to scan bar code images directly into
the Bar Code window for viewing, defining, and editing.
1. Select File>Job Setup. The Job Setup dialog box will be displayed.
2. Select a job setup from the Job Name drop-down list.

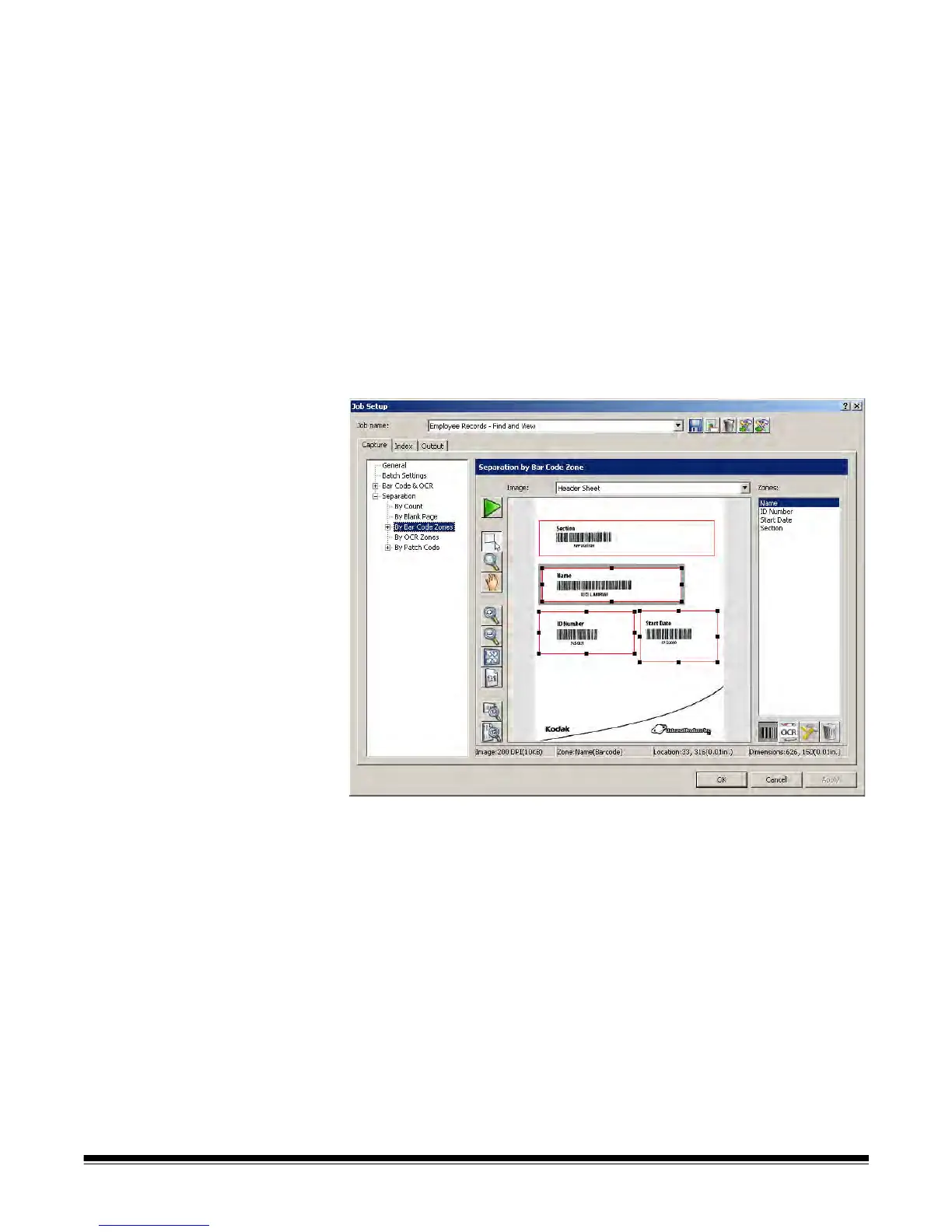

3. Open the Capture tab and select Separation>By Bar Code Zones. The
Bar Code window will be displayed.
4. Select the green Start/Scan button. The Scan Image dialog box will be
displayed.
