INSTALLATION INSTRUCTIONS Installation
10MAR06
II4825-1
Page
10 of 72
Important
Keep the REAR SHIPPING BRACKET.

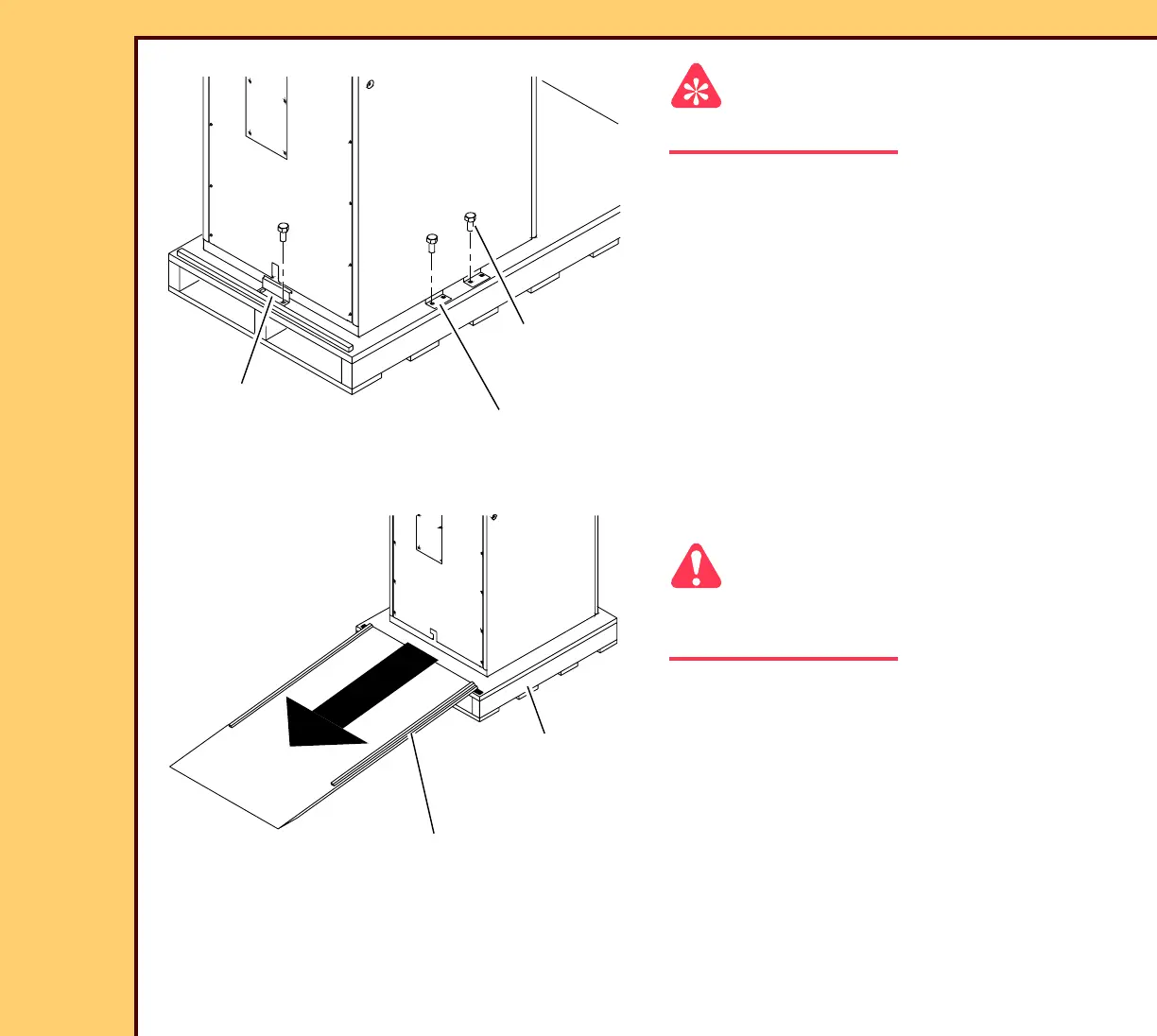

15 Remove and keep:
• 10 BOLTS
• 4 SIDE SHIPPING BRACKETS
• REAR SHIPPING BRACKET
16 Fasten the RAMP to the PALLET.
Caution
The weight is 308 kg (680 lb). Use more
than one person to move down the RAMP.
17 Carefully move the system down the
RAMP.
H194_0119AC
H194_0119ACA
BRACKET
REAR SHIPPING
BRACKETS
4 SIDE SHIPPING
10 BOLTS
H194_0120AC
PALLET
H194_0120ACA
RAMP
