INSTALLATION INSTRUCTIONS Installation
10MAR06
II4825-1
Page
11 of 72

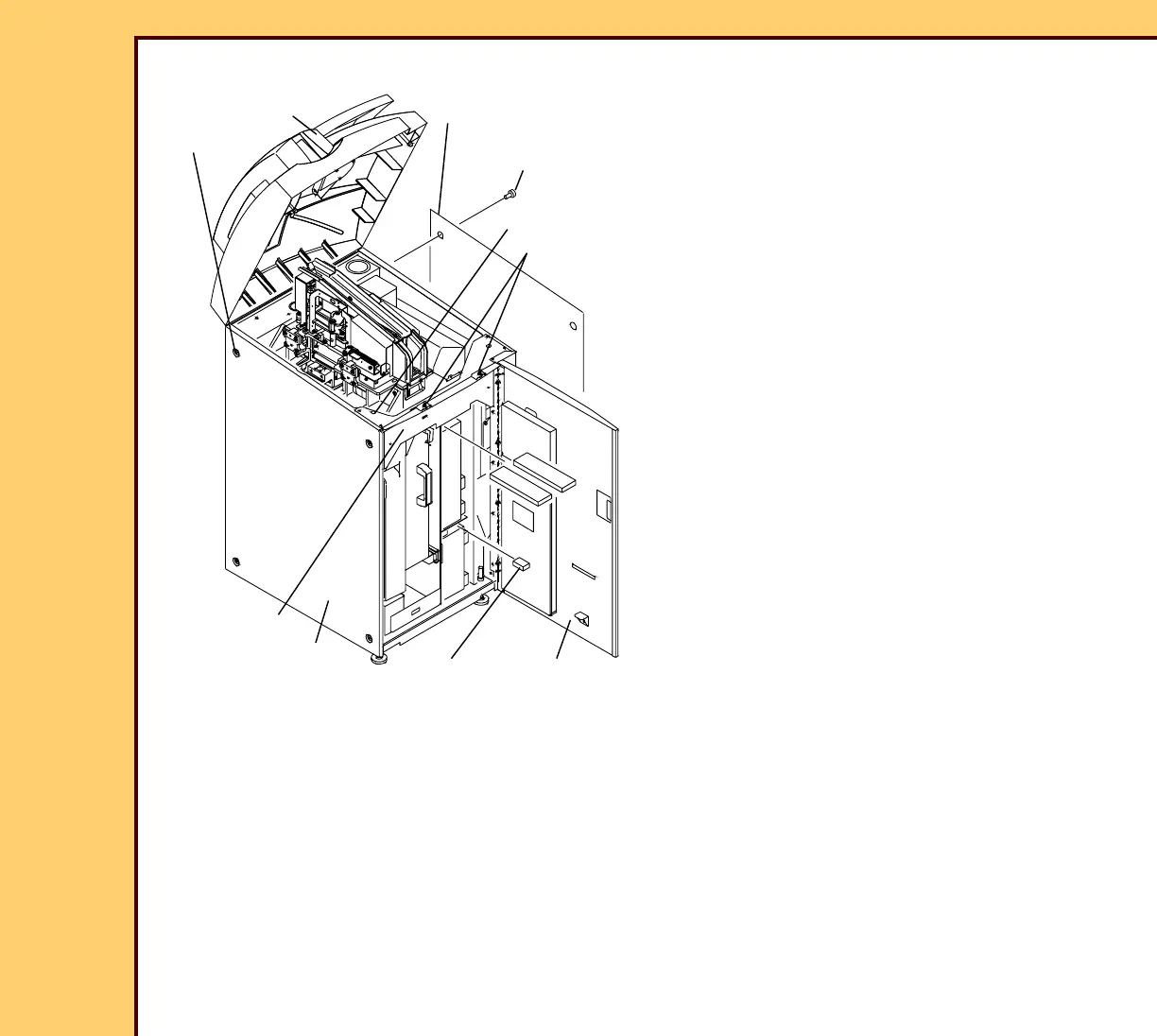

18 Open the FRONT DOOR.
19 Loosen the 2 SCREWS.
20 Open the TOP COVER.
21 Remove:
• FOAM PACKING MATERIAL
• 7 SCREWS
• CROSSBRACE
• 2 SCREWS
• LEFT PANEL
• 2 SCREWS
• RIGHT PANEL
H194_0101GC
H194_0101GCA
RIGHT
2 SCREWS
LEFT PANEL
MATERIAL
FOAM PACKING
DOOR
FRONT
2 SCREWS
TOP COVER
7 SCREWS
CROSSBRACE
PANEL
2 SCREWS
