INSTALLATION INSTRUCTIONS Installation
10MAR06
II4825-1
Page
25 of 72
6 Remove the optional MODEM from the
carton.
7 Check that the MODEM DIP
SWITCHES on the back of the MODEM
are set correctly. If necessary, change
the settings.
8 Connect to the MODEM:
• POWER ADAPTER
• telephone line
• RS-232 CABLE
9 Connect the RS-232 CABLE to the
COM 2 connection on the computer.
Caution
Dangerous Voltage
10 Connect:
• POWER ADAPTER to the power
source
• telephone line
11 Energize the MODEM.
12 Have the TSC make a call to the
telephone number on the MODEM to
check the connection.
13 Install:
• 8 SCREWS
• REAR ACCESS PANEL
H194_0127AC

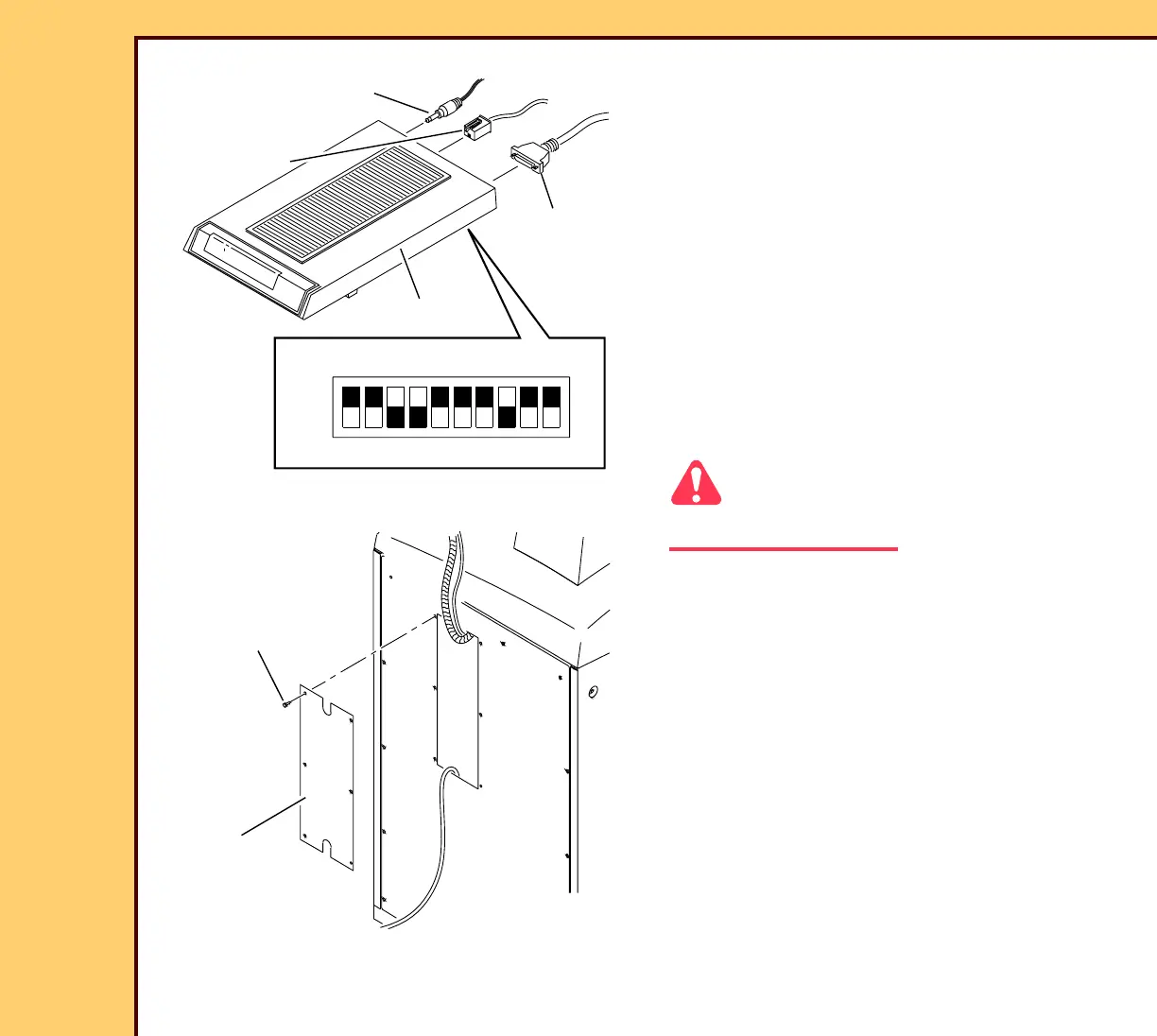

MODEM DIP SWITCHES
12345678910
OFF
ON
optional MODEM
telephone line
POWER ADAPTER
RS-232
CABLE
H194_0127ACA
H194_0132AC
8 SCREWS
PANEL
ACCESS
REAR
H194_0132ACA
