CVS-841/851 Chapter 3
Specifications
Input power: CVS-841: 45 W Max CVS-851: 70W Max
AC operation
An AC/DC rectifier P
S-006 must be used.
Input voltage range: 100/
110 VAC or 220/ 230 VAC
Voltage fluctuation allowance:
+/- 10%
Frequency fluctuation allowance:
47 - 63 Hz
Input power: 150 W
3.3 Environmental conditions
(1) Temperature and humidity
Operation temperature:
-15
o
C to +55
o
C
Storage temperature: -30
o
C to +70
o
C
Humidity: 93 +/- 3 % @+40
o
C
(2) Vibration
The units are free from any functional deterioration or mechanical damage caused by the vibrating conditions
stated below:
2 - 5 Hz up to 13.2 Hz: Amplitude +/- 1mm +/- 10% (Maximum acceleration of 7 m/s
2
at 13.2 Hz)
(3) Water proof characteristic
Display: IPX5 (Water jet proof)
3.4 External dimensions and weight
External dimensions: Width x Hight x Depth
CVS-841: 320 (12 5/8) x 340 (13 3/8) x 138 (5 7/16) mm (inch), 6.8 kg (15 lbs)
CVS-851: 390 (15 3/8) x 430 (16 15/16) x 173 (6 13/16) mm, 10.5 kg (23.0 lbs)
Unit in mm (inch)
Weight: 6.8 kg (15 lb)

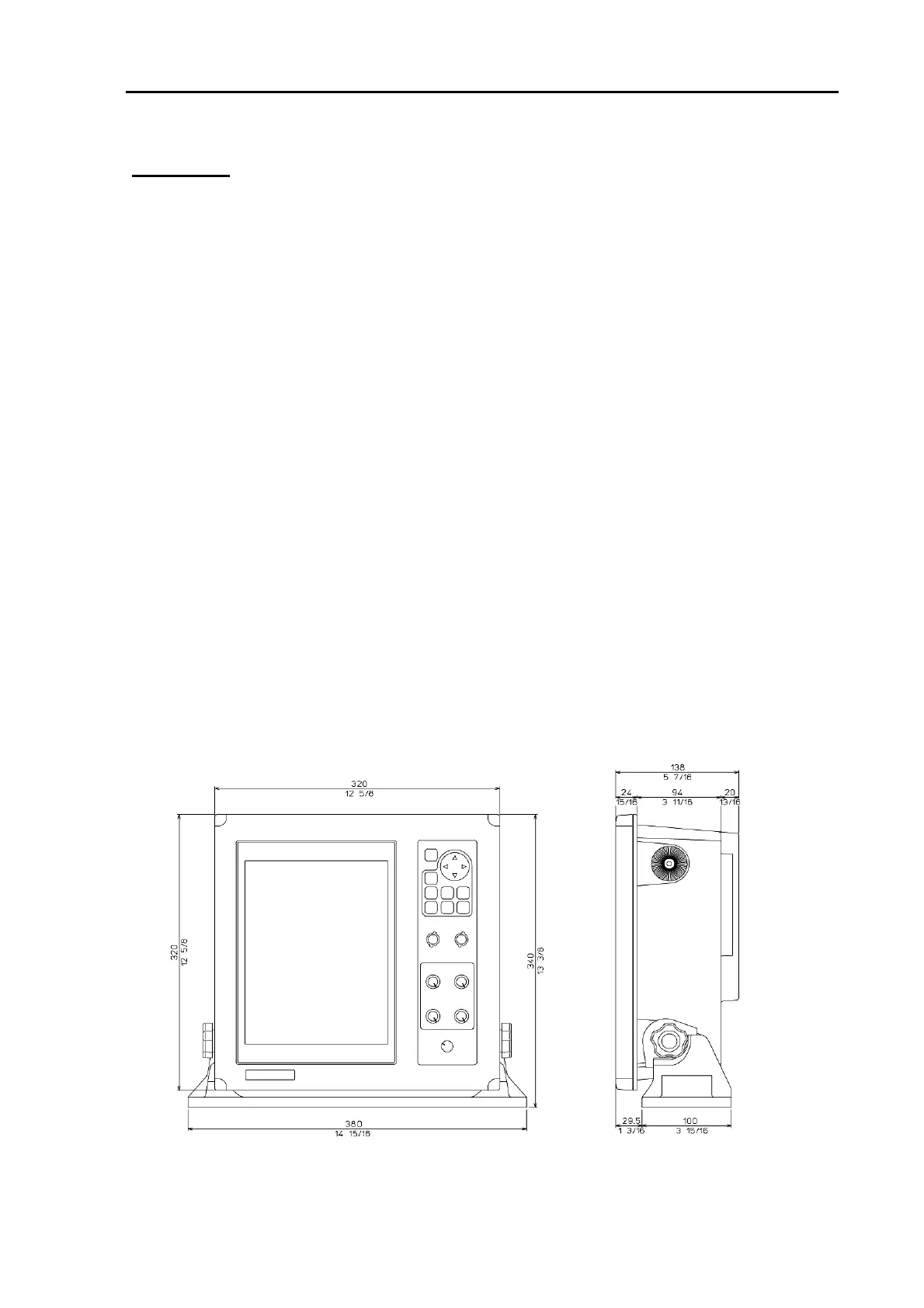

Figure 3.1 External dimension of CVS-841 Display unit
93132682-01 3-3
