Koden CVS-841 - Preparation of DC Power Cable; Preparation of TD Cable

CVS-841/851 Chapter 4
Installation
93132682-03 4-7

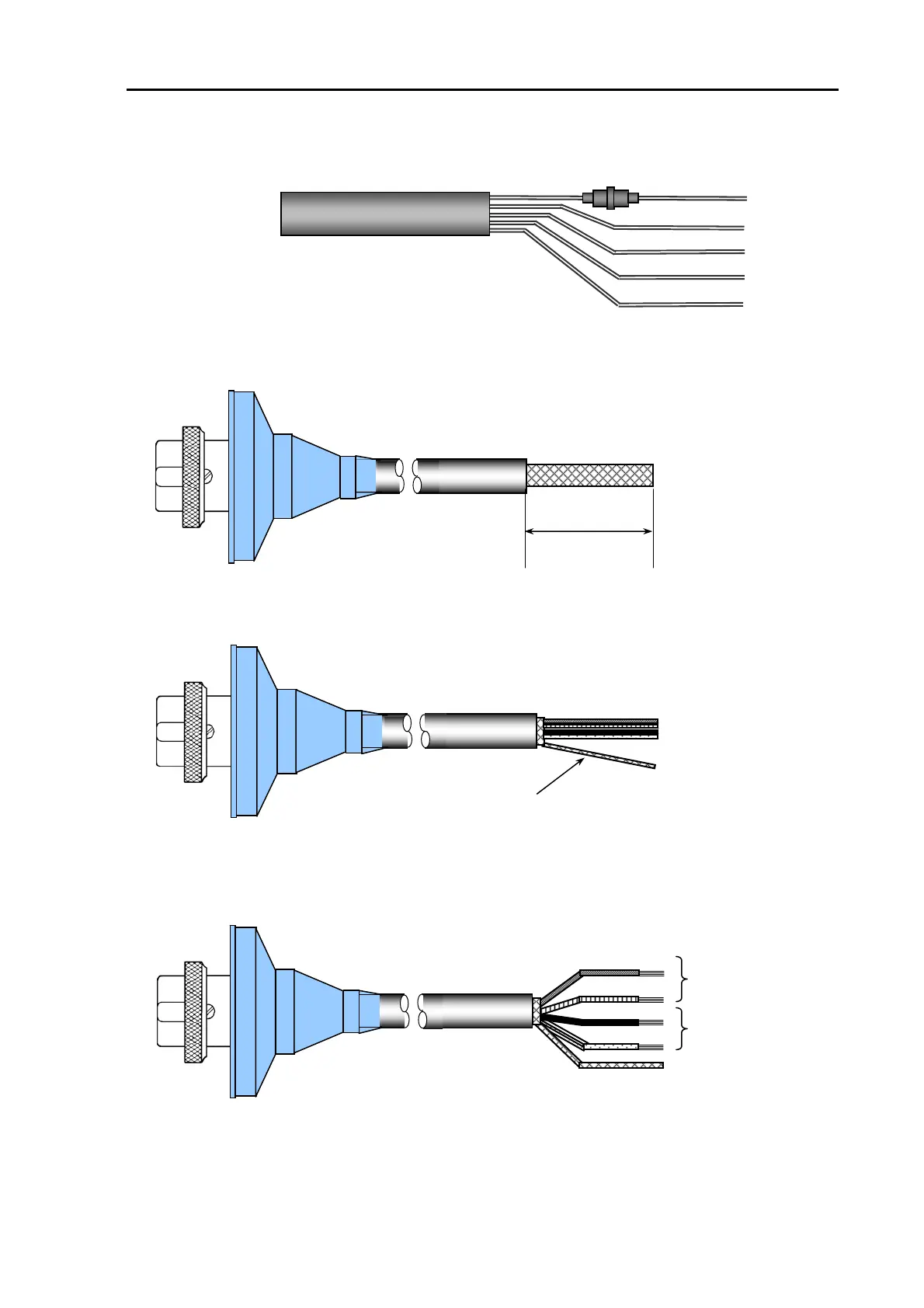

4.7.1 Preparation of DC Power cable
NOTE: Insulate the red and green wires using PVC tape.
White
Black
Gray
Red
Green
To Display Unit
DC+
DC -
GND
Not used
Not used
4.7.2 Preparation of TD cable
(1) Cut off the cable sheath by 10 cm from end.
(2) Separate the braid from the strand and twist it to form a grounding lead.
(3) Strip each wire by 1 cm from end.
(4) Connect the TD cable (CW-836-3M) to the receptacle J7 at the display rear panel and press the
rubber jacket onto the connector body to secure water tightness.
10 cm
Grounding lead
Shield
Red
Green
Black
White
High Frequency TD
Shield (Common)
Low Frequency TD
