Koden CVS-841 - Customizing Image Modes

Chapter 7 CVS-841/851
Functional Registration
7.2 Display mode registration
7.2.1 Registering functions to USER 1 and 2
(1) Press the MENU key to display the main menu.
(2) Press the down arrow key to highlight DISPLAY.
(3) Press the right arrow key to show the DISPLAY sub menu list. Pressing the down arrow key
scrolls 3 pages of the sub menu as shown below.
(4) Press the up or down arrow key to select USER 1, for instance.
(5) Press the right arrow key to display USER 1 sub menu.
(6) Press the up or down arrow key to select the item, H/EN (Enhance) for example. ct the item, H/EN (Enhance) for example.
Menu => Display => User 1 (User 2 ) =. H/EN Menu => Display => User 1 (User 2 ) =. H/EN
CVS-841 CVS-841
CVS-851 CVS-851
User 1
L/MIX
H/MIX
H/L/MIX
H/EN
L/EN
H/BTM/L/BTM
H/B.D./L/B.D.
H/ZOOM/L/ZOOM
H/B.Z/L/B.Z
Menu
Transmit
Ima
g
e
Display
Auto
System
Customize
Initialize
Simulator
Display
A Scope OFF
Information Window OFF
Zoom T
yp
e ZOOM
Zoom Range 2.5
User 1 H/EN
User 2 B.D
User 3 H(1)/H(2)/L
Depth Value Large
Depth Value Position Bottom
Scale Single
Scale Position Side
1
s
t
page

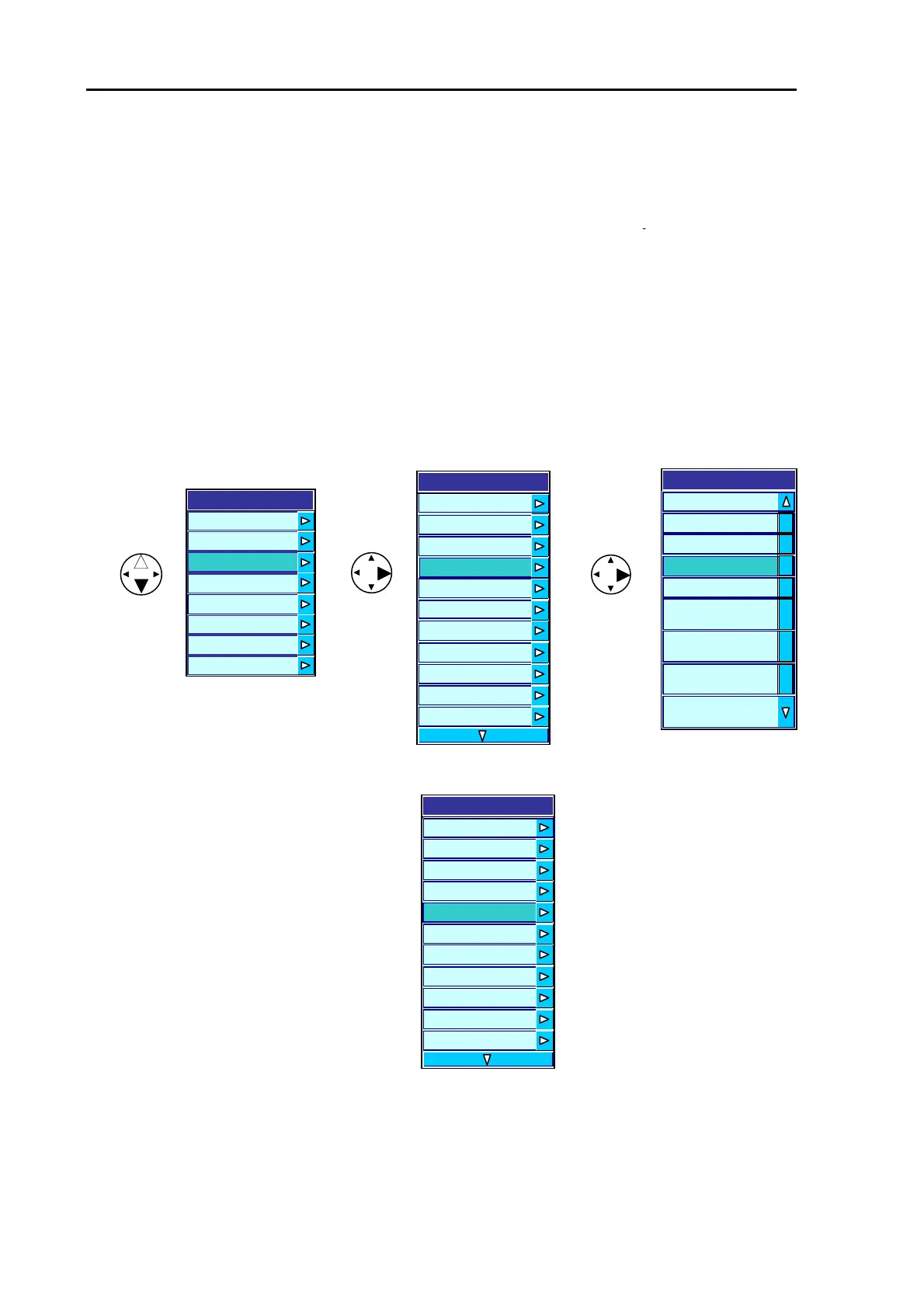

Figure 7.5 function registration to USER 1 - 2
1
s
t
page
Display
A Scope OFF
Scale Value Small
Zoom Type ZOOM
Zoom Range 5.0
User 1 H/EN
User 2 B.D
User 3 H(1)/H(2)/L
Depth Value Large
Depth Value Position Bottom
Scale Single
Scale Position Side
7-4 93132682-00
