Koden CVS-841 - Common Key Operations; Displaying Low Frequency NORM;ZOOM Image

CVS-841/851 Chapter 5
Basic Operation
93132682-00 5-11
NOTE: These modes are dual display, available only on the same frequency. The Bottom Zoom image
is displayed on a single screen only.

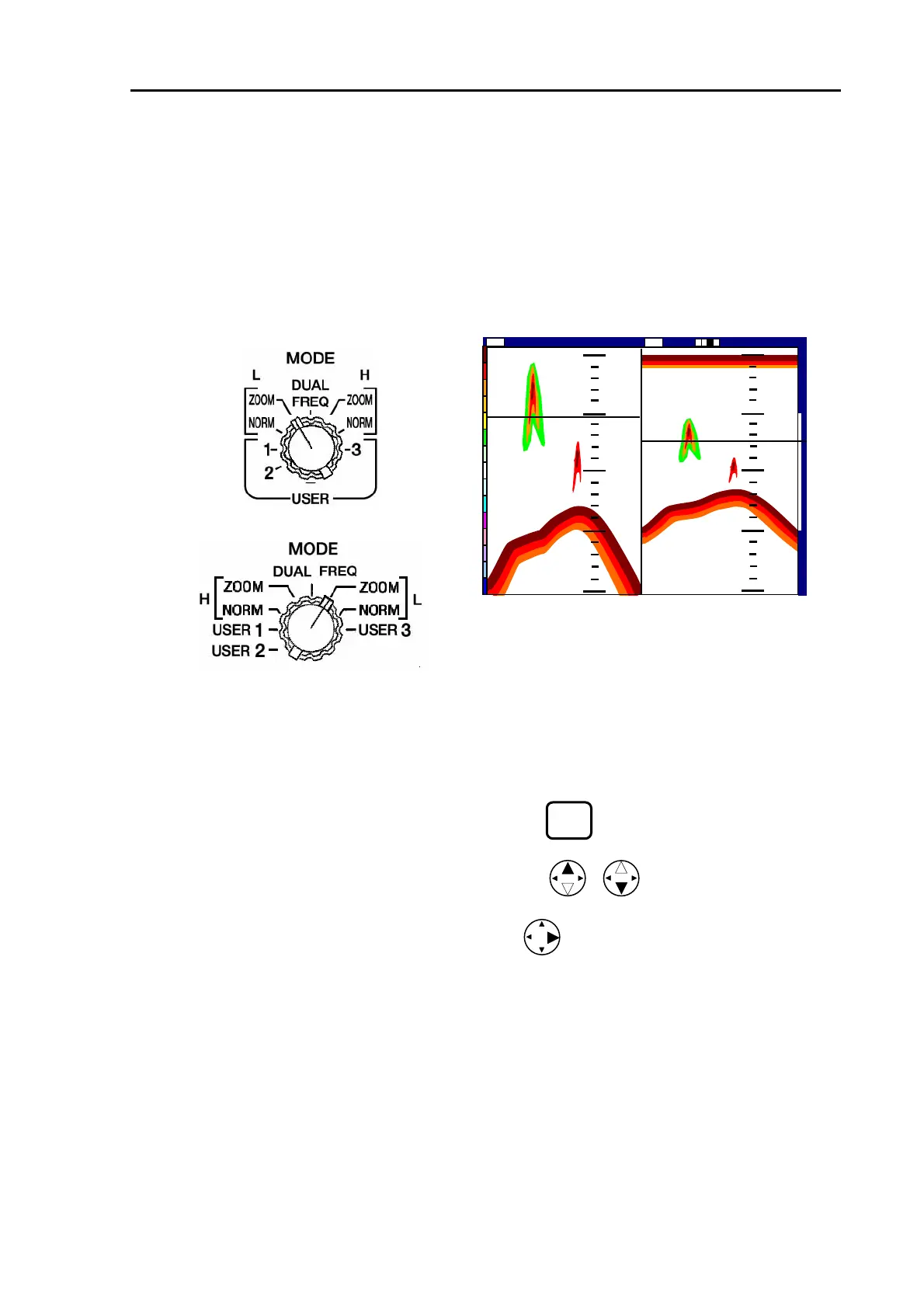

5.3.3 Displaying Low Frequency NORM/ZOOM image
(1) (1) Select Low Frequency ZOOM mode.
(2) Zoomed Low Frequency image is shown on the left and Normal Low Frequency image on the right
on the screen.
[CVS-841]
[CVS-851]
０
０
50
100
200
50
75
100
125
150
147
76
76
Low
2001/05/23(Wed)
Image Speed 1/1
14:22:56
Shift
000 0 ZM
Low Frequency
Zoomed image
Low Frequency
Normal image
Figure 5.13 Low Frequency NORM/ZOOM image
150
5.3.4 Common key operations
All menu driven functions can be operated using the MENU key and four way arrow keys. Operating
procedure are common to all functions, which are as follows:
MENU
(1) Press the MENU key to show the main menu list.
(2) Press the up or down arrow key to select a menu item.
(3) Press the right arrow key to select the sub menu.
(4) Press the up or down arrow key to select an item or set numeric values. The selected or entered
value will be fixed when you exit the menu.
(5) To exit from the menu, press the MENU key until normal image is shown.
