Koden CVS-841 - Connector Pinout Diagrams

Chapter 4 CVS-841/851
Installation
4-10 93132682-03
Appendix 1

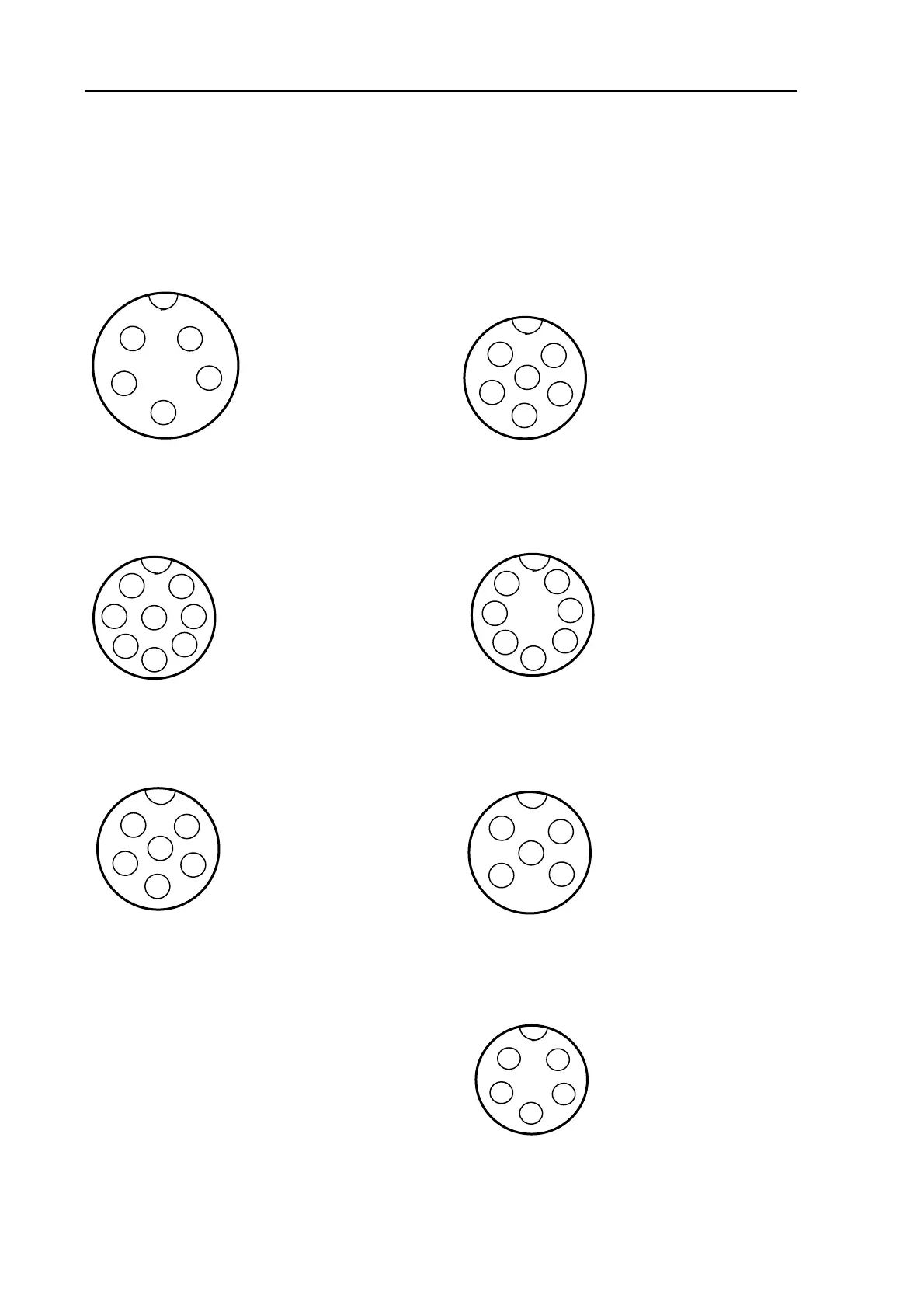

Connectors’ pinouts
Transducers
J7
NMEA In/Out
J2
1. TD (TD1H:High Frequency)
2. TD (TD2L:Low Frequency)
3. SH (Shield)
4. TD (TD2H:High Frequency)
5. TD (TD1L:Low Frequency)
1. Ground (GND)
2. Serial Output (TX)
3. Serial Output (GND)
4. Serial Input + (RX+)
5. Serial Input – (RX-)
6. Not used (NC)
1
2
3
5
4
1
2
5
6
4
3
W
J3
ater temperature/Speed Sensor
Inputs and Buzzer Output
RS232C In/Out
J4
1. Speed Pulse Input (SPD.PULSE)
2. Speed +B (SPD.VCC)
3. Buzzer Output 0 (BUZ0)
4. Buzzer Output 1 (BUZ1)
5. NC
6. Water Temp +B (TEMP.VCC)
7. Water Temp Signal In (TEMP.SIG)
8. Speed GND (SPD.GND)
1. RS232C Data Input (RXD)
2. RS232C Data Output (TXD)
3. +5V (+5v)
4. Ground (GND)
5. Not used (NC)
6. EVT (EVT): Not used
7. Ground (GND)
1
2
3
5
4
6
7
8
1
6
2
5
3
4
7
External Sounder Input
J6
NMEA Nav Data Input
J5
1. Ground (GND)
2. GPS Signal Out (GPS OUT):
Not used
3. Ground (GND)
4. Nav Data In + (GPS IN+)
5. Nav Data In – (GPS IN-)
6. +12V (+12V)
1. Ext Trig In (EXT.TRG)
2. Ground (GND)
3. 0.Trig Out (0.TRIG OUT)
4. AF Signal Out (AF.SIG.OUT)
5. Not used (NC)
1
2
3
5
4
6
1
2
5
3
4
DC Input (10.8 - 31.2VDC)
POWER
1. DC –
2. DC +
3. NC
4. NC
5. Frame Ground
1
5
2
4
3
