Chapter 5 CVS-841/851
Basic Operation
[CVS-851]
Enlarged
V
RM key
Turns on or off VRM. It also selects the VRM mode.
SHIFT key
Turns on or off the image shift mode
MENU key
Turns on or off the menu display.
Four way arrow key
Selects or sets up the menu items, etc.
EVENT key
Registers or updates the event.

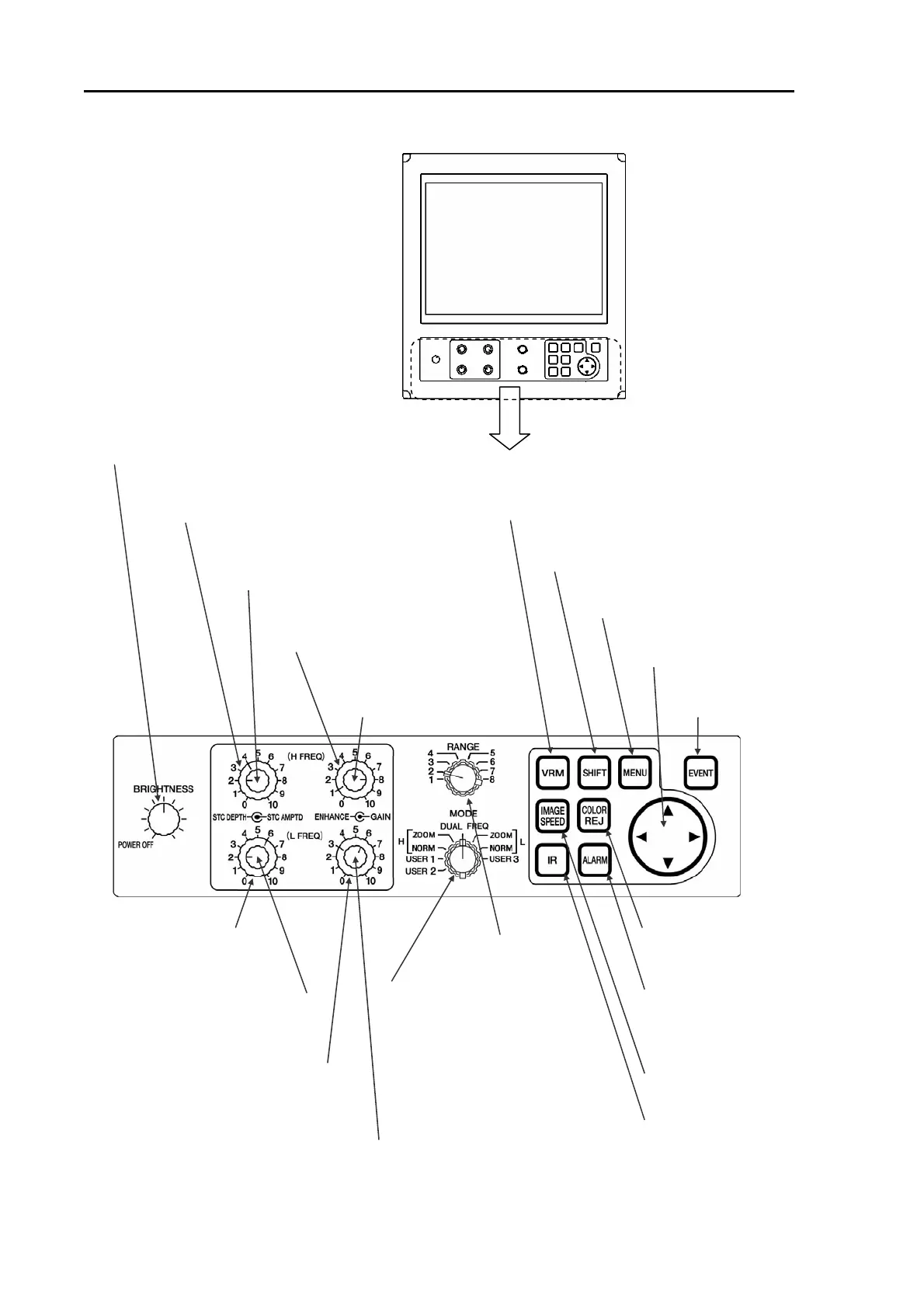

Figure 5.2 CVS-851: Details of operating key switches
L FREQ STC DEPTH control
Varies the effective range of
Low Frequency STC in depth
L FREQ STC AMPTD control
Varies the intensity of Low
Frequency STC.
L FREQ ENHANCE control
Varies the degree of enhance effect
for Low Frequency image.
L FREQ GAIN control
Varies the receiver gain of Low
Frequency image.
RANGE switch
Selects the depth range.
MODE switch
Selects the image mode.
H FREQ STC DEPTH control
Varies the effective range of
High Frequency STC in depth
H FREQ STC AMPTD control
Varies the intensity of High
Frequency STC.
H FREQ ENHANCE control
Varies the degree of enhance effect
for High Frequency image.
H FREQ GAIN control
Varies the receiver gain of High
Frequency image.
POWER/BRIGHTNESS control with a switch
Turns on or off the unit and adjusts the brightness of the image.
COLOR REJ key
Selects the setting of
Color Rejection function.
ALARM key
Turns on or off the Alarm.
This key is also used to
select the alarm setting.
IMAGE SPEED key
Selects the image speed.
IR key
Turns on or off the IR
(Interference Rejection)
effect. This key is also
used to select the IR
settin
g
.
5-2 93132682-00
