Section 9
Disassembly
3. Remove the hex. flange nut on stud securing the
carburetor side baffle,* if not removed previously
during carburetor removal. Remove the screws
attaching the cylinder head baffle. See Figure 9-18.
* If so equipped.

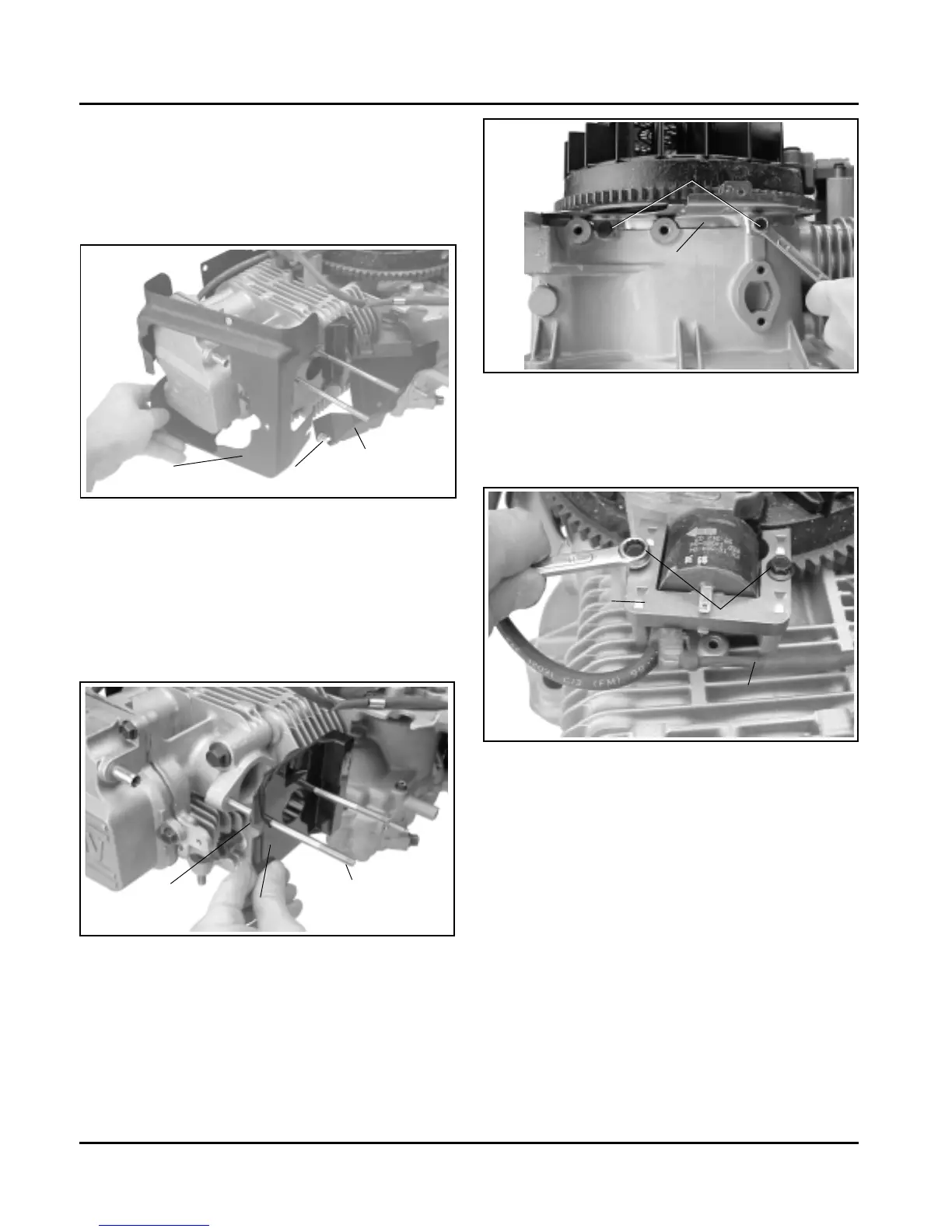

Figure 9-18. Removing Blower Housing and Baffles.
4. Carefully loosen and remove the heat deflector and
gasket from intake studs. The heat deflector is
made from a plastic that is quite brittle. Do not pry
on the corners, or you risk cracking/breaking the
deflector. If prying is necessary to loosen the
deflector, pry near the intake studs. See
Figure 9-19.
Figure 9-19. Removing Heat Deflector.
5. Remove the two hex. flange screws and starter
side cylinder barrel baffle.
6. Remove the two hex. flange screws and blower
housing back plate. See Figure 9-20.
Figure 9-21. Removing Ignition Module.
2. Rotate flywheel magnet away from ignition module.
3. Remove the two hex. flange screws and ignition
module.
Remove Fuel Line
1. Remove the hex. flange screw, clip, fuel line and
rubber grommet. See Figure 9-22.
Gasket
Heat Deflector
Intake Stud
Blower Housing
Back Plate
Hex. Flange
Screws
Hex. Flange
Nut or Screw
Cylinder
Head Baffle
Cylinder Baffle
(Carburetor Side)
Hex. Flange Screws
Ignition
Module
Kill Lead
Figure 9-20. Removing Back Plate.
Remove Ignition Module
1. Disconnect the kill lead from the ignition module.
See Figure 9-21.
