8.28
Section 8
Electrical System and Components

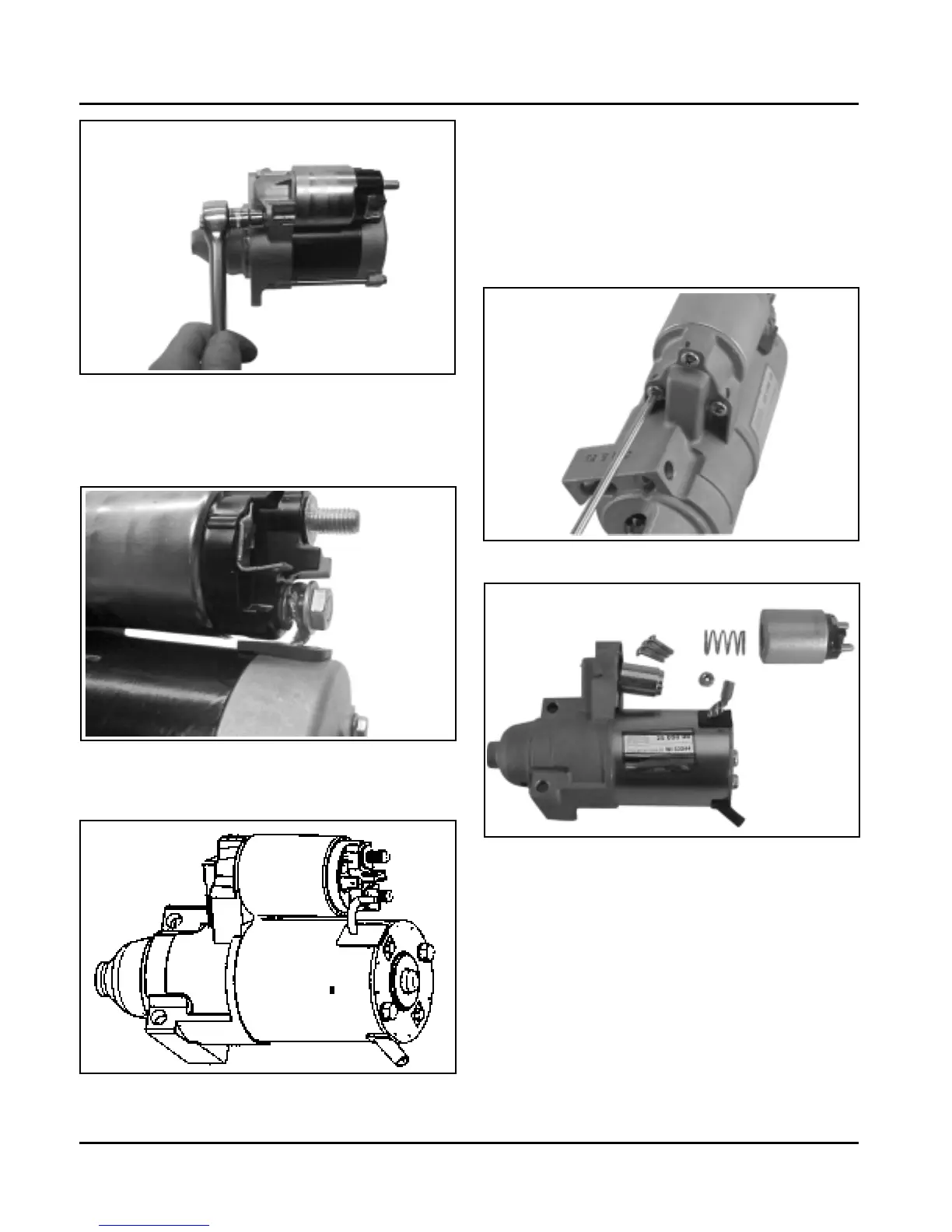

Figure 8-35. Installing Thru Bolts.
14. Connect the braided (brush) lead to lower main
solenoid terminal and secure with the hex. flange
nut. See Figure 8-36.
Figure 8-36. Connecting Brush Lead.
Delco-Remy Starters
Figure 8-37.
Starter Disassembly
1. Remove the hex. nut and disconnect the positive
brush lead/bracket from the solenoid terminal.
2. Remove the three screws securing the solenoid to
the starter. Remove the solenoid and plunger
spring from the drive end cap. See Figures 8-38
and 8-39.
Figure 8-38. Removing Solenoid Screws.
Figure 8-39. Solenoid Removed From Starter.
Some solenoids are
fastened with external
Torx head screws.
