8. Position the insulator over the brushes and
springs. Hold it firmly in place so the springs do
not come out. See Figure 8-31.

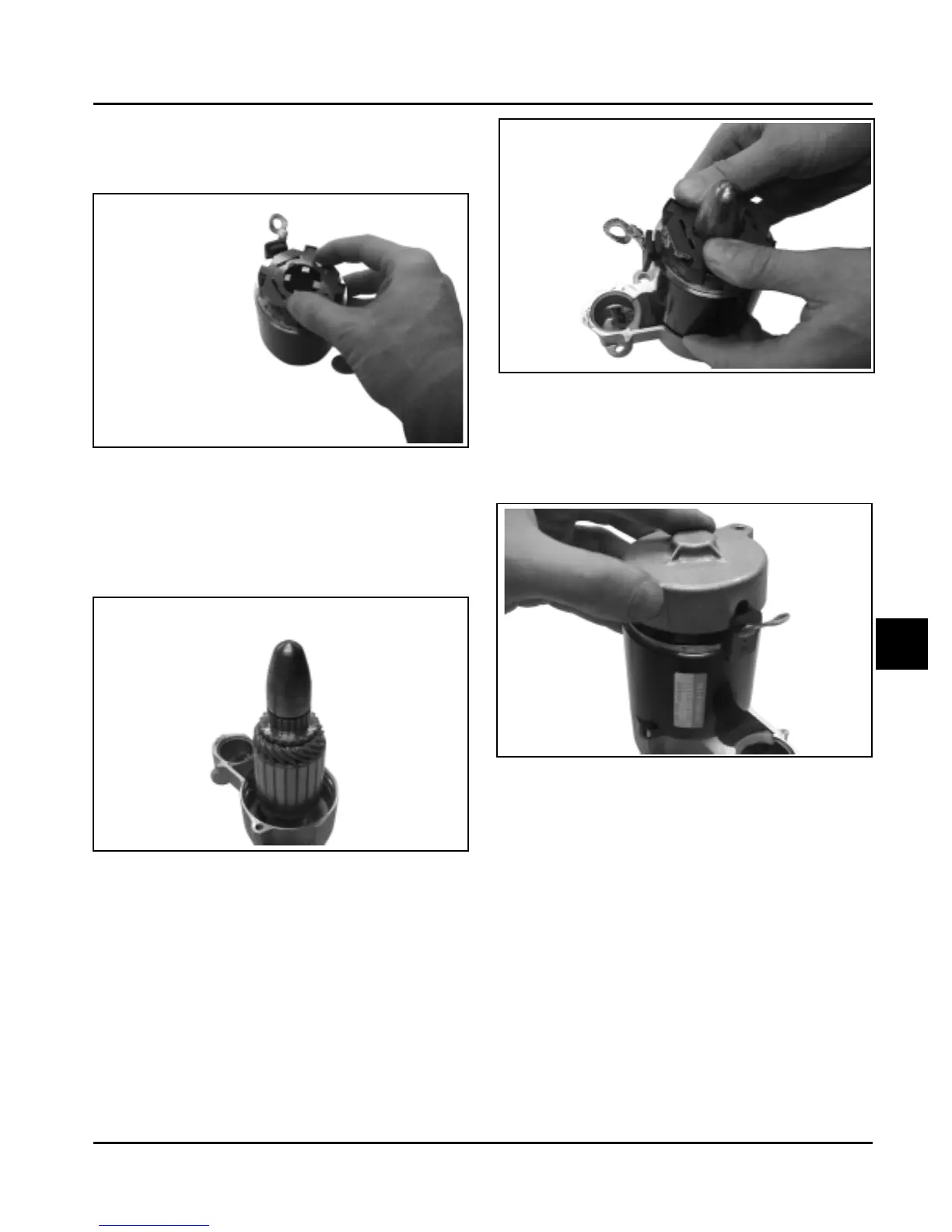

Figure 8-31. Holding Insulator in Place.
9. Stand the armature/drive end cap assembly on
end so the commutator end is ‘‘up’’. Place brush/
armature installation tool over the end of the
armature shaft until it rests against the
commutator. See Figure 8-32.
Figure 8-32. Tool on end of Armature.
10. Carefully slide the frame, with the brush plate
assembly, down over the tool and onto armature
and drive end cap, aligning the cutout with lever
section (on top). The rubber insulating grommet
should also be ‘‘up’’. See Figure 8-33.
NOTE: Maintain pressure on the insulator while
installing so the springs do not come out.
Figure 8-33. Installing Frame with Brush Plate
Assembly.
11. Remove the tool and install the commutator end
cap, aligning the cutout with the insulating
grommet. See Figure 8-34.
Figure 8-34. Installing End Cap.
12. Install and tighten the two thru bolts.
13. Make sure the dust cover is in place on the
solenoid. Install solenoid, engaging the plunger
end with the yoke of the drive lever. Check by
pulling solenoid towards the rear. Mount the
solenoid to the starter using the two hex. flange
nuts. Tighten securely. See Figure 8-35.
