11.2
Section 11
Reassembly
3. Using the KO1030 oil seal installer, install a new
governor cross shaft oil seal into the crankcase.
See Figure 11-2.

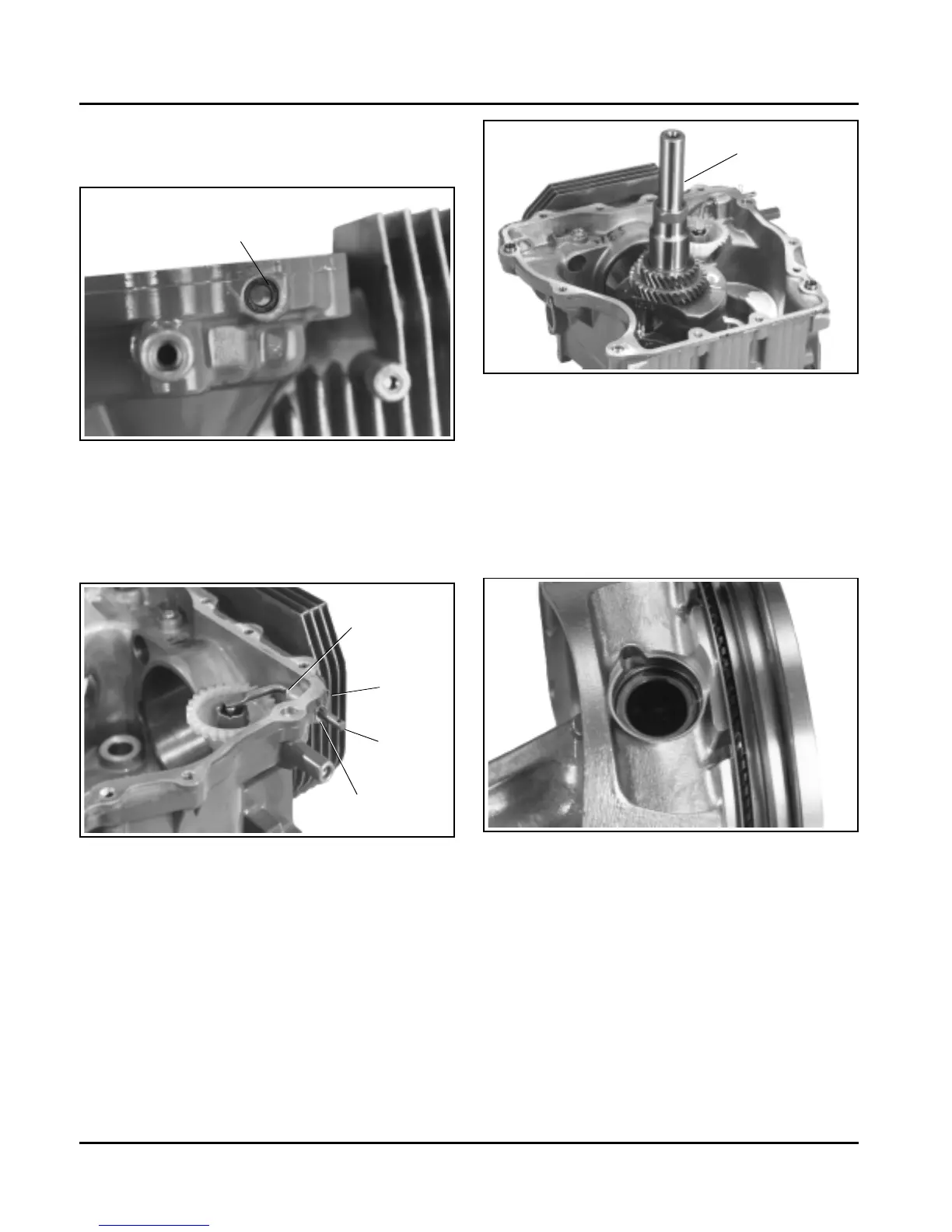

Figure 11-2. Cross Shaft Oil Seal.
4. Install smaller plain washer to the cross shaft and
insert the cross shaft (from inside) through the
crankcase and oil seal. SeeFigure 11-3.
5. Install larger plain washer and hitch pin.
Figure 11-3. Installing Cross Shaft.
Install Crankshaft
1. Lubricate the flywheel end bearing surfaces of the
crankshaft and crankcase with engine oil.
2. Insert the crankshaft through the flywheel end
bearing. See Figure 11-4.
Figure 11-4. Installing Crankshaft.
Install Piston Rings
NOTE: For detailed piston inspection procedures and
piston ring installation procedure refer to
Section 10 – “Internal Components.”
Install Piston to Connecting Rod
1. Assemble the piston to the connecting rod. See
Figure 11-5.
Cross Shaft Oil Seal
Crankshaft
Plain Washer
Hitch Pin
Governor
Cross
Shaft
Plain Washer
Figure 11-5. Installing Piston to Connecting Rod.
