9.10
Section 9
Disassembly
1. Check if the extra retaining clips are present. If so,
cut the clips, so they can be removed and discard.
Mark the tops of the knobs where they were
located. Order 3 new clips, Part No. 24 018 03-S,
for installation during reassembly.

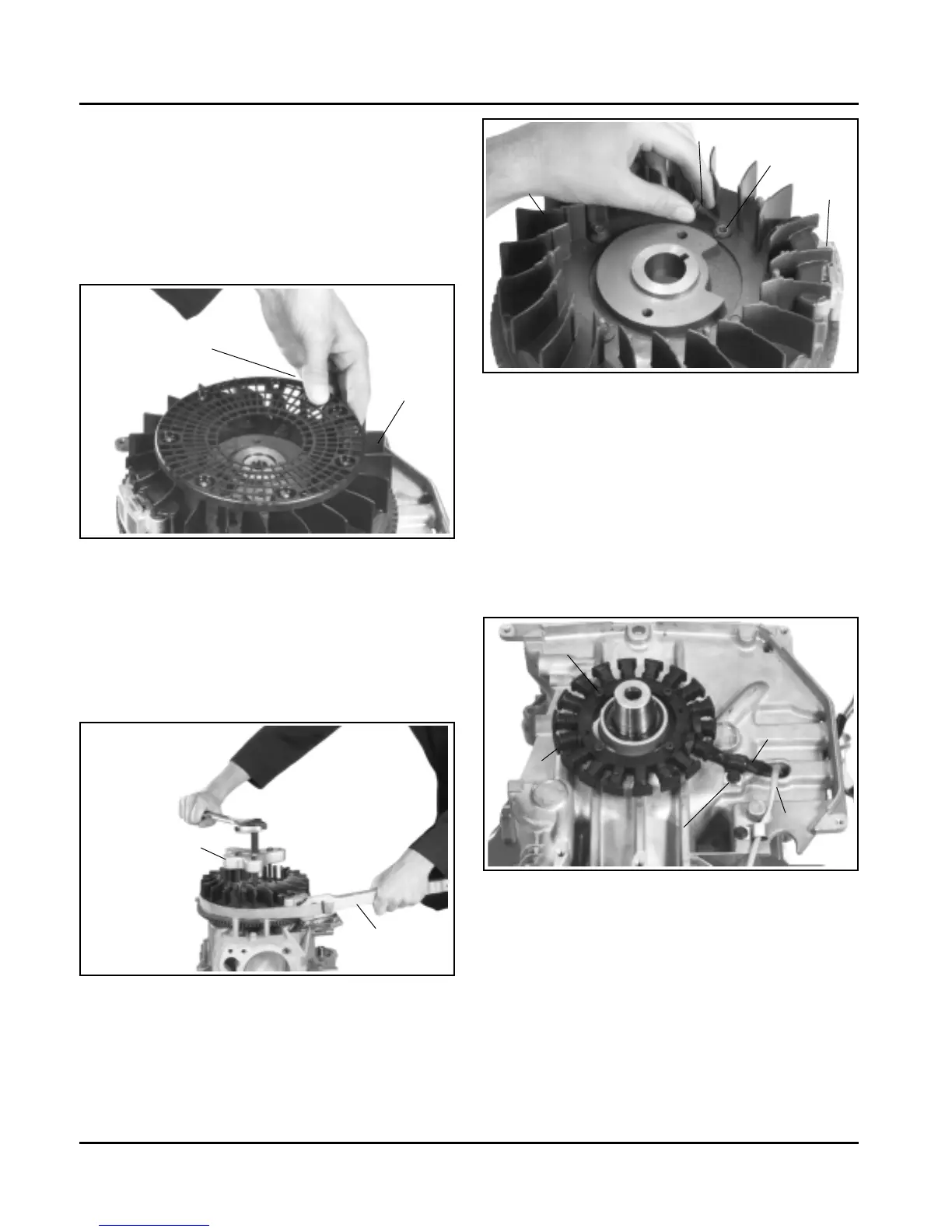

2. Remove the screen by unsnapping it from the fan.
See Figure 9-32.
Figure 9-35. Removing Stator.
Remove Oil Pan
1. Invert the engine, so the PTO end of crankshaft is
up.
2. Remove the twelve hex. flange screws securing the
oil pan to the crankcase. See Figure 9-36.
Figure 9-32. Removing Plastic Grass Screen.
3. Remove the flywheel from the crankshaft using a
puller. See Figure 9-33.
NOTE: Always use a puller to remove the
flywheel from the crankshaft. Do not
strike the crankshaft or flywheel, as these
parts could become cracked or damaged.
Flywheel Puller
Strap Wrench
Figure 9-34. Removing Fan from Flywheel.
Remove the Stator and Wiring Harness
1. Remove the stator leads from connector body.
2. Remove the hex. flange screw and clip securing
the stator leads to the crankcase. See
Figure 9-35.
3. Remove the hex. flange screw and clip securing
the kill lead to the crankcase. Remove the four
hex. socket head screws and stator.
Hex. Socket
Screws (4)
Stator
Hex. Flange
Screw and Clip
Stator Leads
Kill Lead
Fan
Hex. Flange Screws (4)
Flywheel
Spacers (4)
Unsnap Grass
Screen from Fan
Fan
Figure 9-33. Removing Flywheel with a Puller.
4. Remove the four hex. flange screws, spacers, and
fan from flywheel. See Figure 9-34. Later engines
will have shoulder screws and no spacers.
