11.19
Section 11
Reassembly
11
Install Carburetor and External
Governor Components
1. Install the rubber fuel line and secure the rubber
fuel line to the metal fuel line with a hose clamp.
2. Install the bushing and attach the throttle linkage
to the carburetor throttle lever. See Figure 11-61.

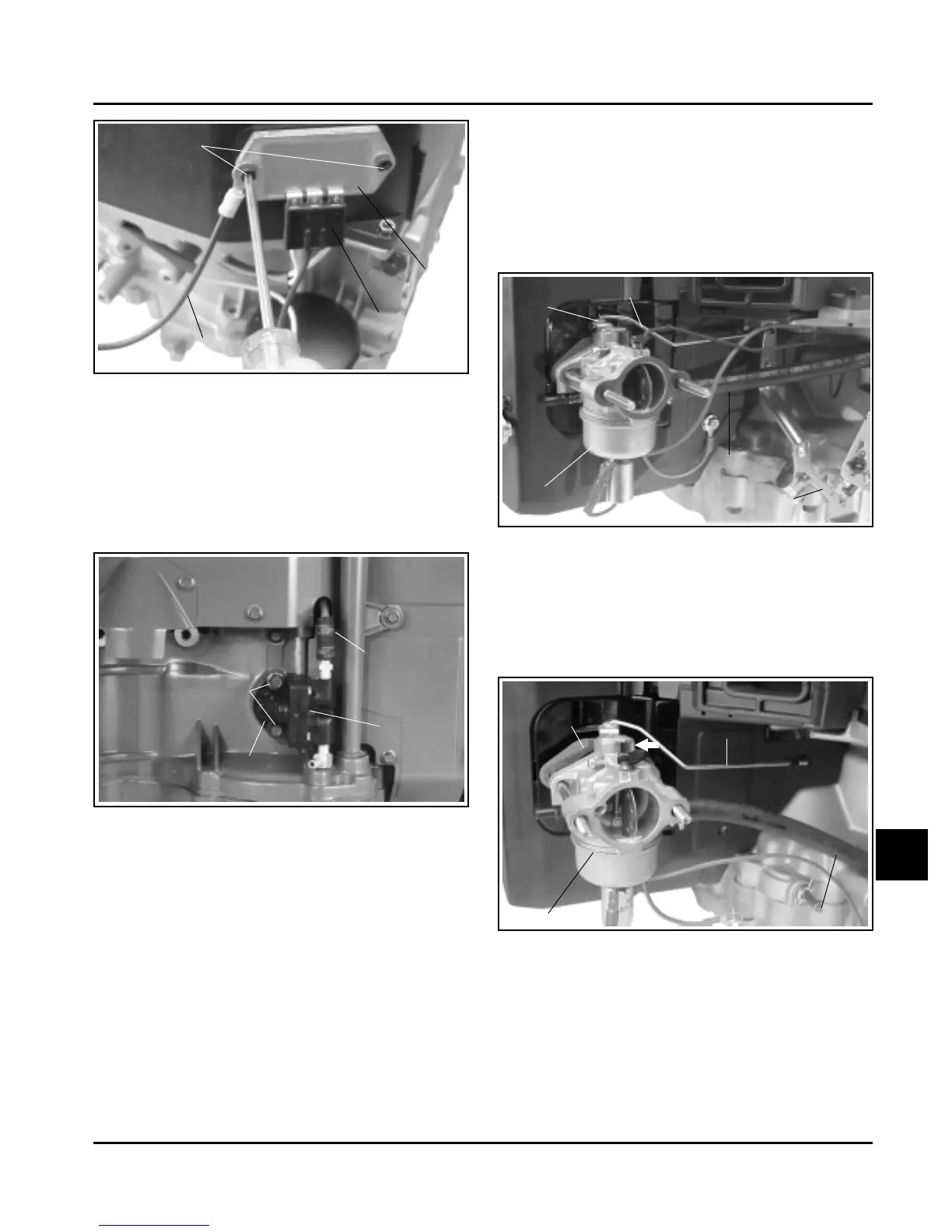

Figure 11-59. Installing Rectifier-Regulator (not on
all models).
Install Fuel Pump (If So Equipped)
1. Install the rubber line and two hose clamps to the
fuel pump end of the metal fuel line. Secure the
rubber fuel line to the steel fuel line with one of
the clamps. See Figure 11-60.
Mounting Screws
and Washers
Rectifier-
Regulator
Connector
Figure 11-60. Installing Fuel Pump.
2. Install the gasket, fuel pump, and two hex. flange
screws. Torque the screws as follows:
Into new as-cast hole–9.0 N·m (80 in. lb.).
Into used hole–4.2-5.1 N·m (37-45 in. lb.).
3. Install the opposite end of the rubber line to the
outlet fitting of the fuel pump. Secure the fuel line
to the outlet fitting with the other hose clamp.
Figure 11-61. Installing Carburetor and External
Governor Components.
3. Install the gasket and carburetor onto the intake
studs. Install the free end of the rubber fuel line to
the carburetor inlet fitting. Secure the fuel line with
the other hose clamp. See Figure 11-62.
Gasket
Hex. Flange Screws
Pump Outlet
Fuel Line
Fuel Pump
Figure 11-62. Installing Gasket, Carburetor and
Fuel Line.
Governor Arm
Fuel Line
Carburetor
Throttle Linkage
Bushing
Ground Lead
Gasket
Carburetor
Throttle Linkage
Fuel Line
