Retractable Starter
7
Section 7
Retractable Starter
CV11-16
CV460-465, CV490-495
WARNING: Spring Under Tension!
Retractable starters contain a powerful recoil spring that is under tension. Always wear safety goggles when
servicing retractable starters and carefully follow instructions in this section for relieving spring tension.
To Remove Starter
1. Remove the five hex. flange screws securing the
starter to the blower housing.
2. Remove the starter.
To Install Starter
1. Install the retractable starter and five hex. flange
screws to blower housing. Leave the screws
slightly loose.
2. Pull the starter handle out until the pawls engage
the drive cup. Hold the handle in this position and
tighten the screws securely. See Figure 7-2.

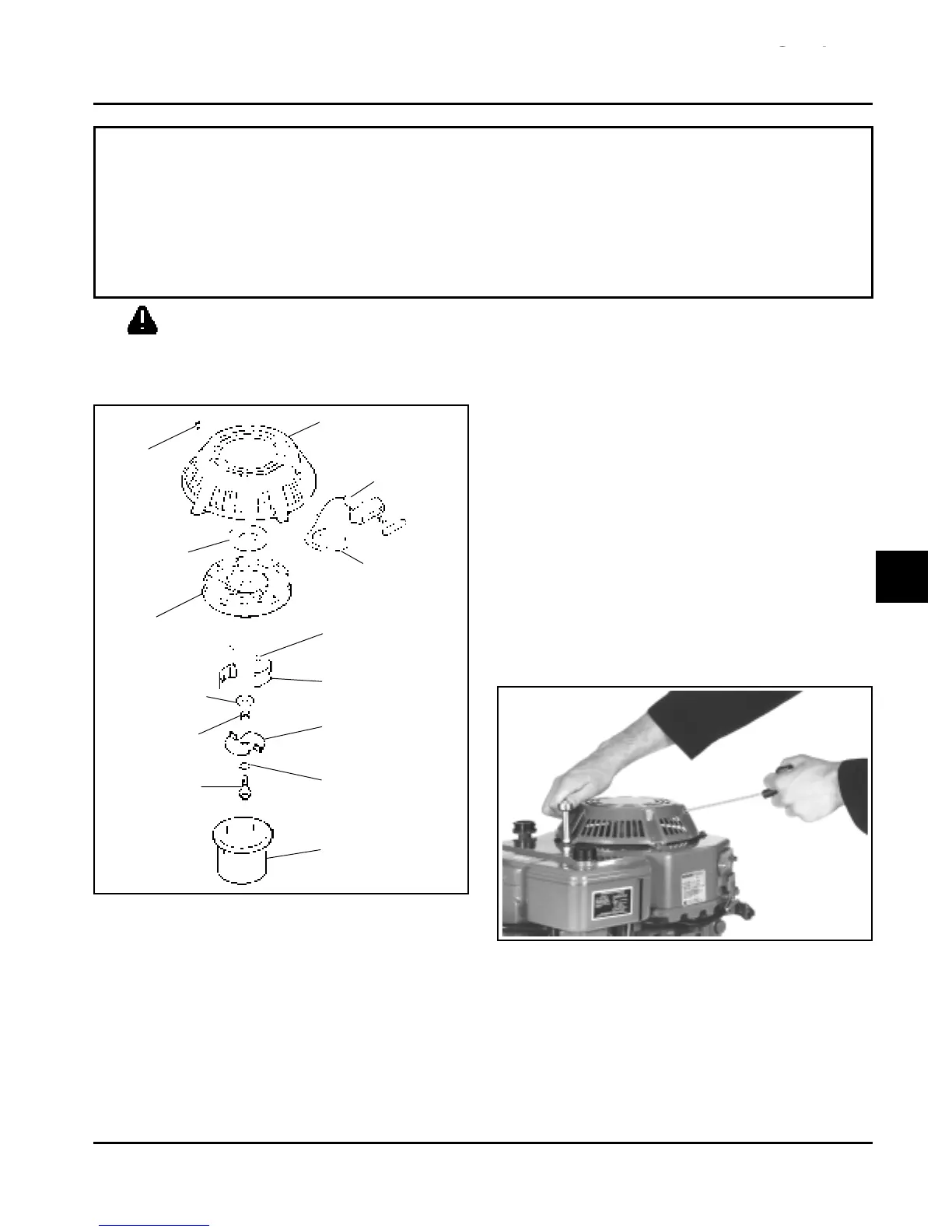

Figure 7-1. Retractable Starter–Exploded View.
Figure 7-2. Installing Retractable Starter.
Drive Cup
Starter Housing
Handle with
Rope Retainer
Rope
Pawl Springs
Pawls
Pawl Retainer
Plain Washer
Center Screw
Brake Spring
Brake Washer
Pulley
Spring and
Keeper
Hex.
Flange
Screws
