11.7
Section 11
Reassembly
11

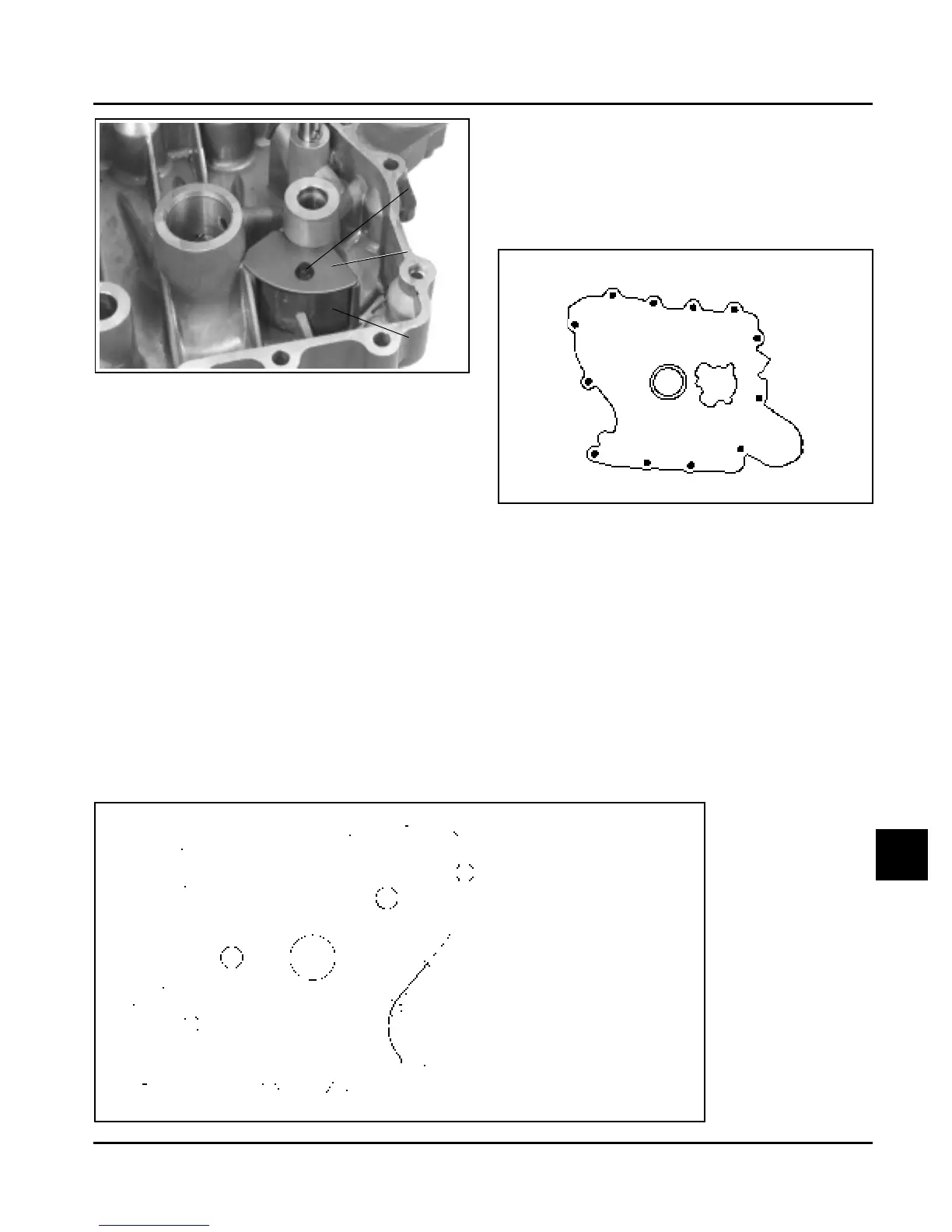

Figure 11-20. Installing Oil Pickup Components.
Install Oil Pan to Crankcase
RTV silicone sealant is used as a gasket between the
oil pan and crankcase. Refer to page 2.1 for the
approved sealant.
NOTE: Always use fresh sealant. Using outdated
sealant can result in leakage.
1. Prepare the sealing surfaces of the crankcase
and oil pan as directed in Service Bulletin 252.
NOTE: Do not scrape the surfaces when
cleaning as this will damage the
surfaces. This could result in leaks. The
use of a gasket removing solvent is
recommended.
2. Apply a 1/16" bead of sealant to the oil pan as
shown in Figure 11-21. Apply a second bead to
the section between point "A" and point "B".
3. Install the oil pan to the crankcase and install the
twelve hex. flange screws. Tighten the screws
hand tight.
4. Torque the fasteners, in the sequence shown in
Figure 11-22 to 24.4 N·m (216 in. lb.).
Figure 11-21. Oil Pan Sealant Pattern.
Figure 11-22. Oil Pan Fastener Torque Sequence.
1
3
5
7
9
11
2
4
6
8
10
12
Point "B"
Appearance and Width of Flange
May Vary Between Points "A" & "B".
Apply Double Bead of RTV
Sealant Between Points "A" & "B".
Hex.
Flange
Screw
Oil
Pickup
Screen
Cover
Oil
Pickup
Screen
Point "A"
To Next Page
