Section 11
Reassembly

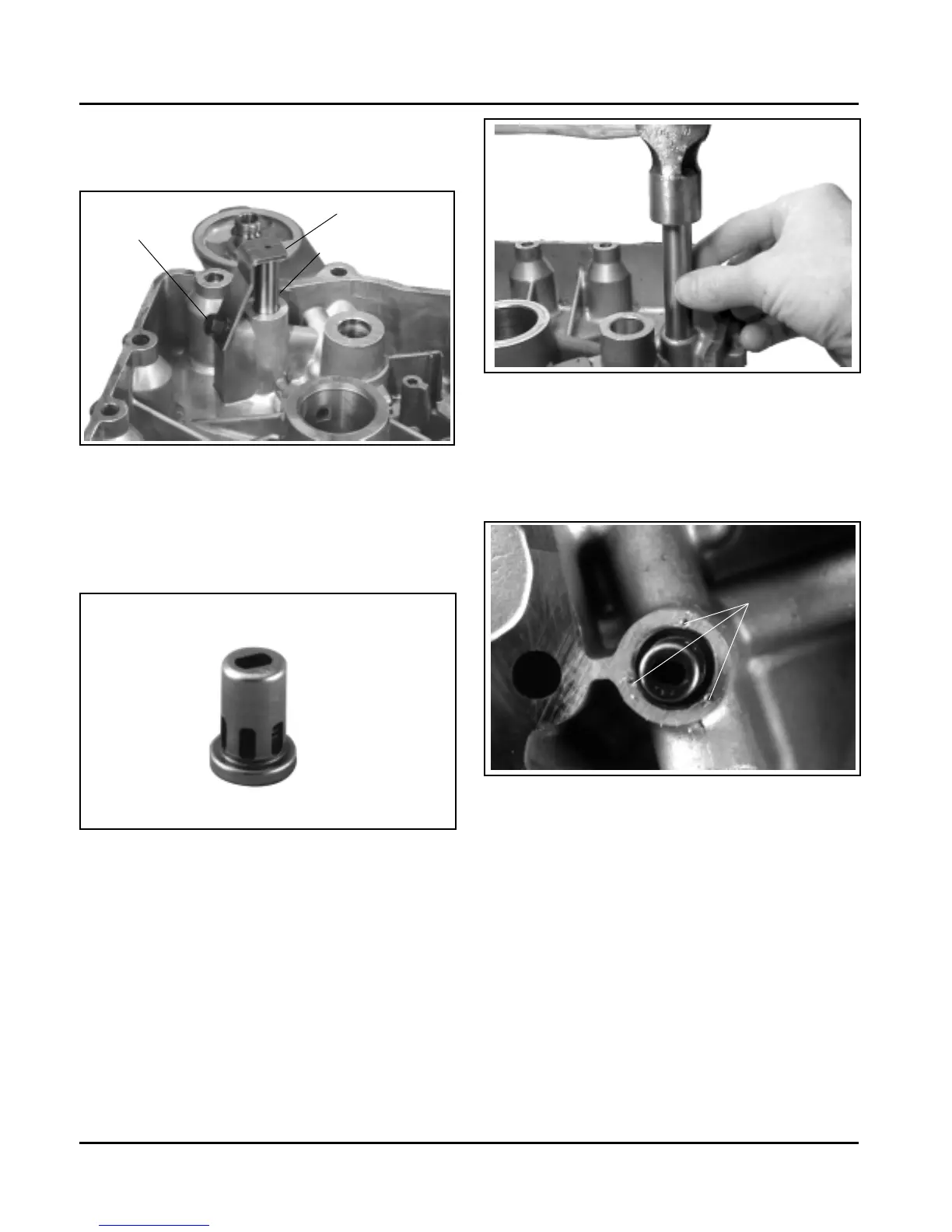

Figure 11-16. Installing Oil Pressure Relief Valve
Bracket.
Later (One-Piece) Style Oil Pressure Relief Valve
1. If this style relief valve is replacing an early five-
piece relief valve, reinstall the original retaining
screw to block the hole. Tighten securely.
Figure 11-18. Inserting New Relief Valve into Bore
of Closure Plate.
3. Stake the casting boss with a center punch in 3 or
4 locations near the inner edge to lock the relief
valve into place. See Figure 11-19. Do not use
Loctite
®
.
Figure 11-17. Later Style Oil Pressure Relief Valve.
2. Use a piece of thin wall metal tubing or deep
socket with a slightly smaller O.D. than base.
Press or tap new relief valve into the bore of the
closure plate until it bottoms. See Figure 11-18.
Figure 11-19. Center Punch Stake Marks.
Install Oil Pickup
1. Install the oil pickup screen, screen cover and
hex. flange screw. See Figure 11-20.
3. Push bracket down until it seats against top of
relief valve body. Secure with hex. flange screw.
See Figure 11-16.
Hex. Flange
Screw
Oil Pressure
Relief Bracket
Relief Valve Body
Center Punch
Stake Marks
