11.21
Section 11
Reassembly
11
b. Grasp the cross shaft with a pliers and turn the
shaft couterclockwise as far as it will go, then
tighten the hex. nut securely. See Figure 11-66.

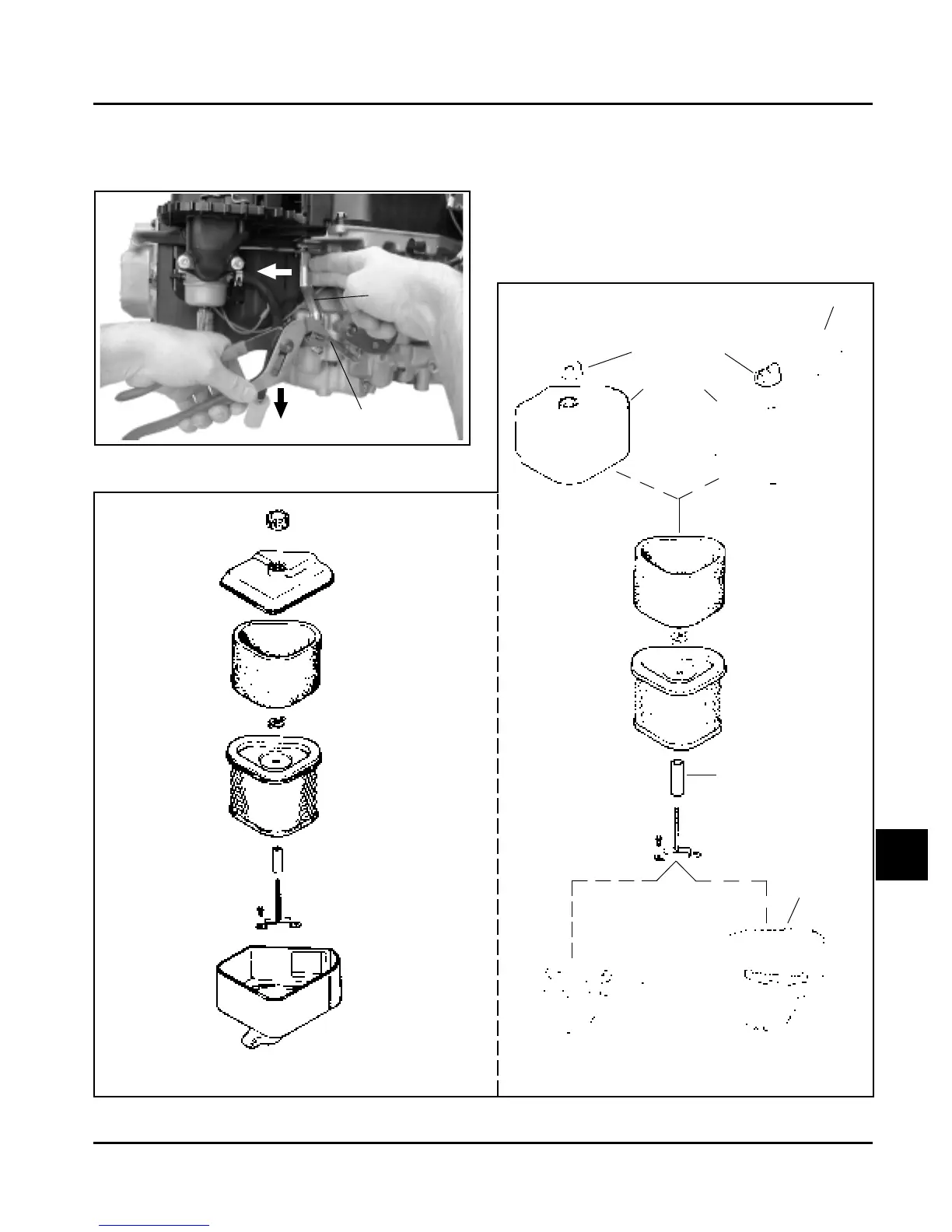

Figure 11-66. Adjusting the Governor.
5. Be sure the rubber sleeve seal is installed on the
air cleaner base stud. Install the air cleaner
element and precleaner. Secure the element with
the wing nut. See Figure 11-67.
Figure 11-67. Air Cleaner Details.
Original Design
Later Design
Governor
Lever
Governor Shaft
Air Duct
Knob (Part
of Cover)
Closed BaseOpen Base
Inner Air
Cleaner Seal
Air Cleaner
Base Seal
Air Cleaner
Cover
