Solenoid Shift Electric Starters
The following subsection covers the solenoid shift electric starters. Much of the information in the preceding
subsection relates to these starters, therefore it is not repeated here. Refer to Figure 8-26 for disassembly and
assembly procedure of the UTE solenoid shift starter. The Nippendenso solenoid shift starter is covered starting
on page 8.24. The Delco solenoid shift starter starts on page 8.28.
Hex. Flange
Screws (2)
Plunger
Spring
Solenoid
Clip
Brushes
and
Brush
Springs
Starter Assembly
Commutator End Cap
Frame (includes
Permanent Magnets)
Hex. Cap Screw (2)
Drive End
Cap
Thrust Washer
Retainer
Seal
Drive Pinion
Drive Lever
Thru
Bolts
(2)
Dust
Cover
Armature

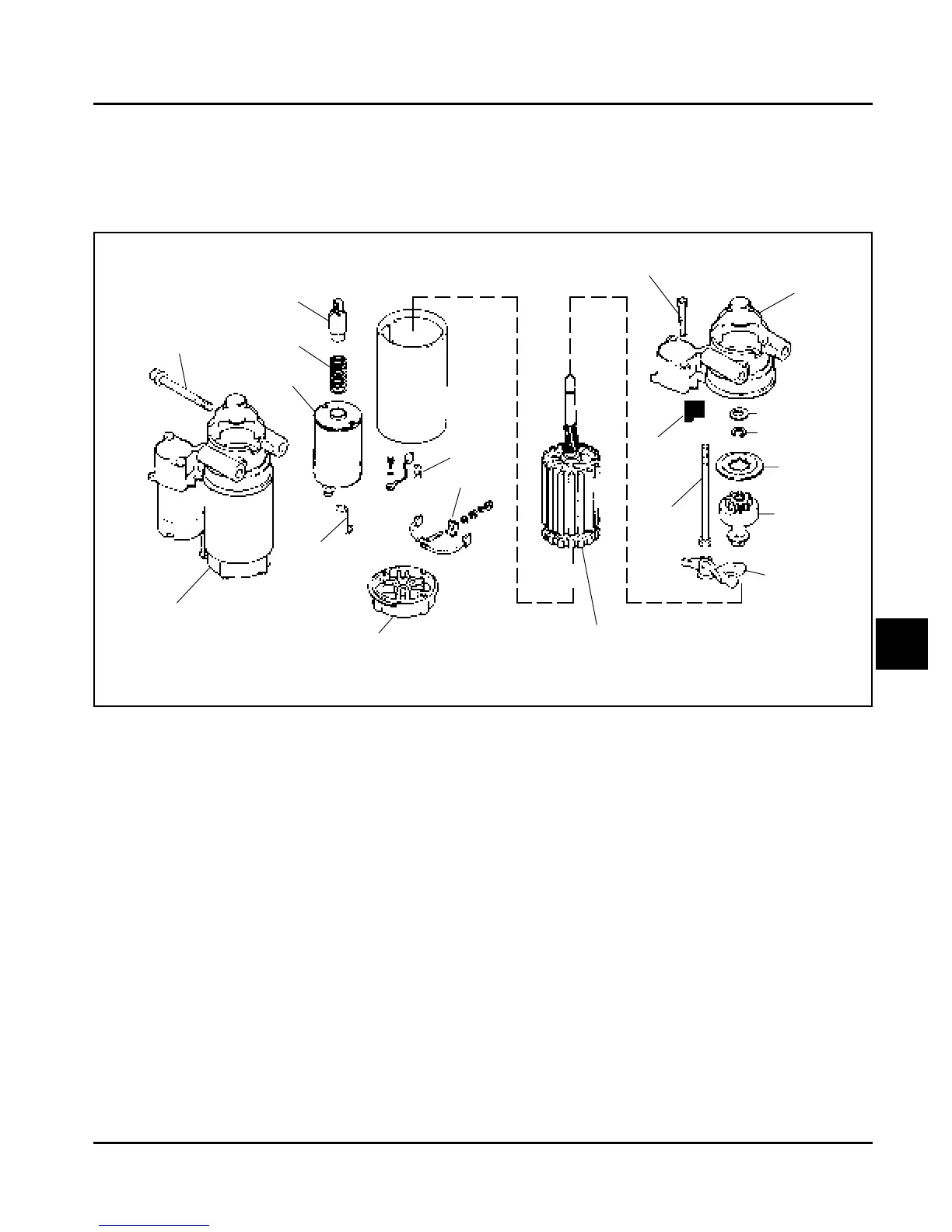

Figure 8-26. UTE Solenoid Shift Electric Starter.
