9.11
Section 9
Disassembly
9
Oil Pan
Hex. Flange
Screws (12)

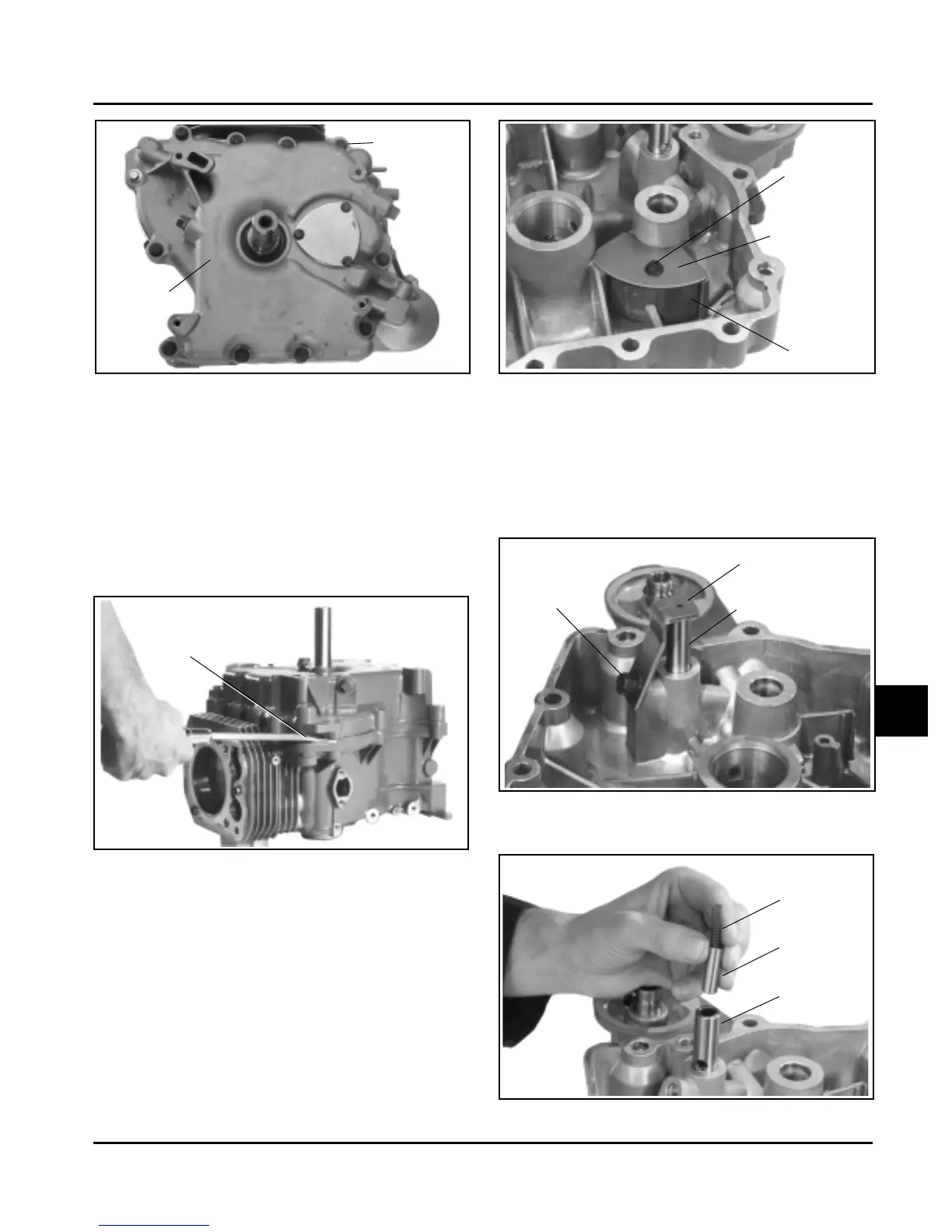

Figure 9-36. Removing Oil Pan.
3. Locate the splitting tabs on the oil pan and
crankcase. Insert the drive end of a 3/8" breaker
bar between the splitting tabs and rotate the
handle to break the RTV seal between the
crankcases and oil pan. See Figure 9-37.
NOTE: Pry only in the splitting tabs. Do not pry
on the gasket surfaces of the crankcase
or oil pan as this can cause leaks.
Hex. Flange
Screw
Oil Pressure
Relief Bracket
Relief Valve Body
Figure 9-39. Removing Oil Pressure Relief Valve
Bracket (Early Style).
Figure 9-37. Splitting the Oil Pan Crankcase.
Remove Oil Pickup, Oil Pressure Relief
Valve, and Oil Pump
1. Remove the oil seal from the oil pan.
2. Remove the hex. flange screw, oil pickup cover and
oil pickup screen. See Figure 9-38.
Figure 9-38. Removing Oil Pickup.
3. Identify the type of oil pressure relief valve used. If
the relief valve assembly is like that shown in
Figures 9-39 and 9-40, remove the hex. flange
screw, retaining bracket, relief valve body, piston,
and spring. If the relief valve is like that shown in
Figure 9-41 removal is not necessary.
Oil Pickup Screen
Oil Pickup
Screen Cover
Hex. Flange
Screw
Splitting Notch
Figure 9-40. Removing Oil Pressure Relief Valve
Body, Piston, and Spring (Early Style).
Spring
Piston
Relief
Valve Body
