8.36
Section 8
Electrical System and Components

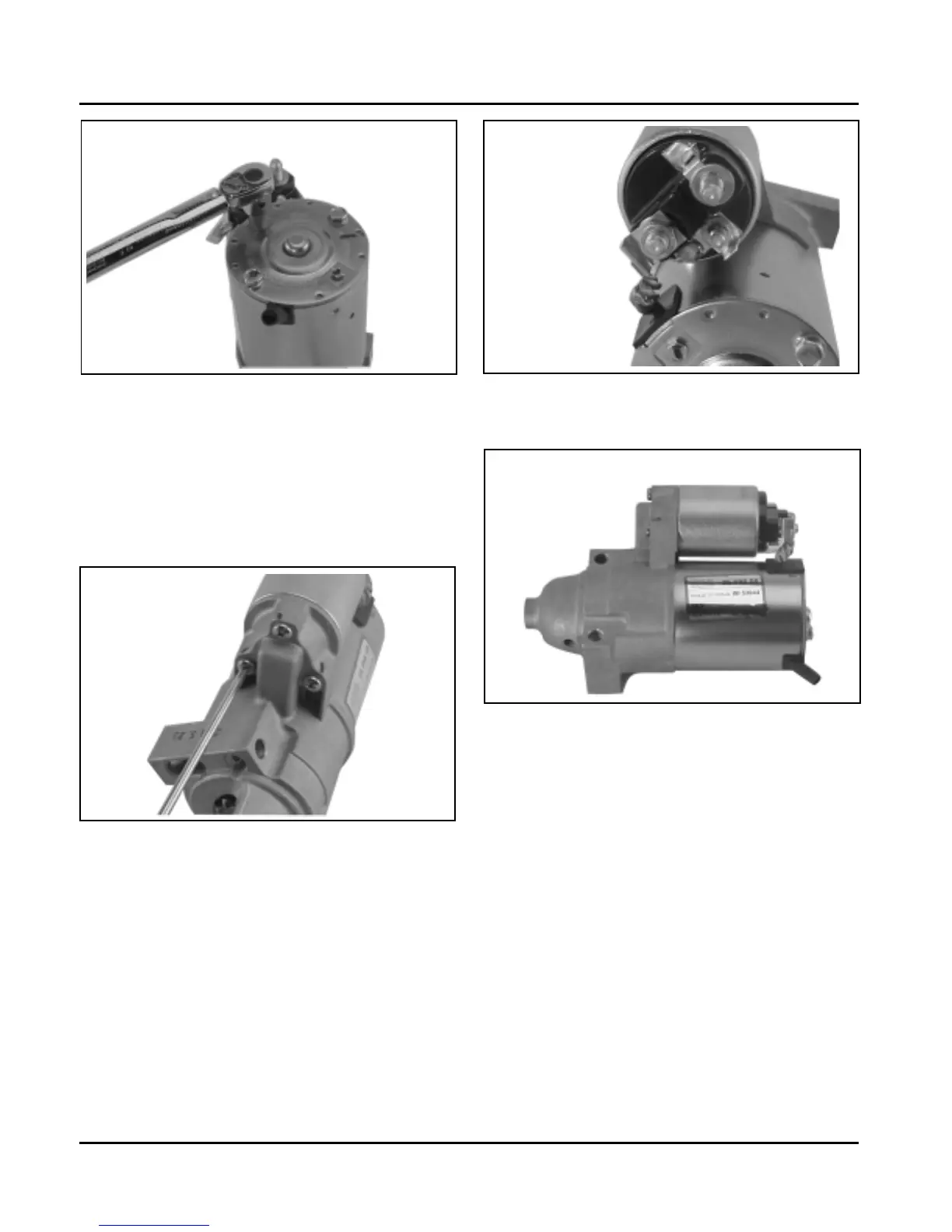

Figure 8-65. Torquing Brush Holder Screws.
13. Hook the plunger behind the upper end of the
drive lever, and install the spring into the solenoid.
Insert the three mounting screws through the
holes in the drive end cap. Use these to hold the
solenoid gasket in position, then mount the
solenoid. Torque the screws to 4.0-6.0 N·m
(35-53 in. lb.). See Figure 8-66.
Figure 8-66. Installing Solenoid Screws.
14. Connect the positive brush lead/bracket to the
solenoid and secure with the hex. nut. Torque the
nut to 6-9 N·m (53-79 in. lb.), do not overtighten.
See Figure 8-67.
Figure 8-67. Positive Brush Lead Connection.
Completed Starter Photo
Figure 8-68. Delco-Remy Solenoid Shift Starter.
