Kolida K20s User Manual

K20s
- 35 -

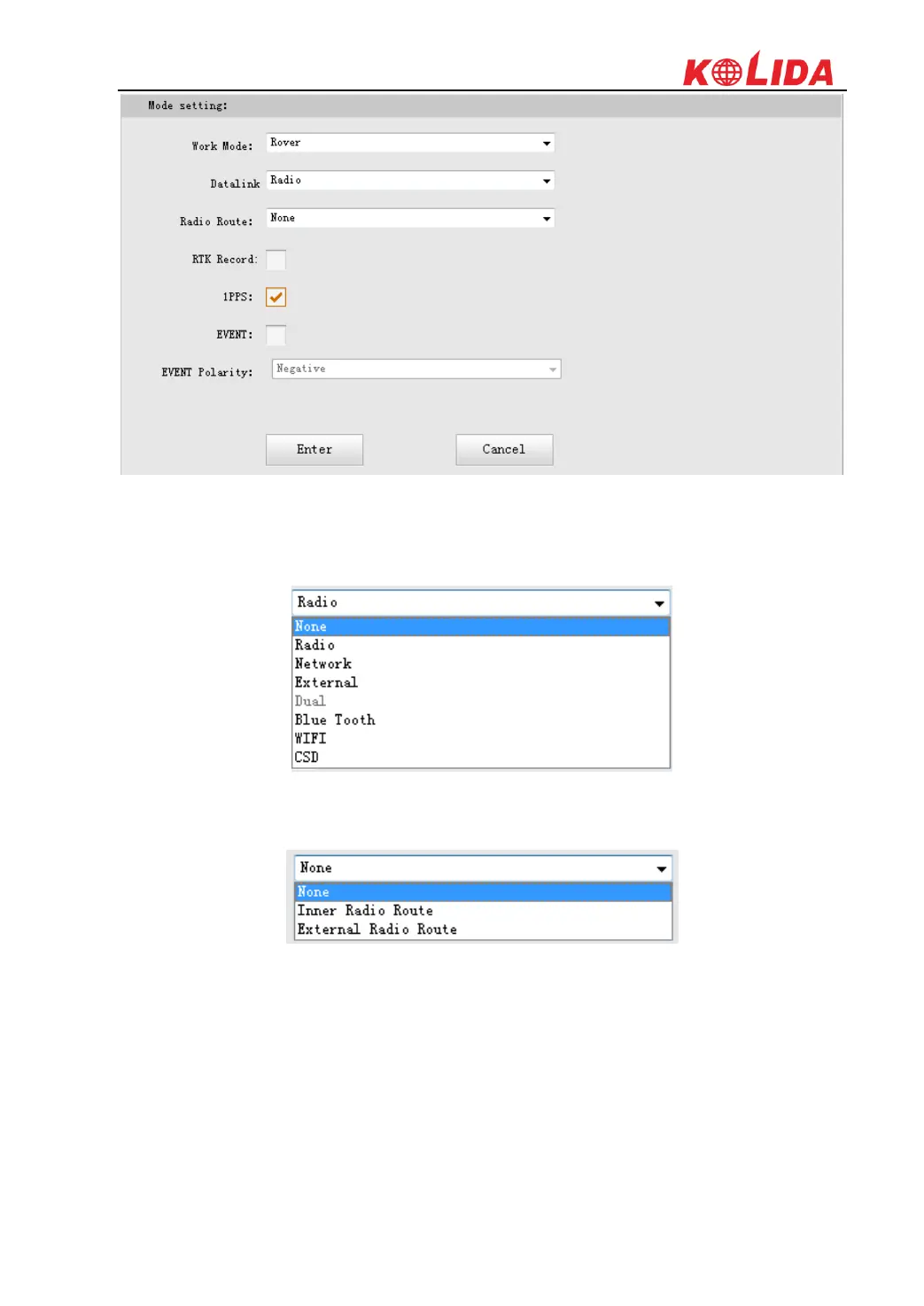

Work Mode: There are Rover, Base and Static contained in this dropdown list
Datalink: In the list, we have multible datalink options such as Radio, Network, External,
Bluetooth and WIFI.
Radio Route: This function enables K20s to connect to reference station by network and
transfer reference station's differential corrections to other receivers by radio.
RTK Record: This is used to enable raw data recording in base mode or rover mode for
post-processing
1 PPS: This option is for the 1 pulse per second output
EVENT: This option is for the EVENT marker input
EVENT Polarity: EVENT input method.
Base Setup
When K20s works as a base, the basic configuration for base can be setup in this page. Users can
input the correct coordinates or capture a current position for the base. Also users can define

Kolida K20s Specifications

General

Brand	Kolida
Model	K20s
Category	Measuring Instruments
Language	English
