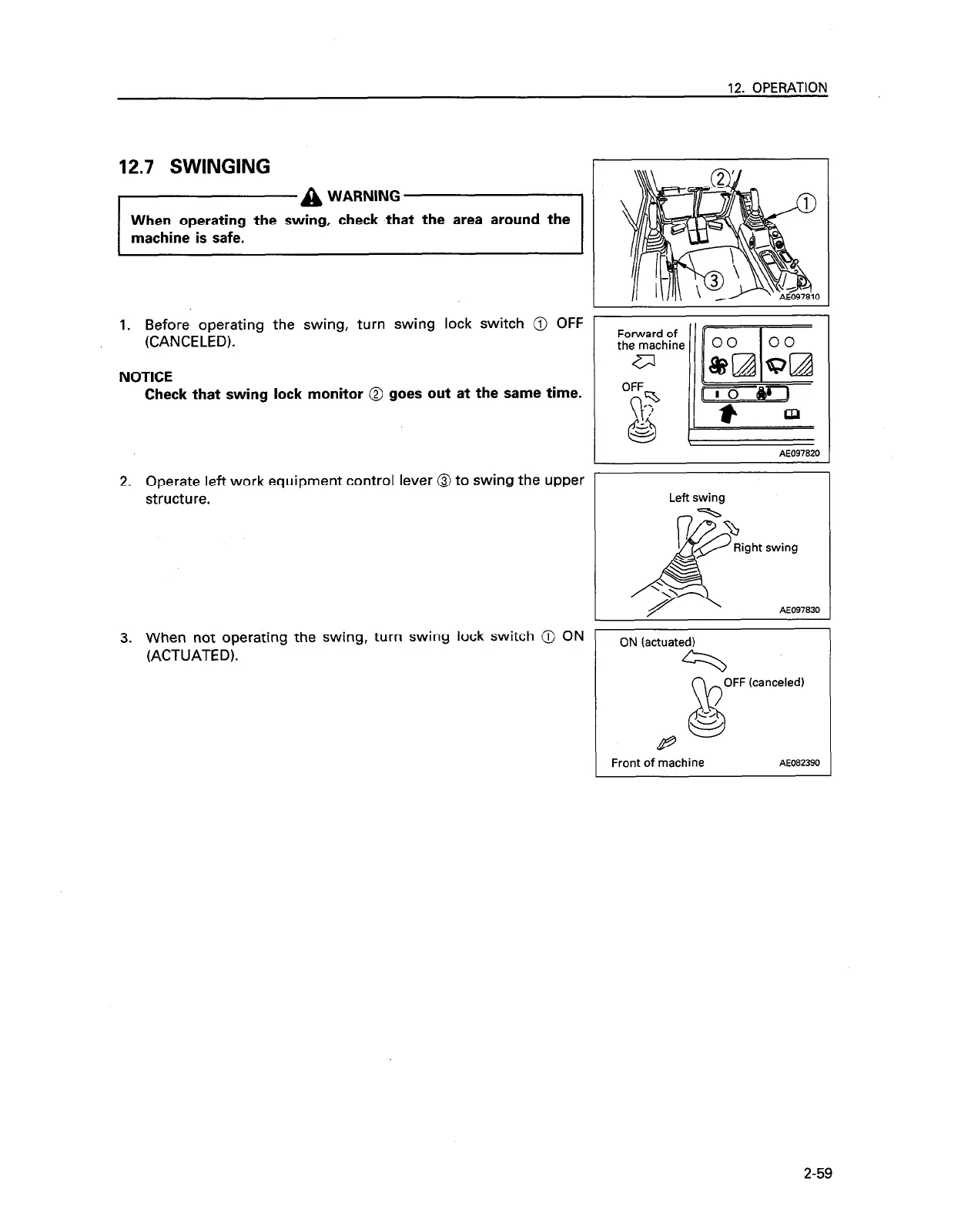

12.7 SWINGING
A
WARNING
When operating the swing, check that the area around the
machine is safe.
1. Before operating the swing, turn swing lock switch @ OFF
(CANCELED).
NOTICE
Check that swing lock monitor @ goes out at the same time.
AE097820
2. Operate left work equipment control lever @to swing the upper
structure.
Left swing
ight swing
AE097830
3. When not operating the swing, turn swing lock switch @ ON
(ACTUATED).
ON (actuated)
OFF (canceled)
Front of machine AE082390
2-59
