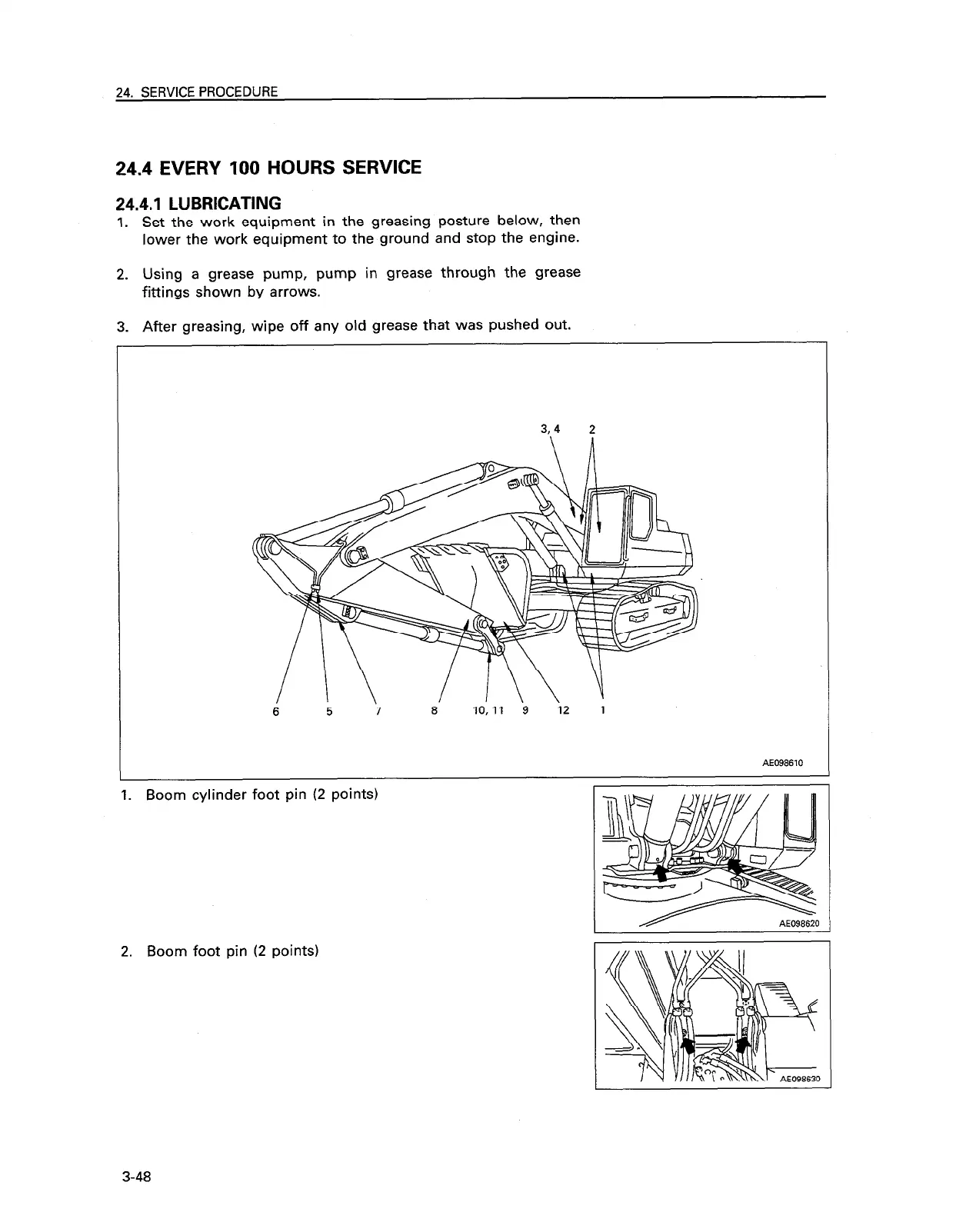

24. SERVICE PROCEDURE
24.4 EVERY 100 HOURS SERVICE
24.4.1 LUBRICATING
1. Set the work equipment in the greasing posture below, then
lower the work equipment to the ground and stop the engine.
2. Using a grease pump, pump in grease through the grease
fittings shown by arrows.
3.
After greasing, wipe off any old grease that was pushed out.
AE098610
2. Boom foot pin (2 points)
1. Boom cylinder foot pin (2 points)
3-48
