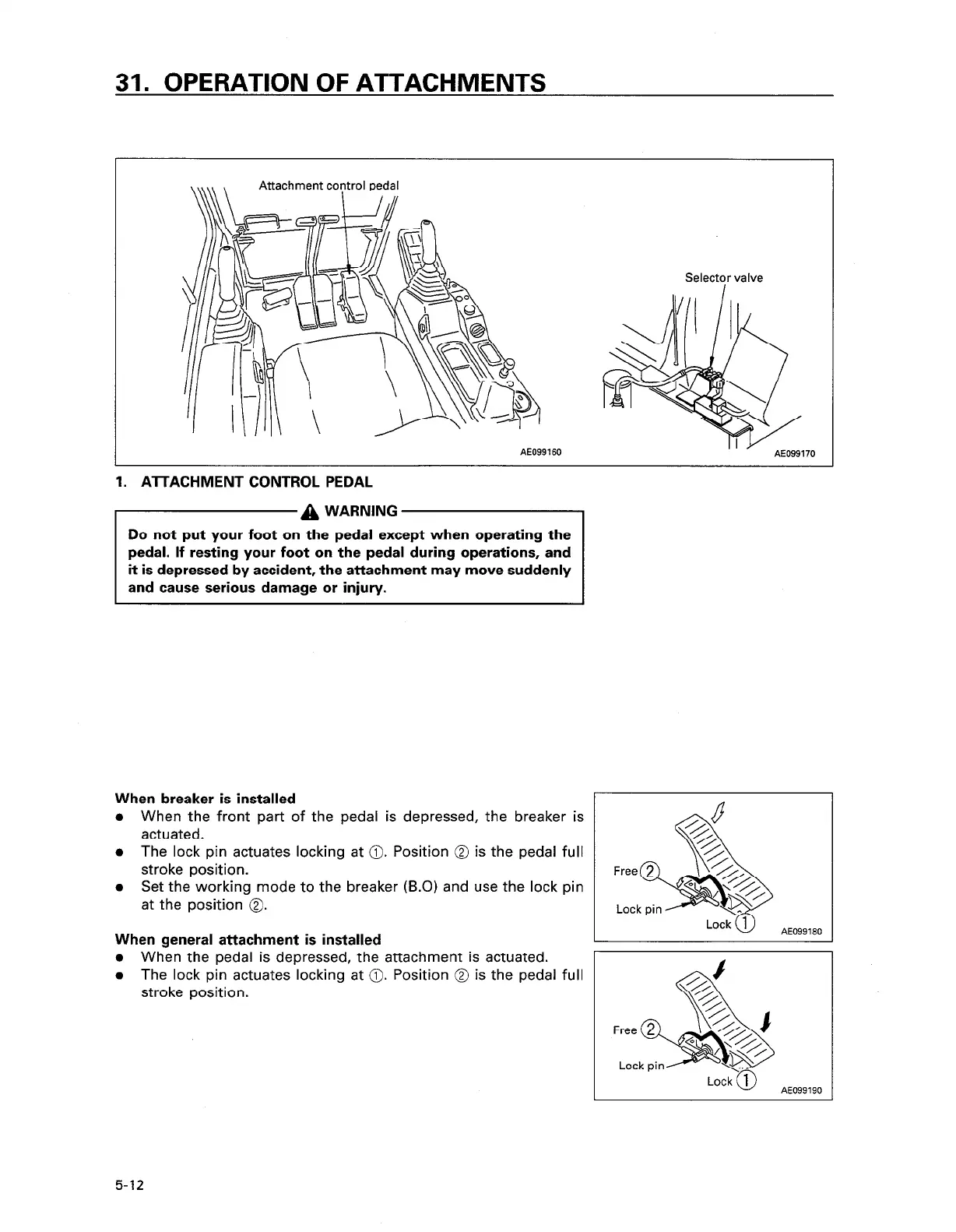

31. OPERATION OF ATTACHMENTS
AE099160
1. AlTACHMENT CONTROL PEDAL
Do not put your foot on the pedal except when operating the
during operations, and
it is depressed by accident, the attachment may move suddenly
and cause serious damage or injury.
When breaker is installed
l When the front part of the pedal is depressed, the breaker is
actuated.
l The lock pin actuates locking at 0. Position @ is the pedal full
stroke position.
l Set the working mode to the breaker (B.0) and use the lock pin
at the position 0.
When general attachment is installed
AE099160
l When the pedal is depressed, the attachment is actuated.
l The lock pin actuates locking at 0. Position @ is the pedal full
stroke position.
AEOSSlSO
5-12
