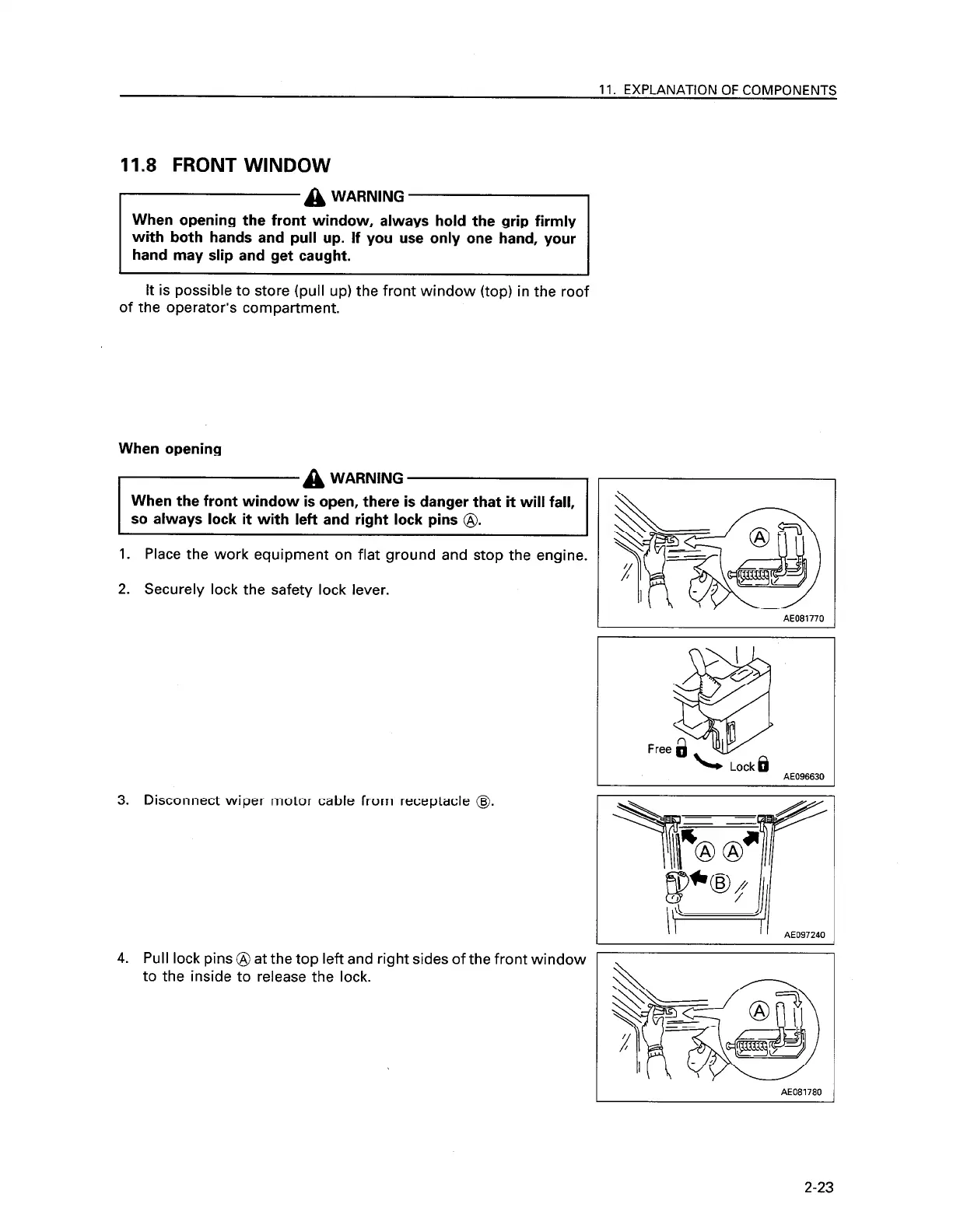

11. EXPLANATION OF COMPONENTS
11.8 FRONT WINDOW
Ah
WARNING
When opening the front window, always hold the grip firmly
with both hands and pull up. If you use only one hand, your
hand may slip and get caught.
It is possible to store (pull up) the front window (top) in the roof
of the operator’s compartment.
When opening
7 a WARNING.7
When the front window IS open, there IS danger that It WIII fall,
so always lock it with left and right lock pins @.
1. Place the work equipment on flat ground and stop the engine.
2. Securely lock the safety lock lever.
3. Disconnect wiper motor cable from receptacle @
4.
Pull lock pins
@
at the top left and
to the inside to release the lock.
sides of the front window
AE081770
Free
, 1 I I
AE097240
AE081780
2-23
