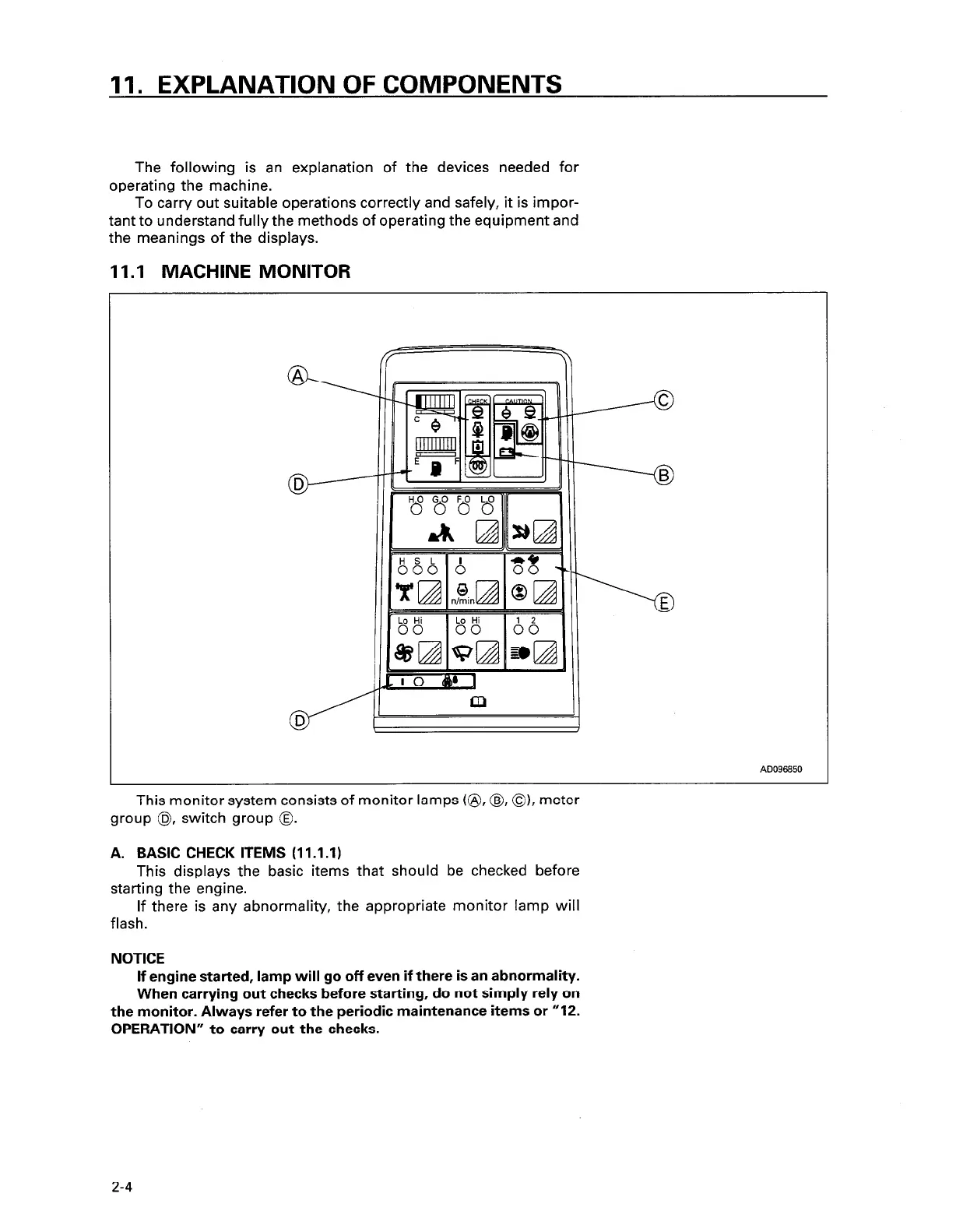

11. EXPLANATION OF COMPONENTS
The following is an explanation of the devices needed for
operating the machine.
To carry out suitable operations correctly and safely, it is impor-
tant to understand fully the methods of operating the equipment and
the meanings of the displays.
11 .I MACHINE MONITOR
AD095850
This monitor system consists of monitor lamps @, @, 01, meter
group @, switch group 0.
A. BASIC CHECK ITEMS (11.1.1)
This displays the basic items that should be checked before
starting the engine.
If there is any abnormality, the appropriate monitor lamp will
flash.
NOTICE
If engine started, lamp will go off even if there is an abnormality.
When carrying out checks before starting, do not simply rely on
the monitor. Always refer to the periodic maintenance items or “12.
OPERATION” to carry out the checks.
2-4
