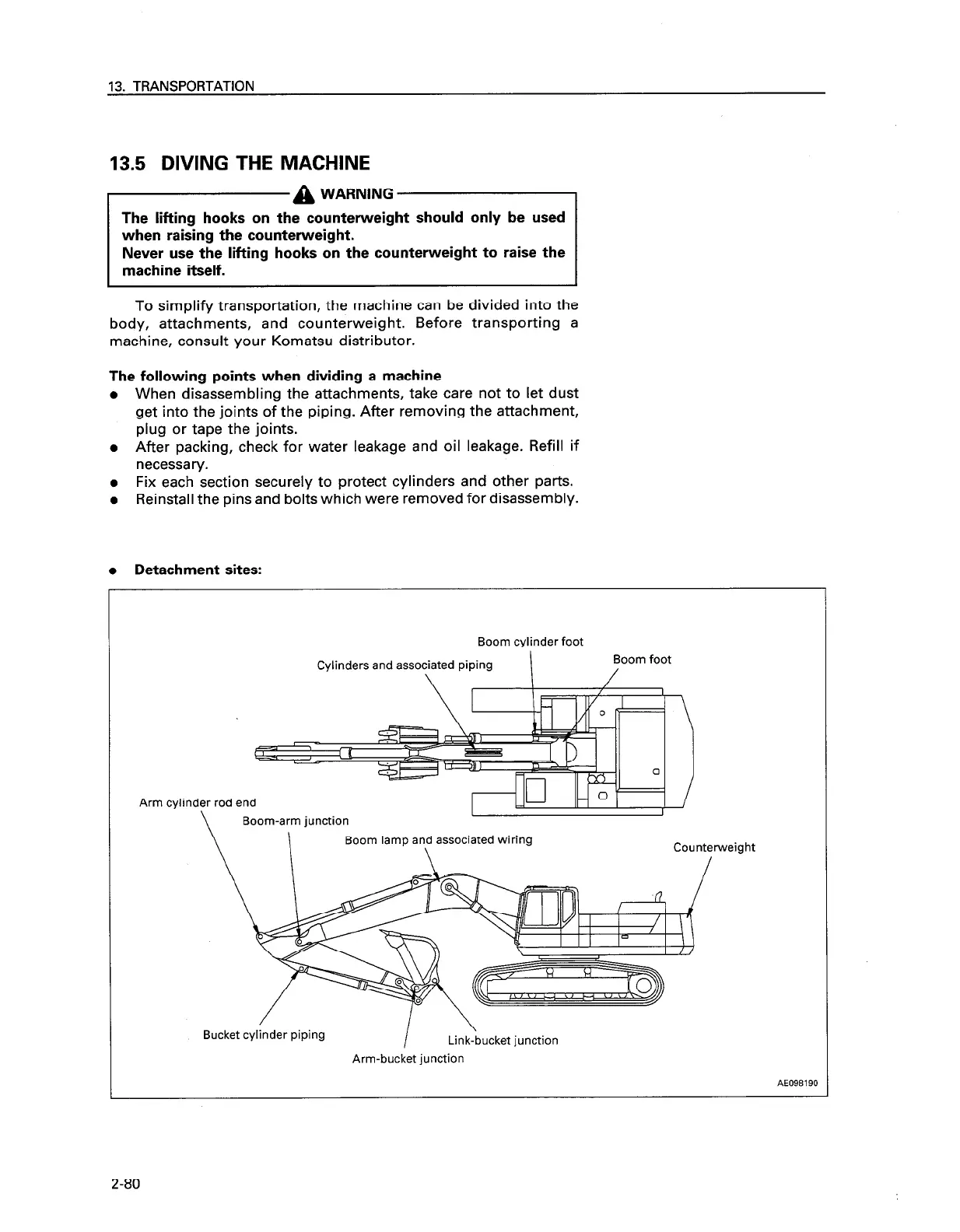

13.5 DIVING THE MACHINE
The lifting hooks on the countetweight should only be used
Never use the lifting hooks on the counterweight to raise the
To simplify transportation, the machine can be divided into the
body, attachments, and counterweight. Before transporting a
machine, consult your Komatsu distributor.
The following points when dividing a machine
l When disassembling the attachments, take care not to let dust
get into the joints of the piping. After removing the attachment,
plug or tape the joints.
l After packing, check for water leakage and oil leakage. Refill if
necessary.
l Fix each section securely to protect cylinders and other parts.
l Reinstall the pins and bolts which were removed for disassembly.
l Detachment sites:
Boom cylinder foot
Cylinders and associated piping
I
Boom foot
\
/
Arm cylinder rod end
\
Boom-arm junction
\ I
Boom lamp and associated wiring
Pn.,n+.-.,.“.a;“k+
Bucket cylinder piping
Link-bucket junction
Arm-bucket junction
AE098190
2-80
