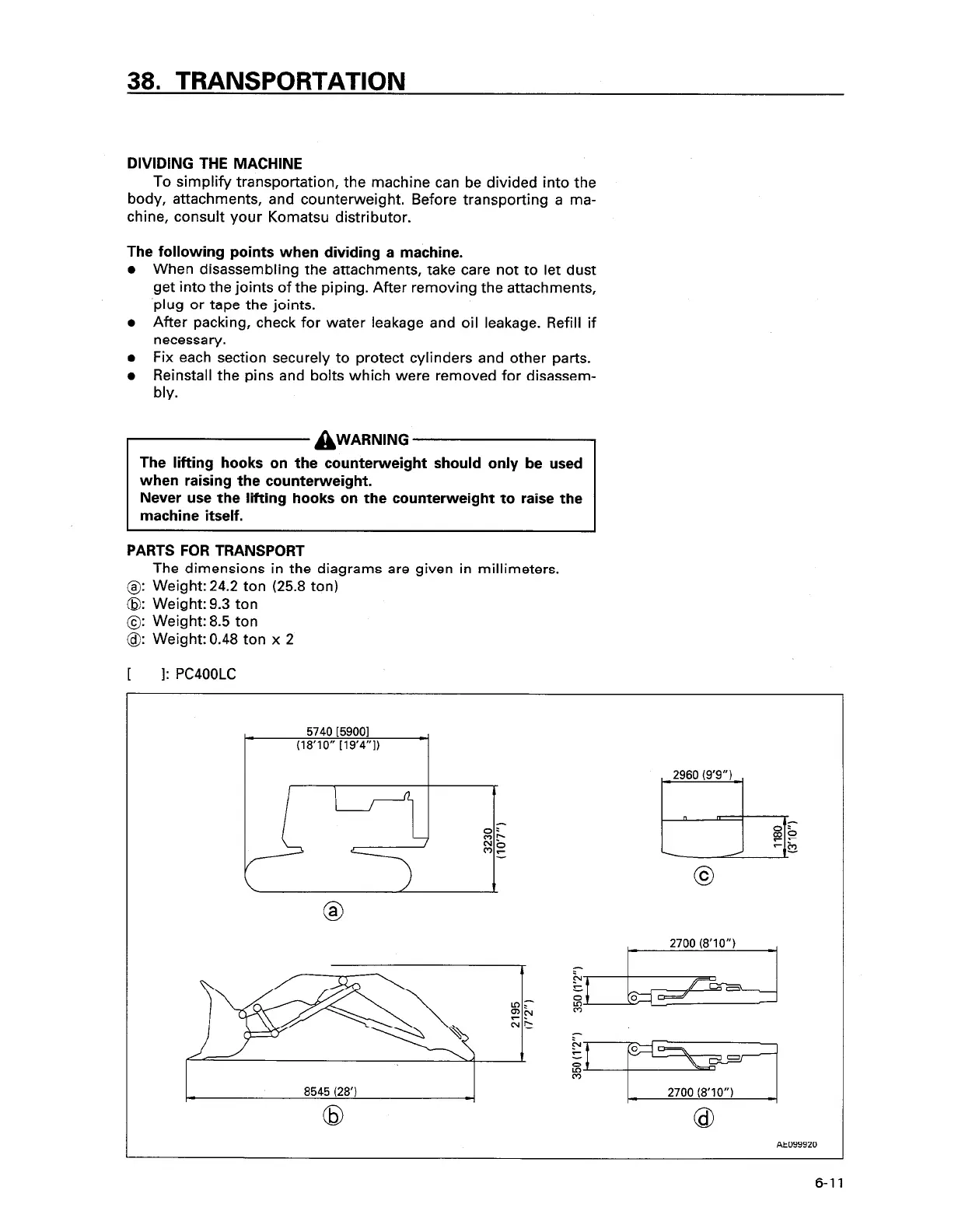

38. TRANSPORTATION
DIVIDING THE MACHINE
To simplify transportation, the machine can be divided into the
body, attachments, and counterweight. Before transporting a ma-
chine, consult your Komatsu distributor.
The following points when dividing a machine.
l When disassembling the attachments, take care not to let dust
get into the joints of the piping. After removing the attachments,
plug or tape the joints.
l After packing, check for water leakage and oil leakage. Refill if
necessary.
l Fix each section securely to protect cylinders and other parts.
l Reinstall the pins and bolts which were removed for disassem-
bly.
g
WARNING
The lifting hooks on the counterweight should only be used
when raising the counterweight.
Never use the lifting hooks on the counterweight to raise the
machine itself.
PARTS FOR TRANSPORT
The dimensions in the diagrams are given in millimeters.
0: Weight:24.2 ton (25.8 ton)
@: Weight: 9.3 ton
0: Weight: 8.5 ton
@: Weight: 0.48 ton x 2
[
1: PC400LC
2700 (8'10")
-I
I-
2700 (8'10")
--I
AE099920
6-11
