Komatsu PC400 - Selection of Track Shoes

32. INTRODUCTION OF ATTACHMENTS

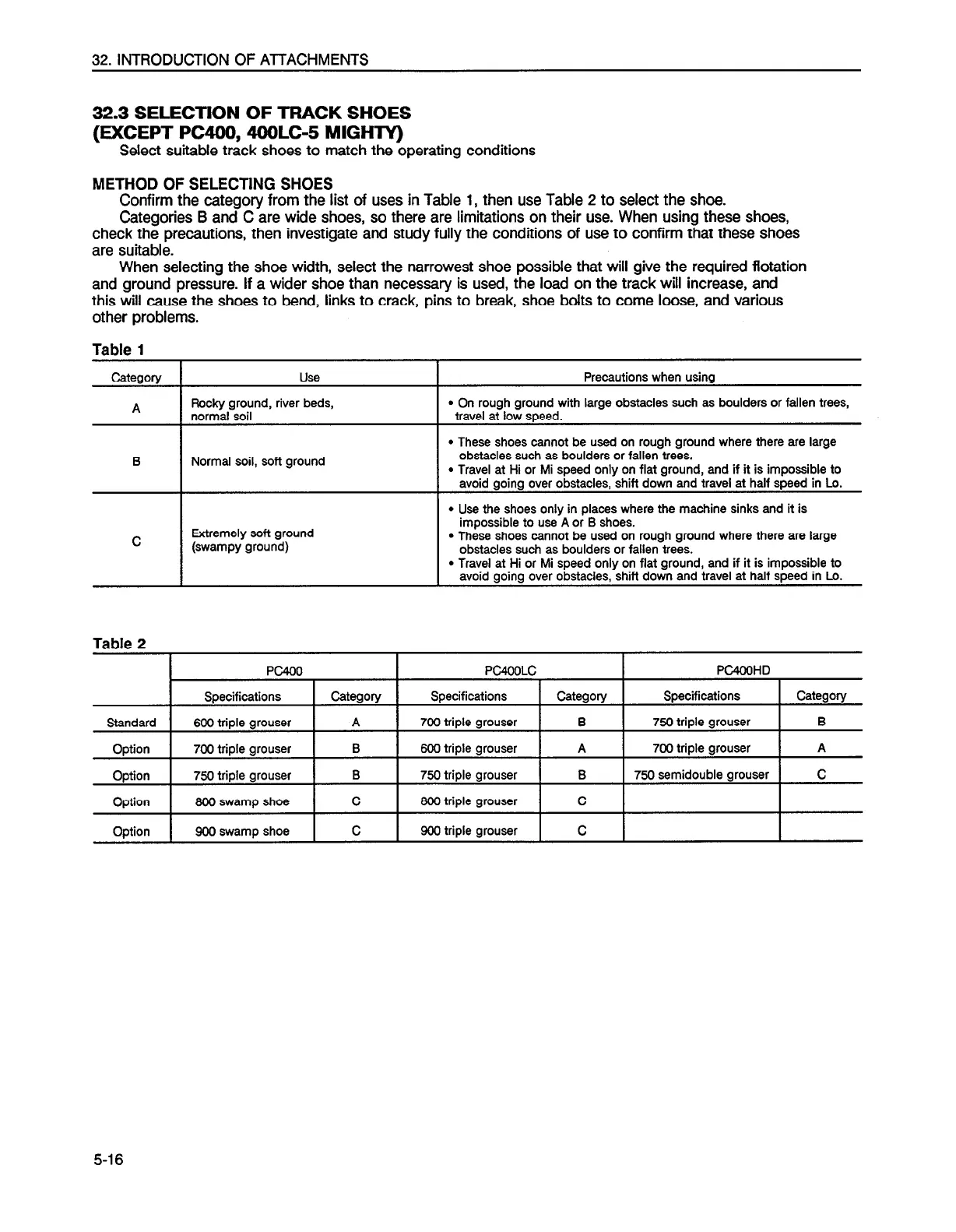

32.3 SELECTION OF TRACK SHOES
(EXCEPT PC400,4OOLC-5 MIGHTY)
Select suitable track shoes to match the operating conditions
METHOD OF SELECTING SHOES
Confirm the category from the list of uses in Table 1, then use Table 2 to select the shoe.
Categories B and C are wide shoes, so there are limitations on their use. When using these shoes,
check the precautions, then investigate and study fully the conditions of use to confirm that these shoes
are suitable.
When selecting the shoe width, select the narrowest shoe possible that will give the required flotation
and ground pressure. If a wider shoe than necessary is used, the load on the track will increase, and
this will cause the shoes to bend, links to crack, pins to break, shoe bolts to come loose, and various
other problems.
Table 1
Category
A
0
C
Table 2
Use
Pocky ground, river beds,
l On rough ground with large obstacles such as boulders or fallen trees,
normal soil
travel at low speed.
Normal soil, soft ground
l These shoes cannot be used on rough ground where there are large
obstacles such as boulders or fallen trees.
l Travel at Hi or Mi speed only on flat ground, and if it is impossible to
avoid going over obstacles, shift down and travel at half speed in Lo.
Extremely soft ground
(swampy ground)
Precautions when using
l Use the shoes only in places where the machine sinks and it is
impossible to use A or B shoes.
l These shoes cannot be used on rough ground where there are large
obstacles such as boulders or fallen trees.
l Travel at Hi or Mi speed only on flat ground, and if it is impossible to
avoid going over obstacles, shift down and travel at half speed in Lo.
Standard
PC400
Specifications
600 triple grouser
PC4OOLC
P(‘AOOHD
Category
Specifications
Category
Specifications
Category
A 700 triple grouser 6
766 triple grouser B
Option 700 triple grouser
B 600 triple grouser A
700 triple grouser
A
I I I , I I
Option
Option
Option
750 triple grouser
800 swamp shoe
900 swamp shoe
B 750 triple grouser B
750 semidouble grouser
C
C
800 triple grouser
C
C
900 triple grouser
C
5-16
