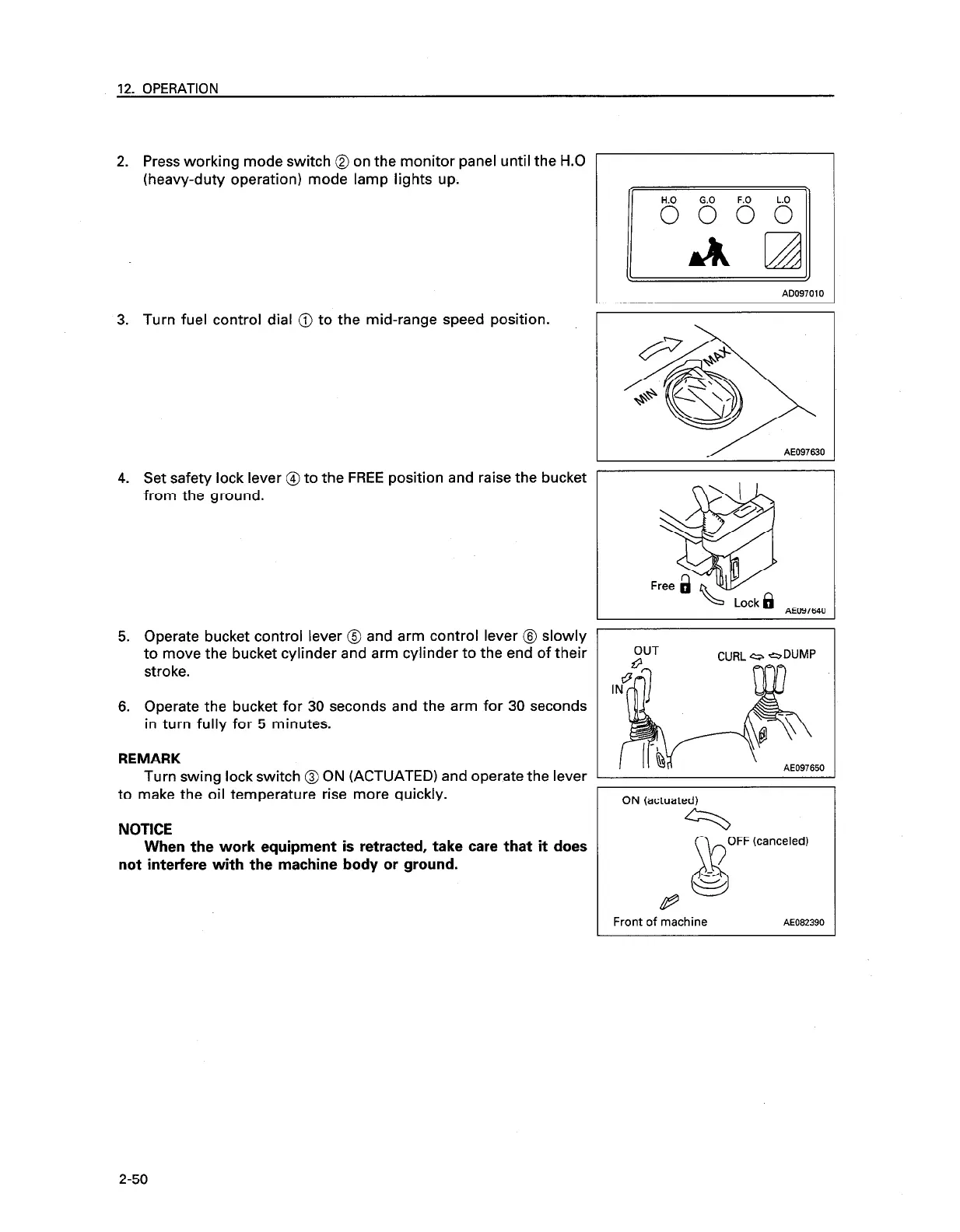

12. OPERATION
2.
3.
4.
5.
6.
Press working mode switch @ on the monitor panel until the H.0
(heavy-duty operation) mode lamp lights up.
AD097010
Turn fuel control dial @ to the mid-range speed position.
AE097630
Set safety lock lever @to the FREE position and raise the bucket
from the ground.
Operate bucket control lever @ and arm control lever @ slowly
to move the bucket cylinder and arm cylinder to the end of their
stroke.
Operate the bucket for 30 seconds and the arm for 30 seconds
in turn fully for 5 minutes.
AE097640
REMARK
\
Turn swing lock switch @ ON (ACTUATED) and operate the lever
AE097650
to make the oil temperature rise more quickly.
ON (actuated)
NOTICE
When the work equipment is retracted, take care that it does
OFF (canceled)
not interfere with the machine body or ground.
@
8
&
Front of machine
AE082390
2-50
