Conguration

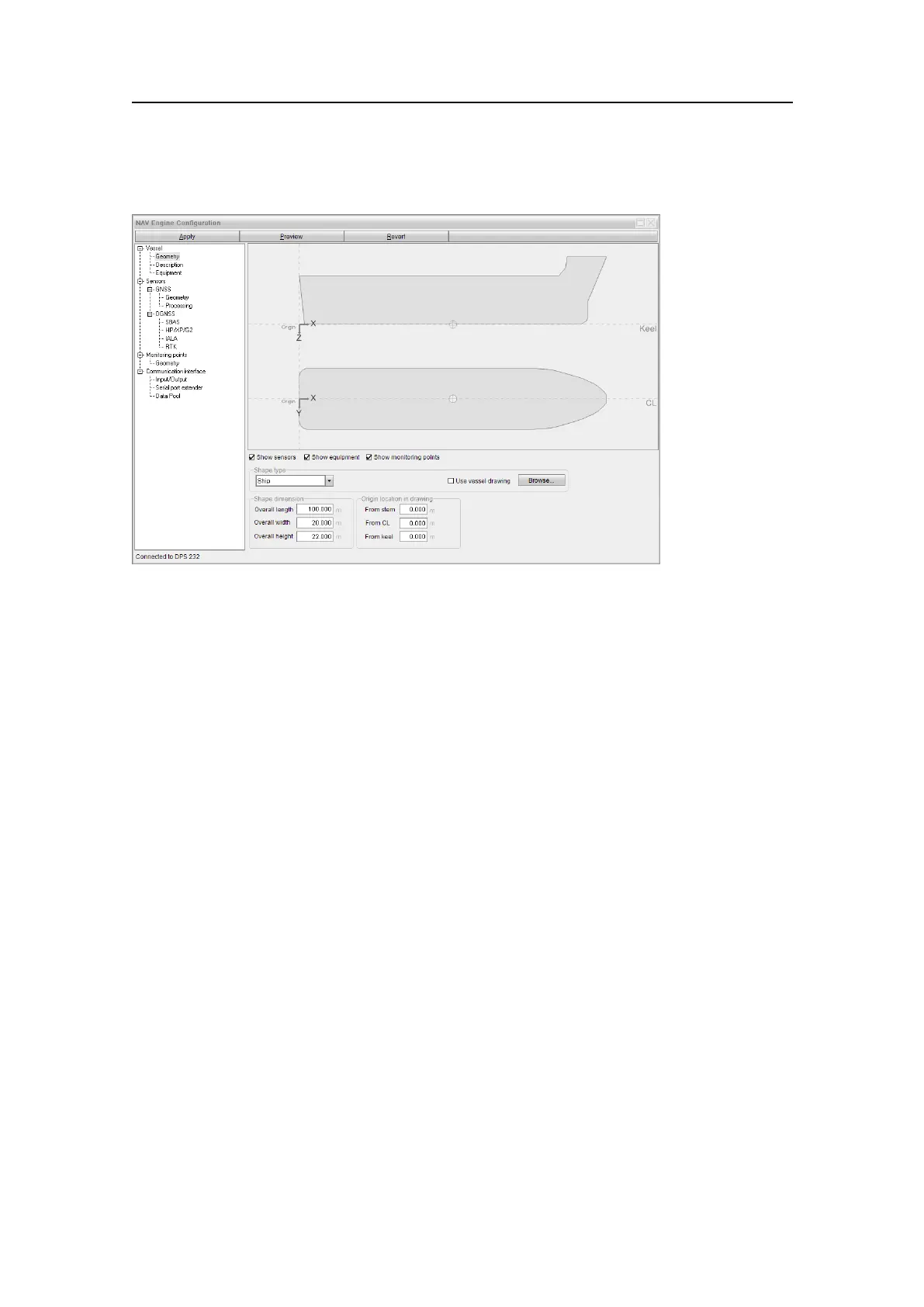

Figure15V esselgeometryview—defaultvesselshape
SelectthecheckboxesShowsensors,ShowequipmentorShowmonitoringpointsto
displayobjectsdenedinotherviews.
Shapetype
TheShapetypesectiondenestheshapeofthevesselhostingthesystem.Thelist
containssomegeneralshapeoutlines:Ship,Rig,Jackup(3leg)andJackup(4leg).
TheseareallscaledaccordingtothedimensionsgivenintheShapedimensionsection.
Thegeneralshapeoutlinecanbeoverriddenbyanactualshapedenedinadrawingle
(extension.svi—SeatexVesselImage).Thislecanbecreateoreditedinatexteditor.
SelecttheUsevesseldrawingcheckbox,andbrowseforthewanteddrawingleby
clickingtheBrowsebutton.Whenavaliddrawinglehasbeenloaded,thedimensions
aredenedbytheloadedshapeandtheShapedimensioneldsarelocked.
Shapedimensions
IntheShapedimensionssectionitispossibletosetthefollowingparameters:
Overalllength
Theoveralllengthofthevessel,i.e.fromsterntobow.
Overallwidth
Theoverallwidthofthevessel[m].
Overallheight
Thedistancefromthehighestpointofthevesseltothekeel.
