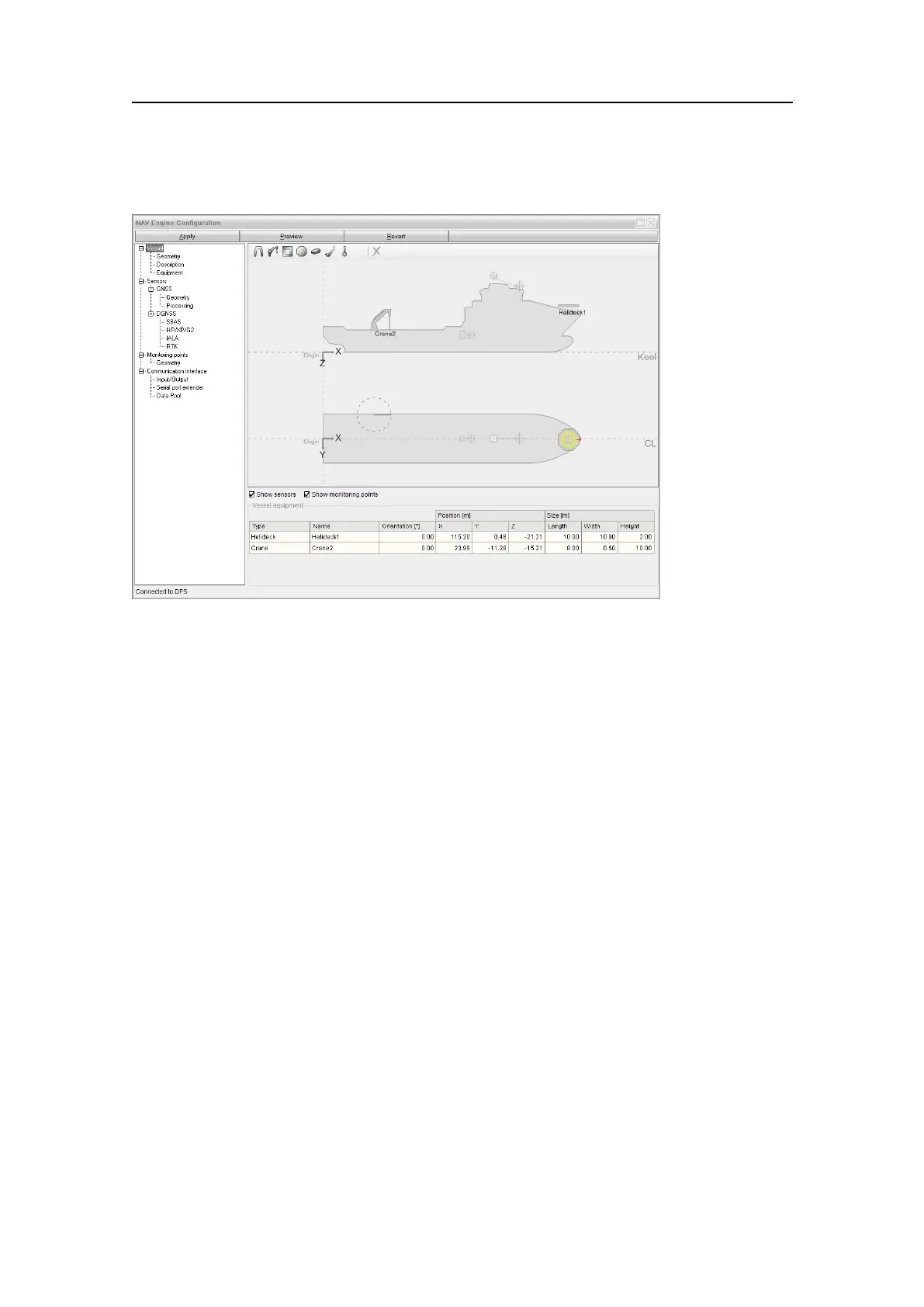

Figure21Sampleequipmentview
5.5Sensorsconguration
5.5.1GNSSgeometry
TheleverarmvectorfromtheOrigintotheGNSSantennahastobemeasuredor
calculatedbasedupondrawingsorpreviouslymeasuredpoints,andenteredintothe
conguration.
Howtosetupantennalocation
1SettheantennalocationcoordinatesfortheGNSSantenna.
2Checkthattheantennahasbeenlocatedontheexpectedspotinthevesselshape.
Ifnot,checkthesignsandtheco-ordinatesenteredfortheGNSSantenna,the
vesseldimensionsandtheenteredlocationofOrigin.
