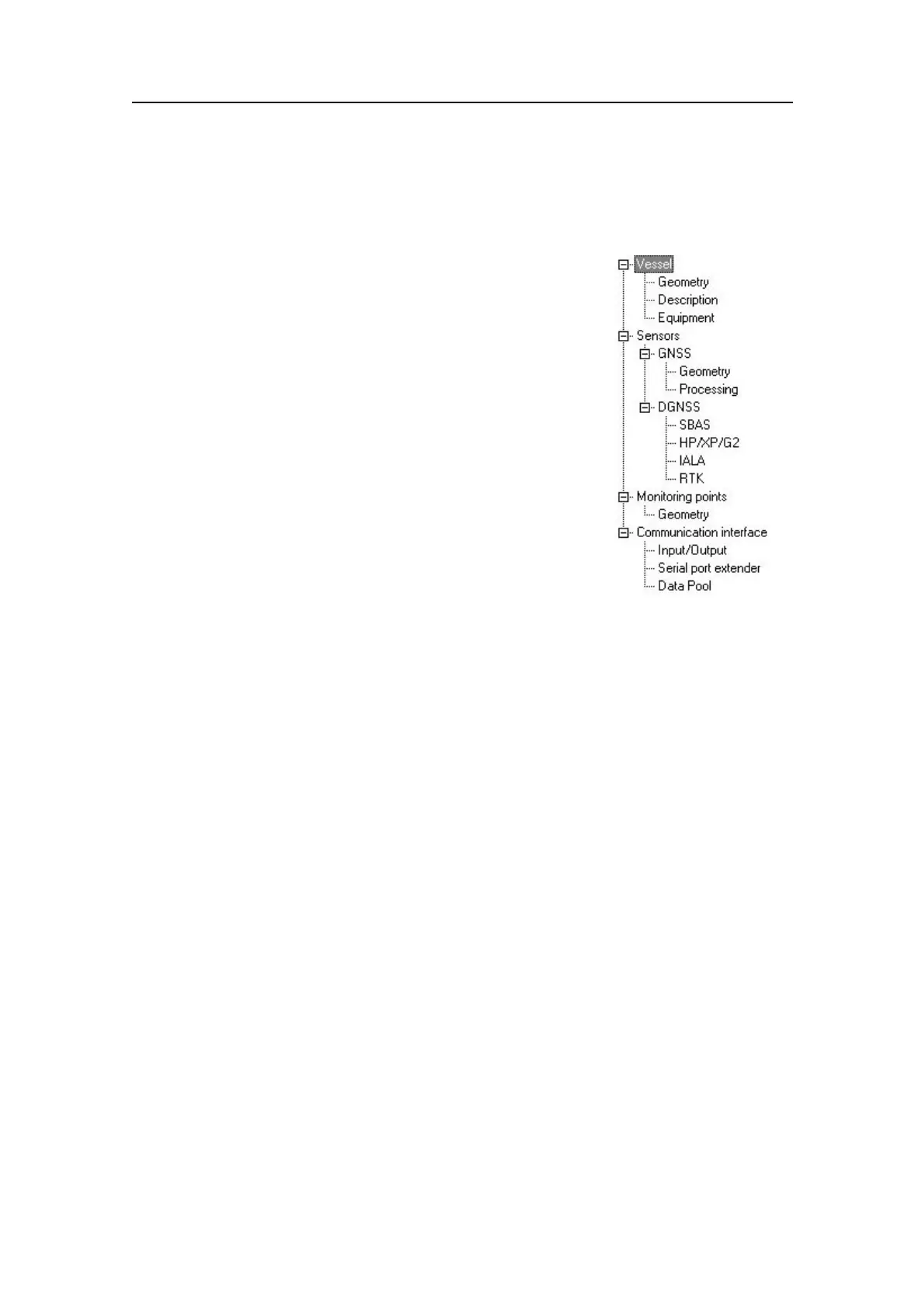

Figure
14Conguration
manager
ThefollowingparameterscanbesetintheStandard
conguration:
•Vesselgeometry,descriptionandequipment
•Sensordata,including:
–GNSSgeometryandprocessing
–DGNSS,SBAS,HP/XP/G2andIALAandRTK
•Monitoringpointsgeometry
•Communicationinterface,including:
–Input/Output
–Serialportextender
–Datapool
Theseparametersaredescribedindetailinthefollowing
sections.
5.4Vesselconguration
Vesselcongurationconsistsofthreeviews:Geometry,DescriptionandEquipment.
5.4.1Vesselgeometry
IntheVesselGeometryview,informationneededtospecifycorrectlocationofvarious
sensors,equipmentandmonitoringpointsonavesselisentered.Thedrawingiscorrectly
scaledbasedonthevesseldimensionstoensurecorrectindicationofthevariouspoints.
Theunitoftheenteredcoordinatesiseither[m]or[ft].
