KongsbergDPS232
•Broadcast
–Localinterface:TheLANportontheProcessingUnit.
–Port:Whenreceiving,thisistheportonwhichtheunitlistens.Whentransmitting,
thisistheporttowhichtheunitsends.

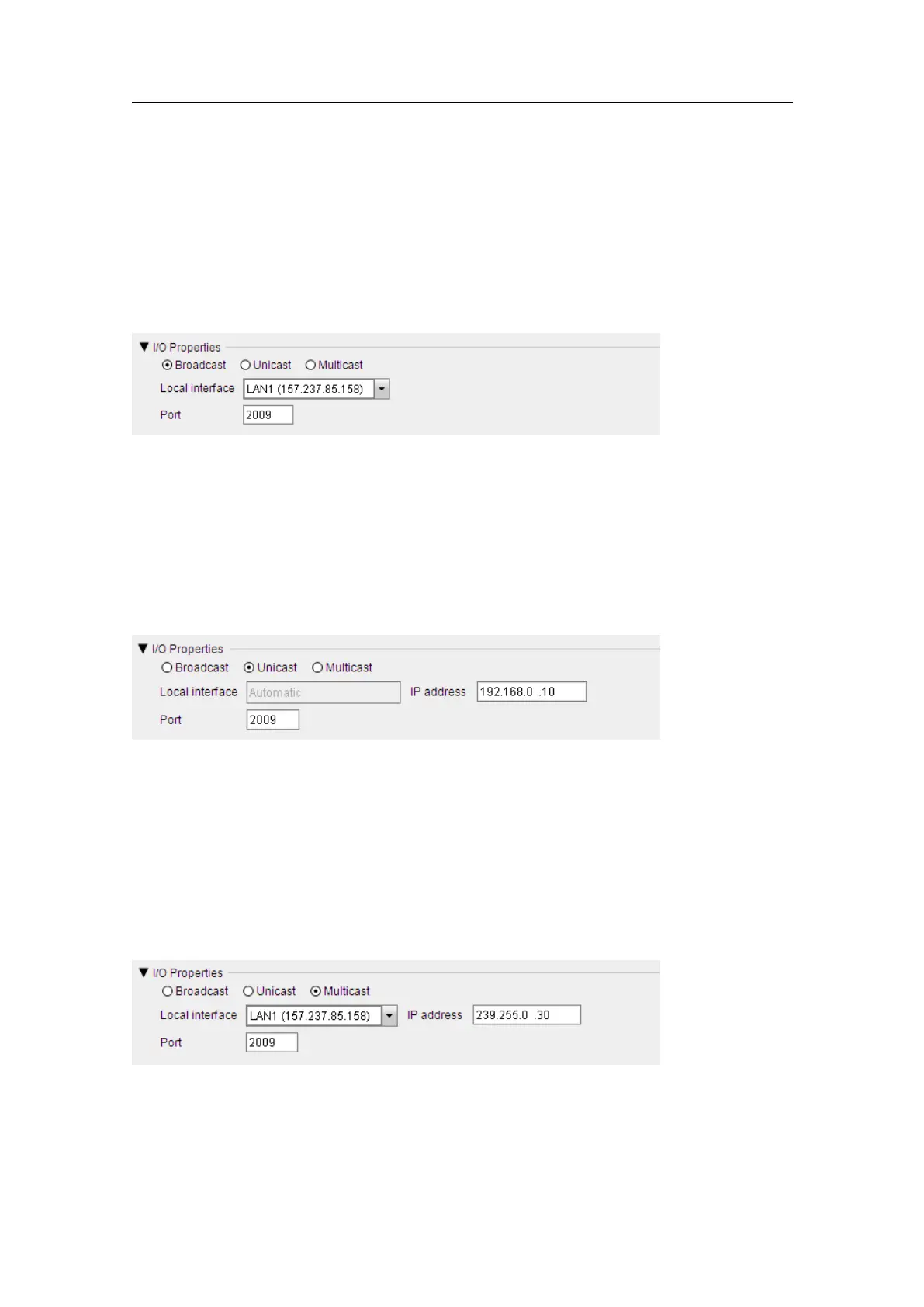

Figure37I/OPropertieswhenEthernetinterfaceandBroadcastareselected
•Unicast
–Localinterface:TheLANportontheProcessingUnit.
–IPaddress:ThetargetIPaddress,towhichtheunitisreceivingorsending.
–Port:Whenreceiving,thisistheportonwhichtheunitlistens.Whentransmitting,
thisistheporttowhichtheunitsends.
Figure38I/OpropertiesviewwhenEthernetinterfaceandUnicastareselected
•Multicast
–Localinterface:TheLANportontheProcessingUnit.
–IPaddress:Themulticastgroupaddress.Recommendedrange:239.255.000.000
-239.255.255.255
–Port:Whenreceiving,thisistheportonwhichtheunitlistens.Whentransmitting,
thisistheporttowhichtheunitsends.
Figure39I/OpropertieswhenEthernetinterfaceandMulticastareselected
5.7.3Telegramoutputinterface
WhentheInterfaceselectedissettoTelegramOut,theTelegramoutpropertiesviewis
enabledatthebottomoftheCongurationdetailsview.
