Conguration
5.7.2.2I/Opropertiesselection
TheparametersdisplayedintheI/OpropertiesviewsaredependentonwhatTypeof
interfaceisselectedintheCongurationdetailssections.
5.7.2.2.1Serialinterface
Thedefaultviewfortheserialportinterfaceisillustrated.ClickthearrownexttoI/O
Propertiessectiontohideorshowtheinformation.

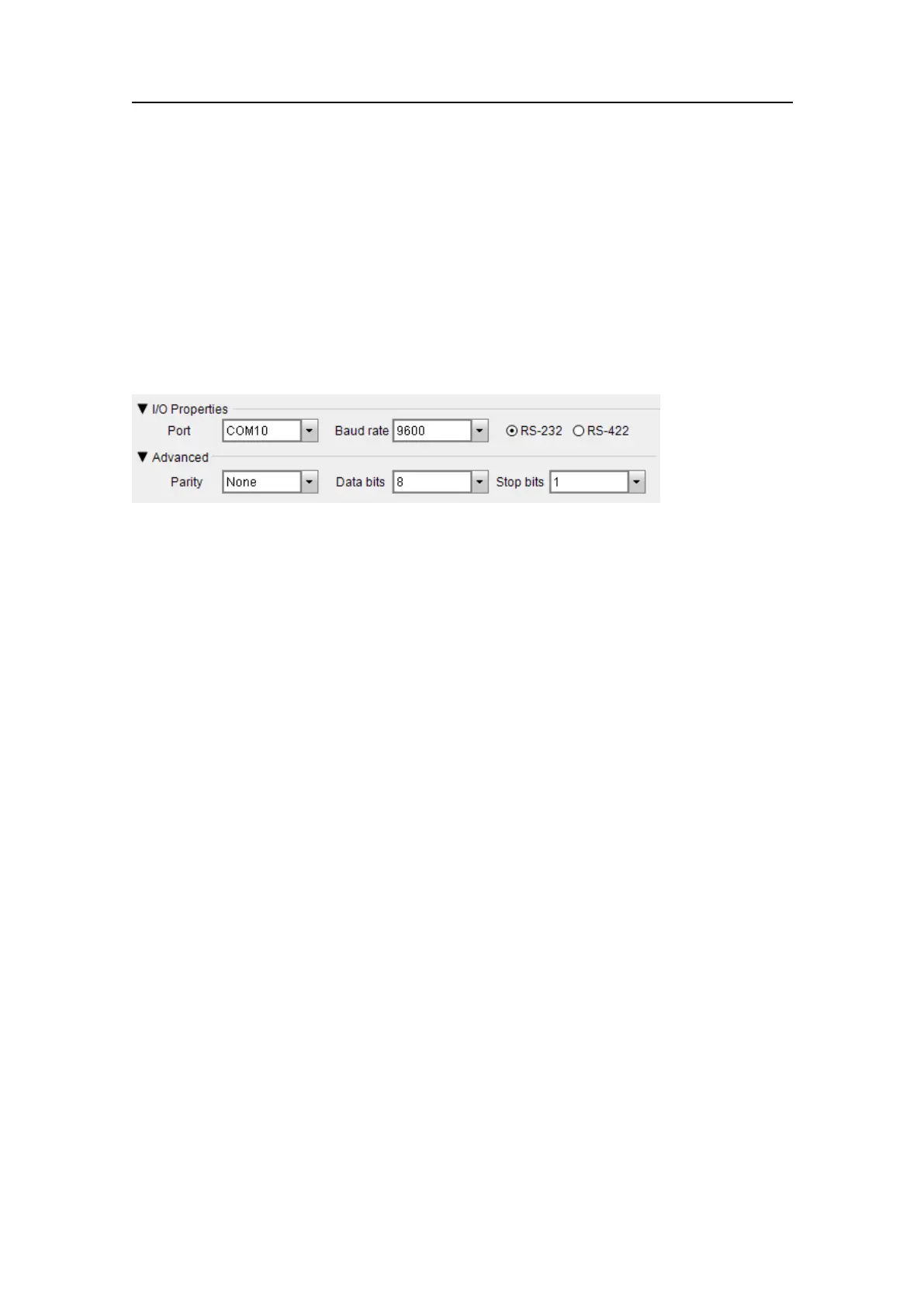

Figure36I/Opropertiesviewwhenserialinterfaceisselected
WhenSerialinterfaceisselected,theI/OPropertiesviewcontainsthefollowing
parameters:
Port
Serialportnumber.CorrespondstothenumberattherearoftheProcessingUnit.
Baudrate
Upto115200bits/second.
RS-232orRS-422
Electricalinterface.
UnderthecollapsibleAdvancedgroupbox,lessusedpropertiesareplaced:
Parity
None,OddorEven.
Databits
6,7or8.
Stopbits
1or2.
TheAdvancedfeaturesarenormallyhidden.Clickthearrowsymboltoshoworhide.
5.7.2.2.2Ethernetinterface
ThenetworkparameterssectionspecieshowtheProcessingUnitcommunicatesvia
theIP(Ethernet)network.WhenNetinterfaceisselected,theusercanselectbetween
Broadcast,UnicastorMulticast.
