Conguration

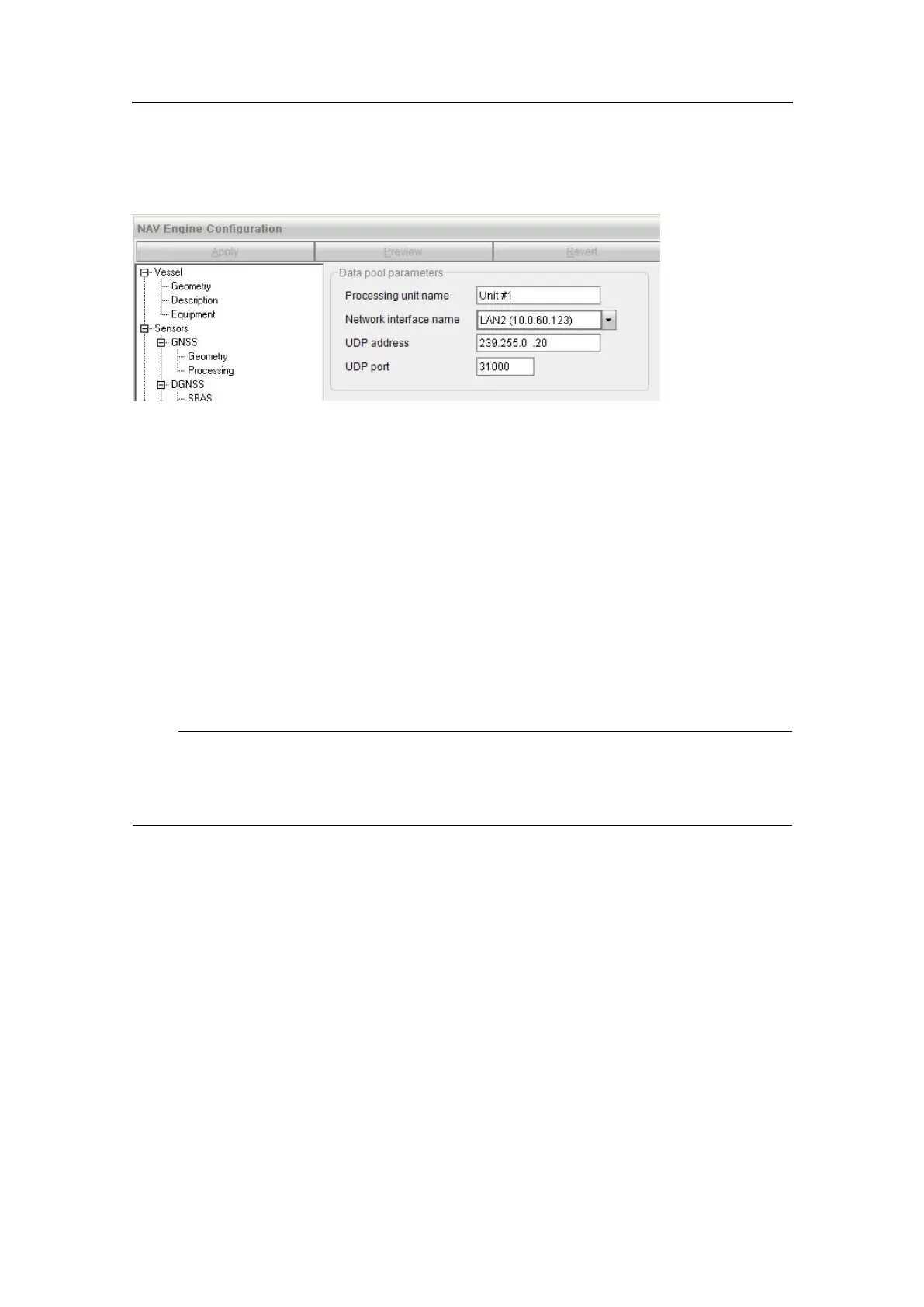

Figure49DataPoolcongurationview

Processingunitname

Identicationnamethatmaybechanged.

Networkinterfacename

TheLANportontheProcessingUnit.

UDPaddress

TheaddresstowhichtheNA VEngineshouldsenddata.

UDPport

TheporttowhichtheNAVEngineshouldsenddata.

Note

TheUDPaddressandUDPportenteredherehavetomatchtheAddressandPort

enteredintheDataSourcetabintheOperatorsoftwarecongurationtoensure

communicationbetweenNAVEngineandOperatorsoftware.

5.8AISinterface

AnetworkconnectiontoanAIStransponderorbasestationisrequiredtoshowAIS

targetsintheHMI.

ThirdpartyserialtoIPconvertersmaybeusedifonlyserialcommunicationissupported

bytheAISequipment.

TheUserManualdescribeshowtoconguretheoperatorsoftwareinordertodisplay

AIStargets.
