Conguration
Thesystemsupportstwotypesoftwodimensionaloutlines:sideview(towards
starboard)andtopview.
Thevesselimagelehastoobeythefollowingrequirements:
1ThevesseldatahavetobeinanASCIIlegeneratedbyExcel,Notepadorsimilar
tools.
2TheleheadincludesOveralllength(LOA),Overallwidth,Overallheightand
SterntoFrame0(AP)datainmetres.
3Prole(sideview)datainXandZcoordinatesinmetres,relatedtotheorigin.
Coordinatesarespeciedclockwisefromapointaftoftheorigin,andthelast
coordinatehastoequaltherstcoordinatetoformaclosedpolygon.
4ThetopviewdatainXandYcoordinatesinmetres.Therstcoordinatehas
tobeaftoftheoriginalongthecentreline.Successivecoordinatesarespecied
clockwise,andthelastcoordinatehastoequalthersttoformaclosedpolygon.
VesselimagelesmaybecreatedbyKongsbergSeatexASuponcustomerrequest.GA
drawingsorsimilarisrequiredtocreatevesselimageles.
Atypicalexampleofavesseldataleisillustrated.

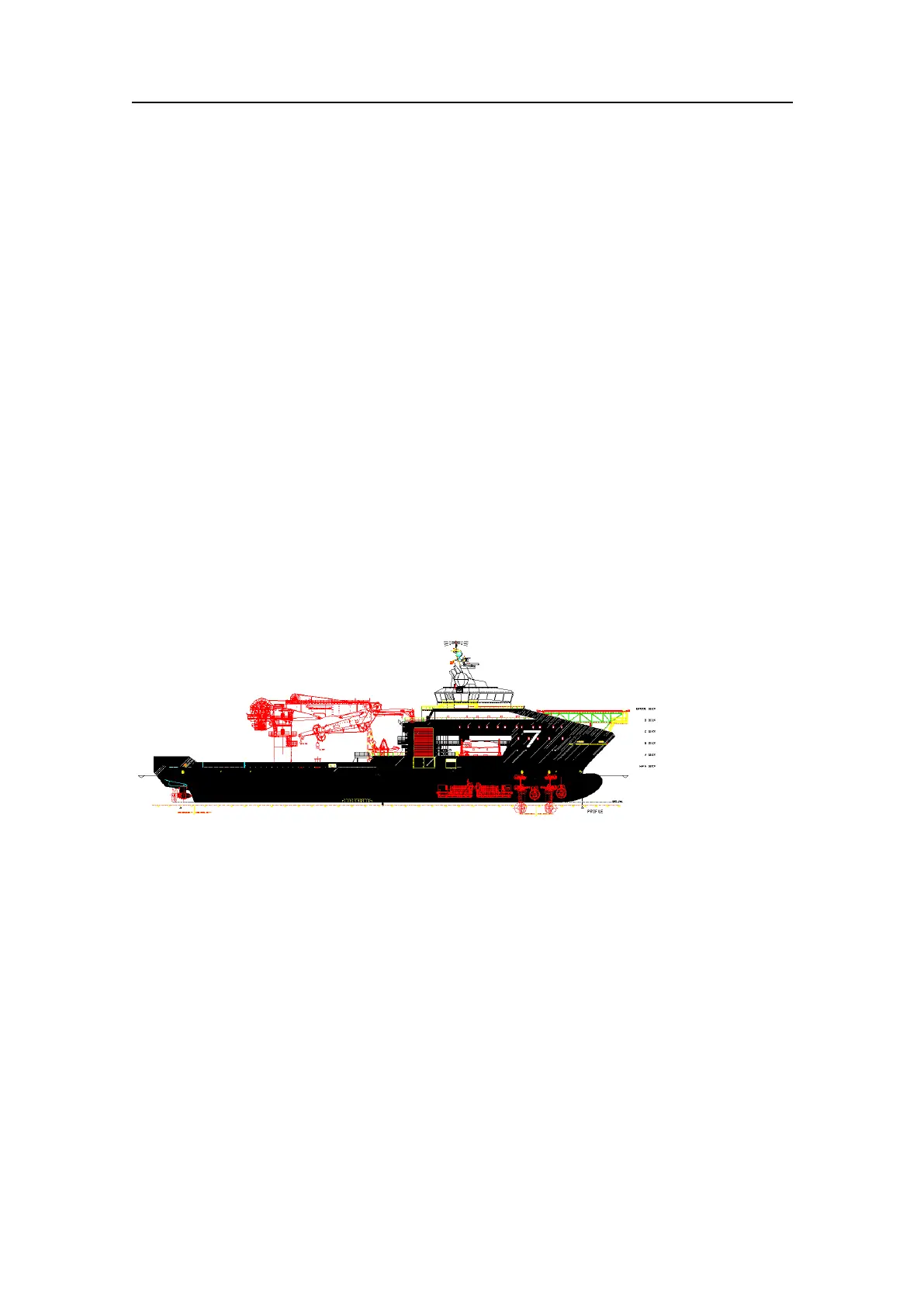

Figure17ExampleGAdrawingofmulti-purposevessel
